59

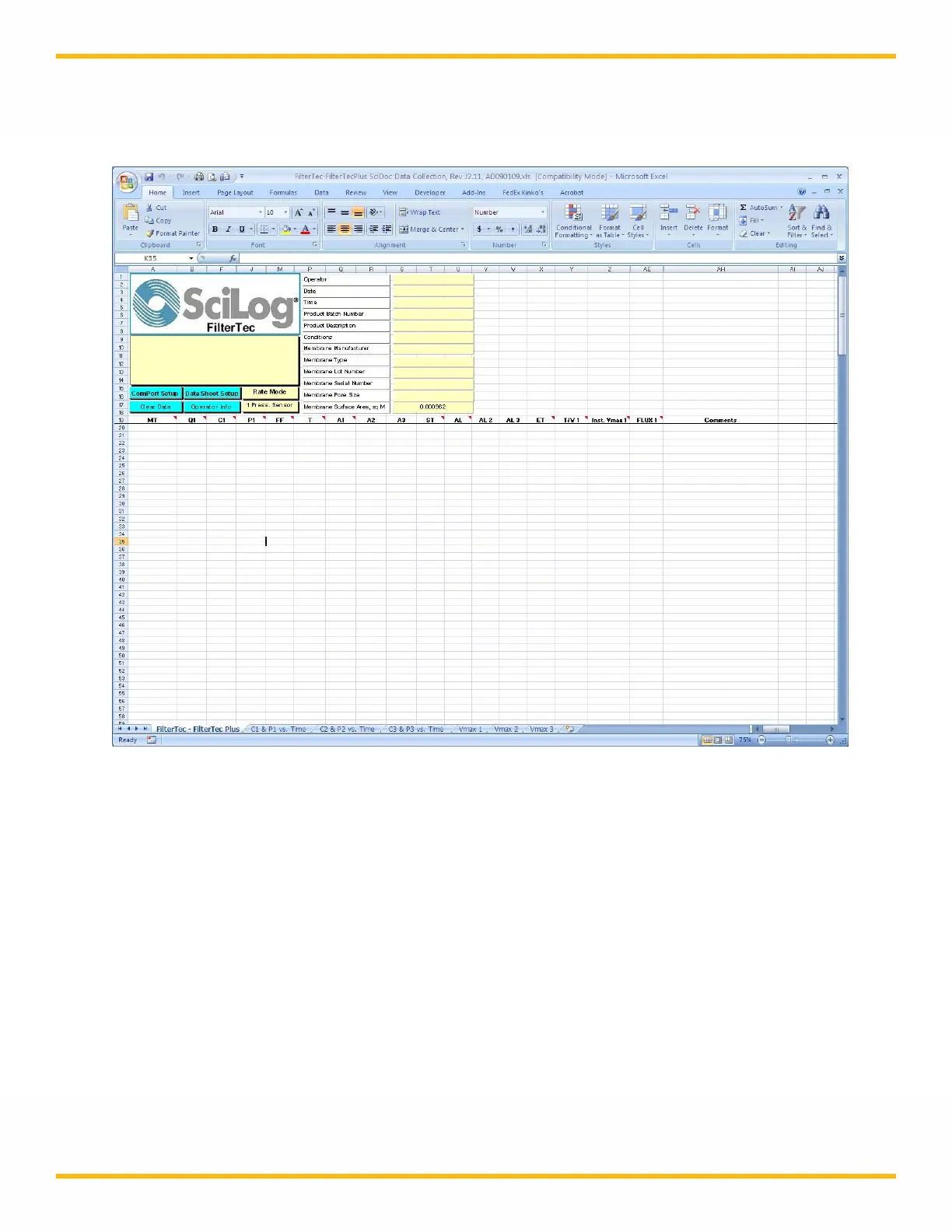

After pressing OK, the empty datasheet appears:
When ready, press EXEC on the FilterTec Plus, and then RUN after the balance has initialized.
The data generated will automatically be placed in the cells of the spreadsheet, and the charts
populated with the same data. The text box in the upper left of the spreadsheet contains the
header information that is generated by the FilterTec Plus. This will list the Operational Mode,
the date and time, all operating parameters, alarm settings and alarm limits.
The following charts are included for use, and they may be viewed by clicking on the
appropriate tab at the bottom of the worksheet:
Filtrate Flow Rate (FF) and Pressure vs. Time
Filtrate Flow Rate (FF) and Filter Quantity(FQ) vs. Time
Vmax, which is T/W (seconds/gram) vs. Time (elapsed time, seconds)
Other charts may be created, or the existing charts may be modified if needed.
