Parker SciLog FilterTec Plus User Manual

17

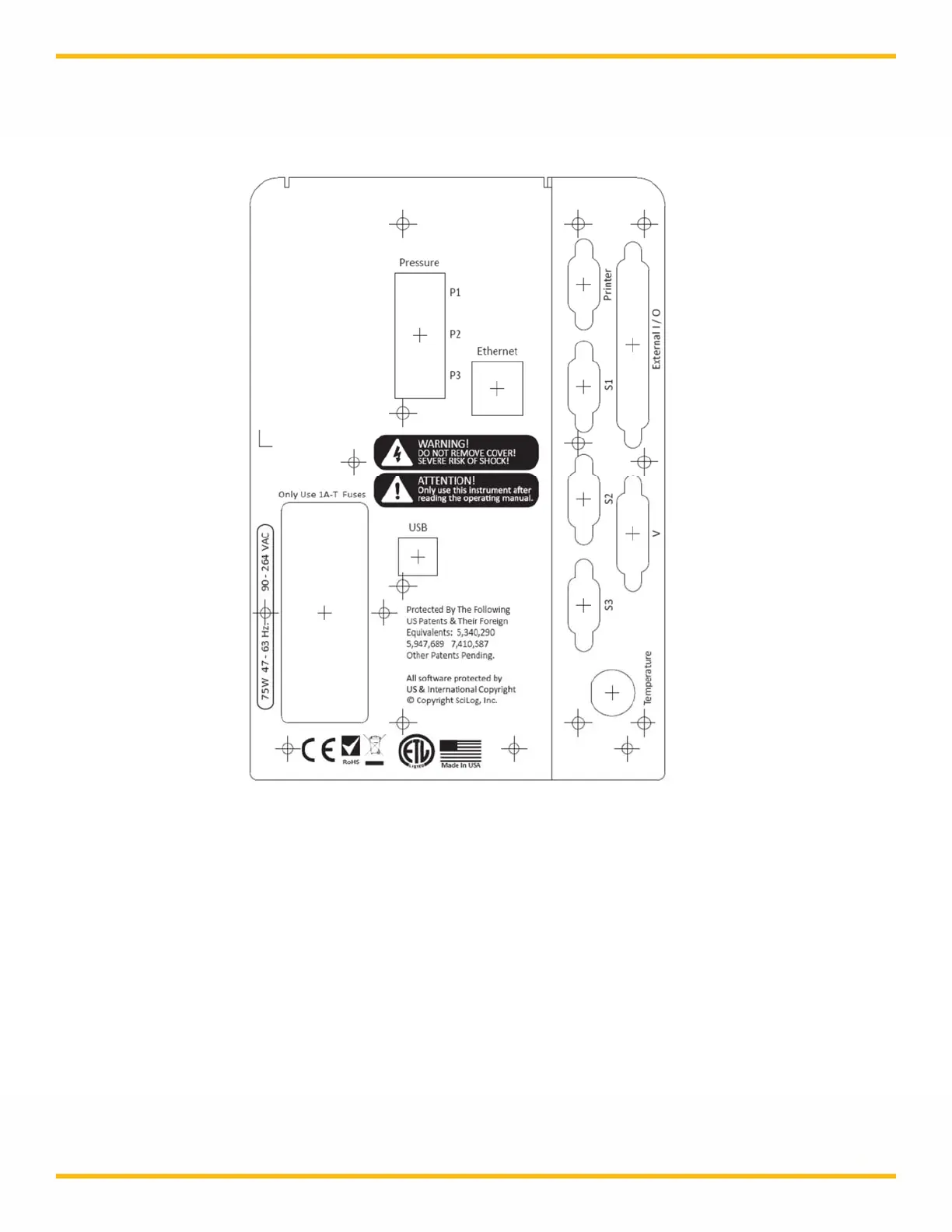

3.0 Back Panel: Interface Options
The FilterTec Plus back panel provides interfacing ports for:
 Printer Port: The FilterTec Plus can be connected to a PC for data collection or to a
Printer via the female DB9 RS-232 port labeled “Printer”. You need a Parker RS-232
cable (P/N 080-073) to connect to a PC for data archival, or a printer cable (080-096) to
make the connection between the printer and the FilterTec Plus.
 Electronic Balances: Male DB9, labeled “S1”, “S2” and “S3”.
 Foot Switch (P/N: 080-059): Male DB37, Labeled “External I/O”.
 SciPres Disposable Pressure Sensors: 3 RJ11 telephone jacks, one for each
pressure sensor. Labeled “P1, P2, P3”.
 SciTemp Disposable Temperature Sensor: Conxall 2 pin connector. Labeled
“Temperature”.
 Scale Ports: The male DB9 ports labeled “S1”, “S2” and “S3” are RS-232 ports for
electronic scales. These ports allow interface with a number of different electronic
scales: i.e. Mettler, Ohaus, and Sartorius top-loading scales. The following scale cables
are required:
