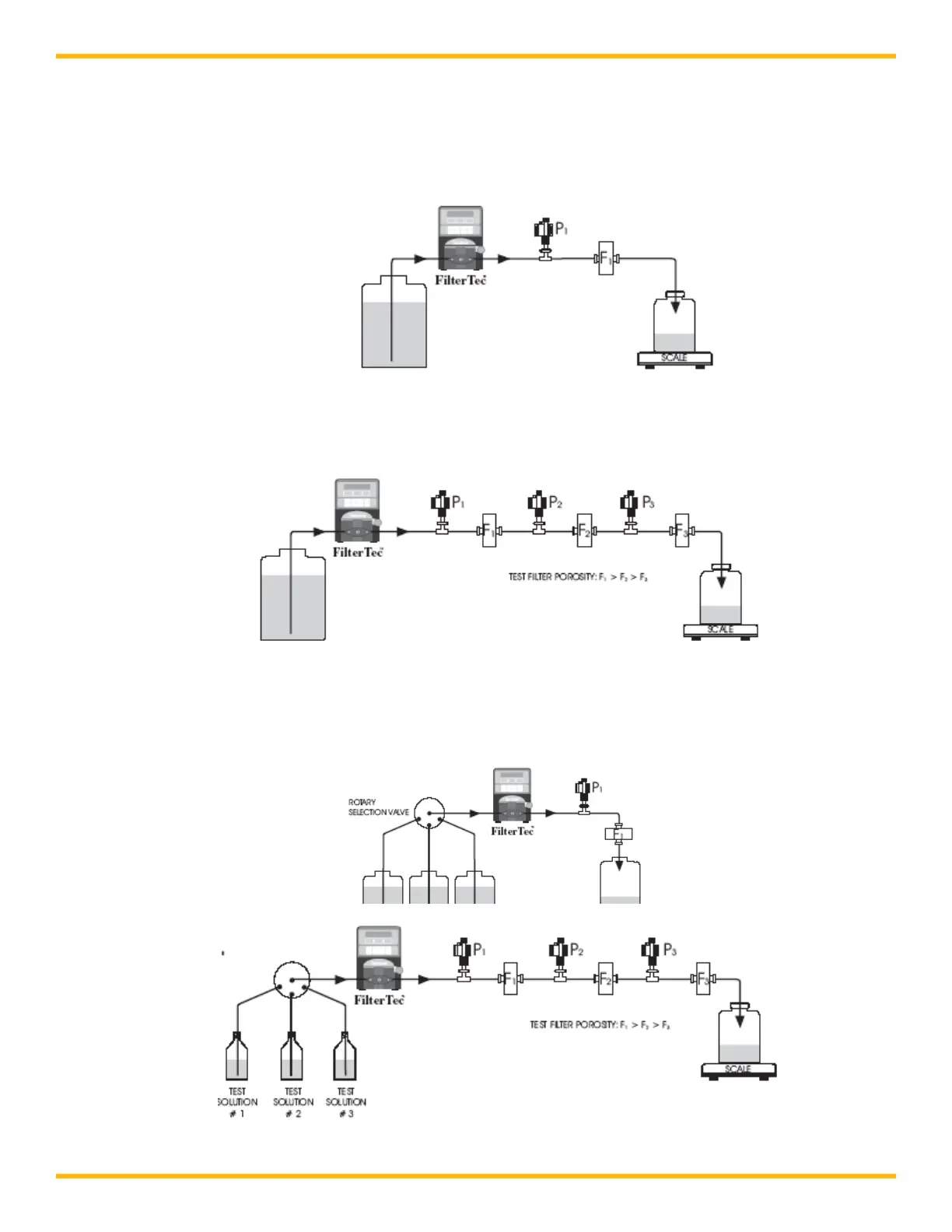

The following diagrams show the various configurations of the FilterTec Plus system.
This is the most common setup, using a single filter and pressure sensor.
This is the other common setup, for testing a filter-train, using 3 filters and 3 sensors in series.
These may be augmented by use of a 6-way Rotary Valve to change from one solution to
another in a programmed manner, using the Programmable R-P Mode.
