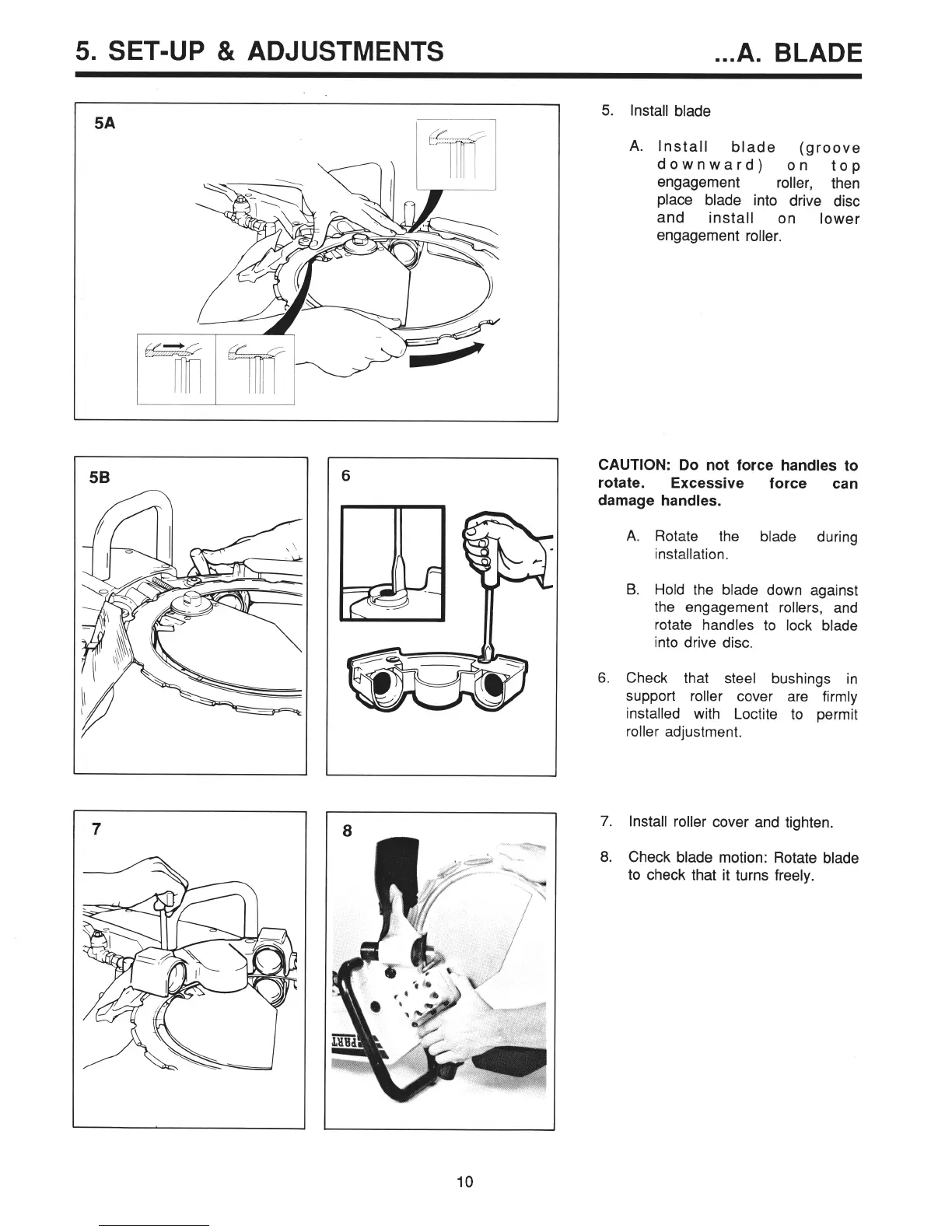

5. SET-UP & ADJUSTMENTS
. ..A. BLADE 1:::
6
10
5. Install blade
A. Install
blade (groove
downward) on
top
engagement
roller, then
place blade into drive disc
and
install on
lower
engagement roller.
CAUTION: Do not force handles to
rotate.
Excessive force can
damage handles.
A. Rotate the blade during
installation.
B. Hold the blade down against
the engagement rollers, and
rotate handles to lock blade
into drive disc.
6. Check that steel bushings in
support roller cover are firmly
installed with Loctite to permit
roller adjustment.
7. Install roller cover and tighten.
8. Check blade motion: Rotate blade
to check that it turns freely.
