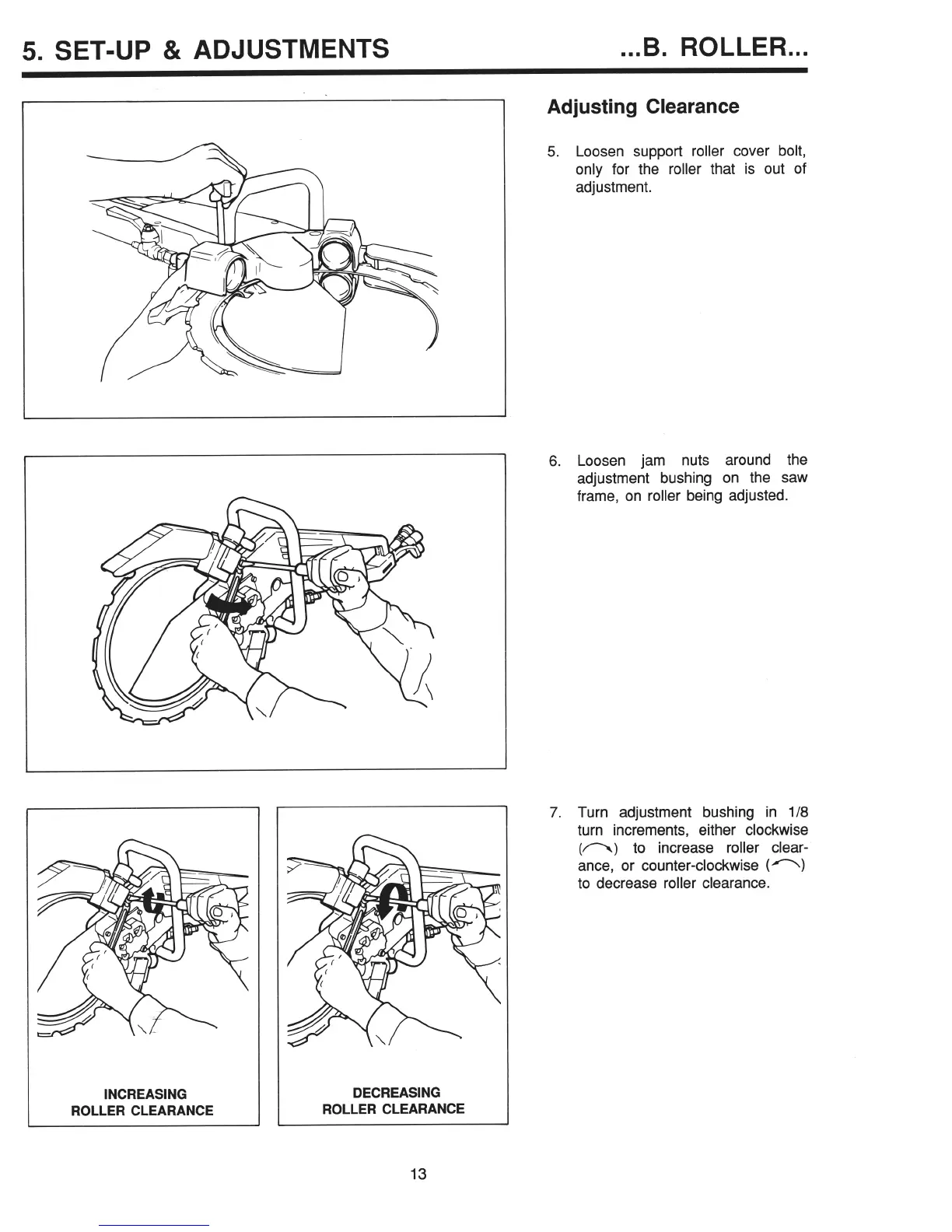

5. SET-UP & ADJUSTMENTS
. ..B. ROLLER...
INCREASING
ROLLER CLEARANCE
DECREASING
ROLLER CLEARANCE
Adjusting Clearance
5. Loosen support roller cover bolt,
only for the roller that is out of
adjustment.
6. Loosen jam nuts around the
adjustment bushing on the saw
frame, on roller being adjusted.
7. Turn adjustment bushing in 118
turn increments, either clockwise
(n) to increase roller clear-
ance, or counter-clockwise (n)
to decrease roller clearance.
13
