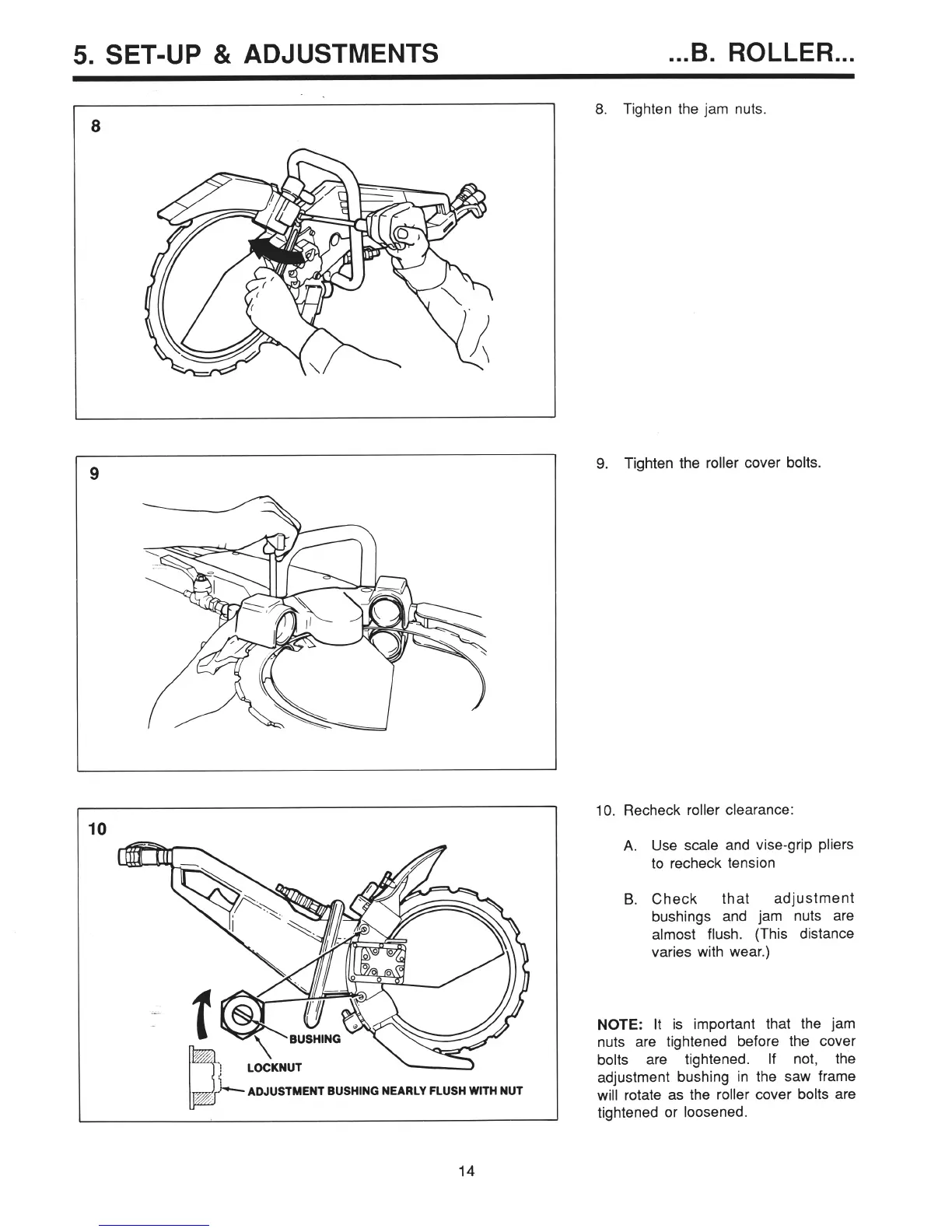

5. SET-UP & ADJUSTMENTS
. ..B. ROLLER...
lmf-
ADJUSTMENT BUSHING NEARLY FLUSH WITH NUT
8. Tighten the jam nuts
9. Tighten the roller cover bolts.
10. Recheck roller clearance:
A. Use scale and vise-grip pliers
to recheck tension
B. Check that adjustment
bushings and jam nuts are
almost flush. (This distance
varies with wear.)
NOTE: It is important that the jam
nuts are tightened before the cover
bolts are tightened. If not, the
adjustment bushing in the saw frame
will rotate as the roller cover bolts are
tightened or loosened.
14
