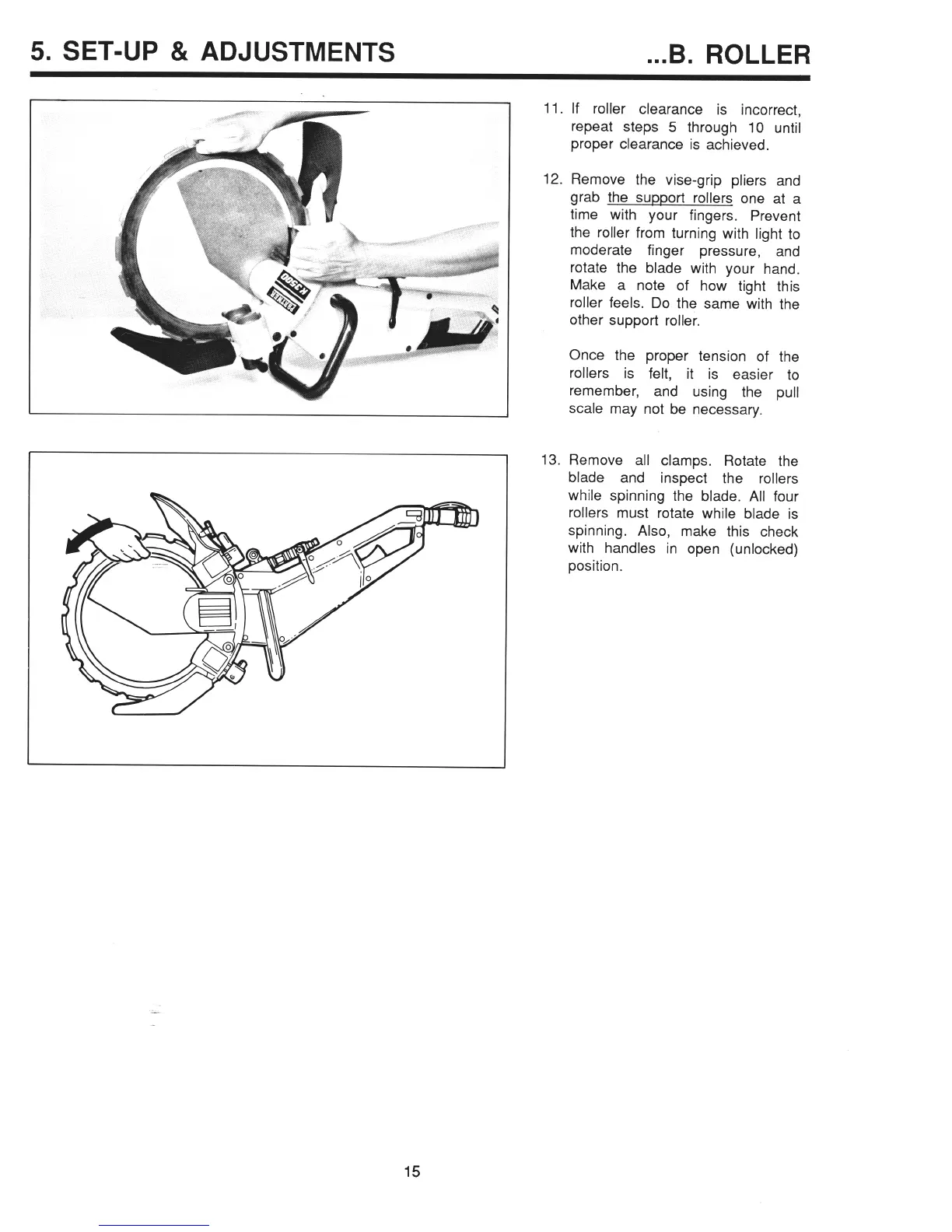

/ 5. SET-UP & ADJUSTMENTS
. ..B. ROLLER
11. If roller clearance is incorrect,
repeat steps 5 through 10 until
proper clearance is achieved.
12.
Remove the vise-grip pliers and
grab the support rollers one at a
time with your fingers. Prevent
the roller from turning with light to
moderate finger pressure, and
rotate the blade with your hand.
Make a note of how tight this
roller feels. Do the same with the
other support roller.
Once the proper tension of the
rollers is felt, it is easier to
remember,
and using the pull
scale may not be necessary.
13. Remove all clamps. Rotate the
blade and inspect the rollers
while spinning the blade. All four
rollers must rotate while blade is
spinning. Also, make this check
with handles in open (unlocked)
position.
15
