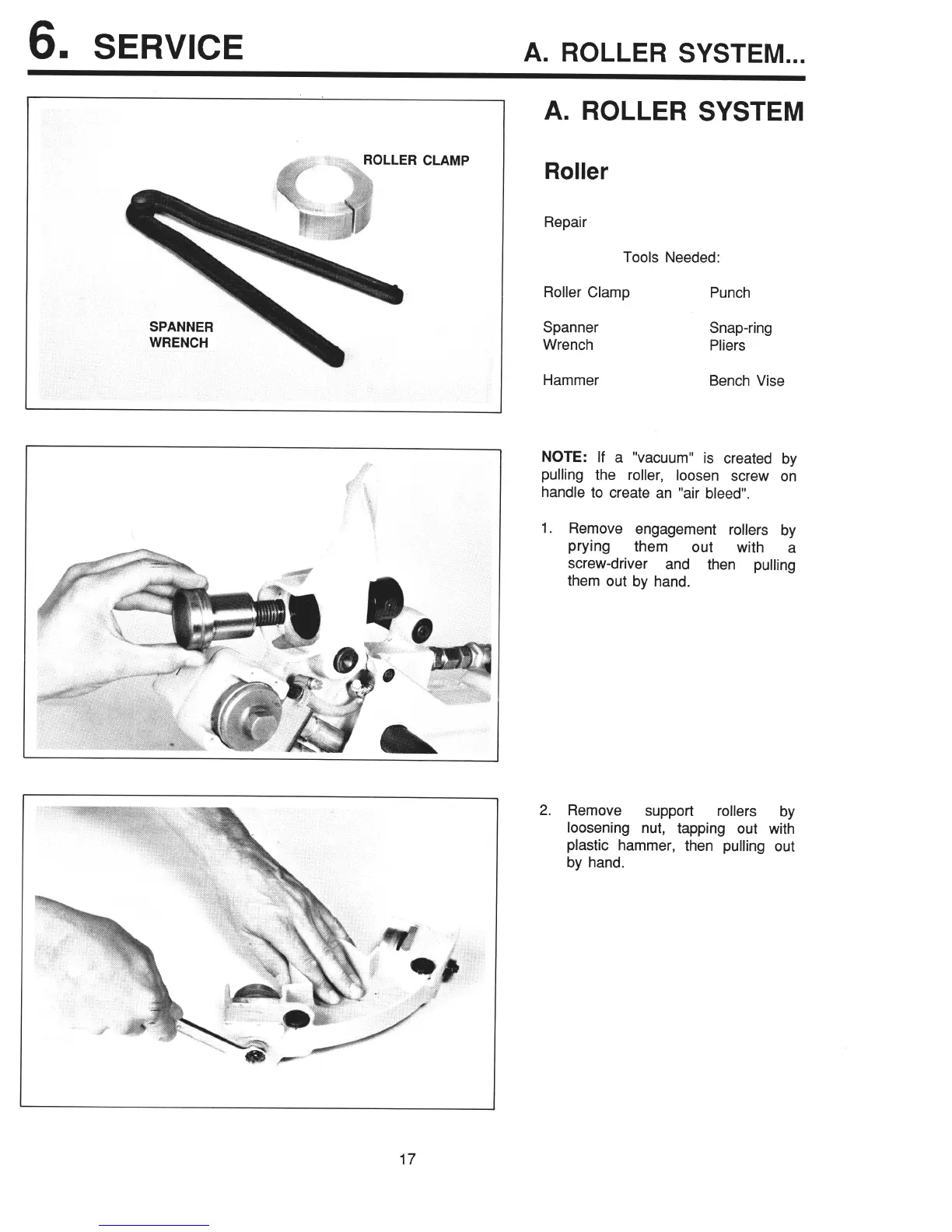

6.
SERVICE
A. ROLLER SYSTEM...
‘,
OLLER CLAMP
A. ROLLER SYSTEM
Roller
Repair
Tools Needed:
Roller Clamp
Punch
Spanner
Wrench
Snap-ring
Pliers
Hammer
Bench Vise
NOTE: If a “vacuum” is created by
pulling the roller, loosen screw on
handle to create an “air bleed”.
1. Remove engagement rollers by
Prying
them out
with a
screw-driver and then pulling
them out by hand.
2. Remove
support
rollers by
loosening nut, tapping out with
plastic hammer, then pulling out
by hand.
17
