Partner PT-5910 - Mainboard connectors; Inverter connectors

46 CHAPTER 4 LOCATING THE PROBLEM

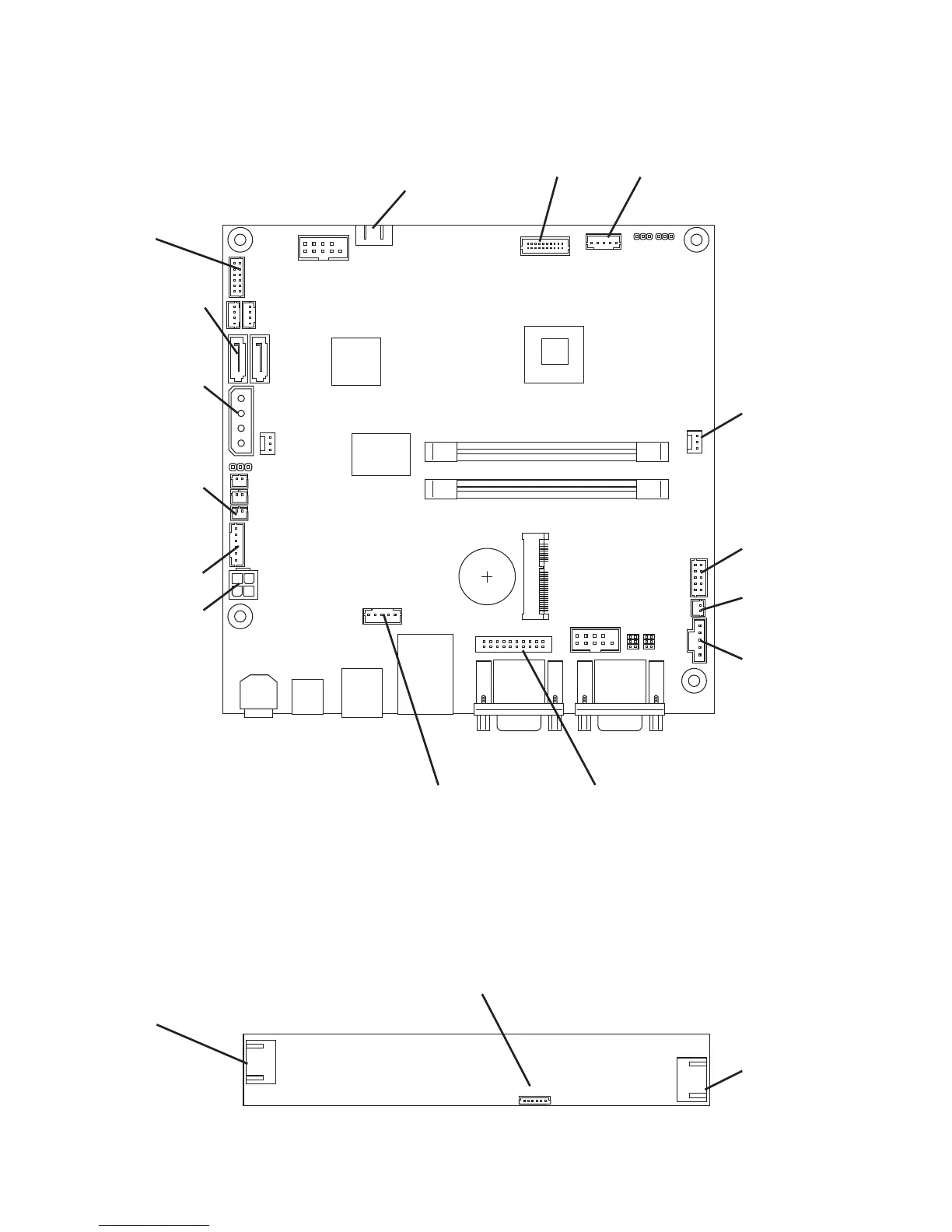

Figure 4.4 Inverter connectors
Inverter connectors
connector to
mainboard
connector to
LCD
connector to
LCD
Figure 4.3 PT-5910 mainboard connectors
Mainboard connectors
connector to
inverter
connector to
LCD panel
connector
to customer
display
connector to
MSR
connector to
SATA HDD
connector to
HDD power
connector to
speaker
connector to
audio jacks
connector to
CPU fan
connector to
touch panel
connector to
PS/2 port
connector to
parallel port
connector to
power LED
connector to
power button
connector to
power jack
