Partner PT-5910 - Panel Bracket; Waterproof Seal, Touch Panel, Touch Cover, LCD Panel

59

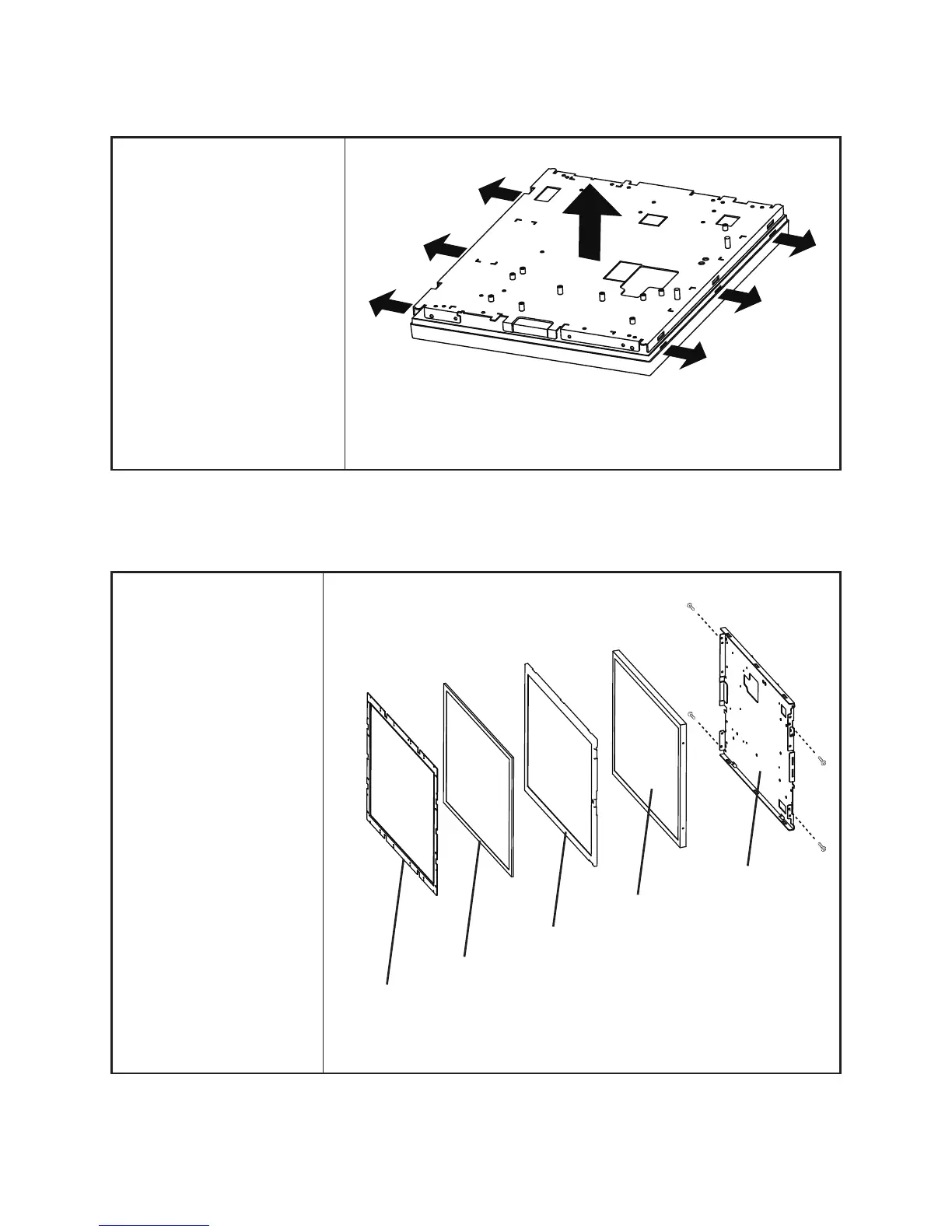

Panel Bracket
Before proceeding, remove the
following FRUs.
• “Front Cover” on page 60.
• “LPT port, PS/2 port, DC
12V connector and the audio
jacks” on page 63.
• “Mainboard” on page 64.
• “Power Board” on page 65.
• “Inverter” on page 66.
1. Disconnect all cables.
2. Pull the front cover away at
the sides.
3. Remove the panel bracket.
Waterproof Seal, Touch Panel, Touch Cover, LCD Panel
Before proceeding, remove
the following FRUs.
• “Front Cover” on page 60.
• “COM Port and Audio
Jacks” on page 63.
• “Mainboard” on page 64.
• “Power Board” on page
65.
• “Inverter” on page 66.
• “Panel Bracket” on page
67.
1. Remove four screws from
the panel bracket.
2. Remove the LCD panel.
3. Remove the touch cover
panel.
4. Remove the touch panel.
5. Remove the waterproof
seal.
Panel Bracket
LCD Panel
Touch Cover
Touch Panel
Waterproof Seal
