18 Installation of the cascade controller
50 99E13331xx-mub-en - V08 2022/07

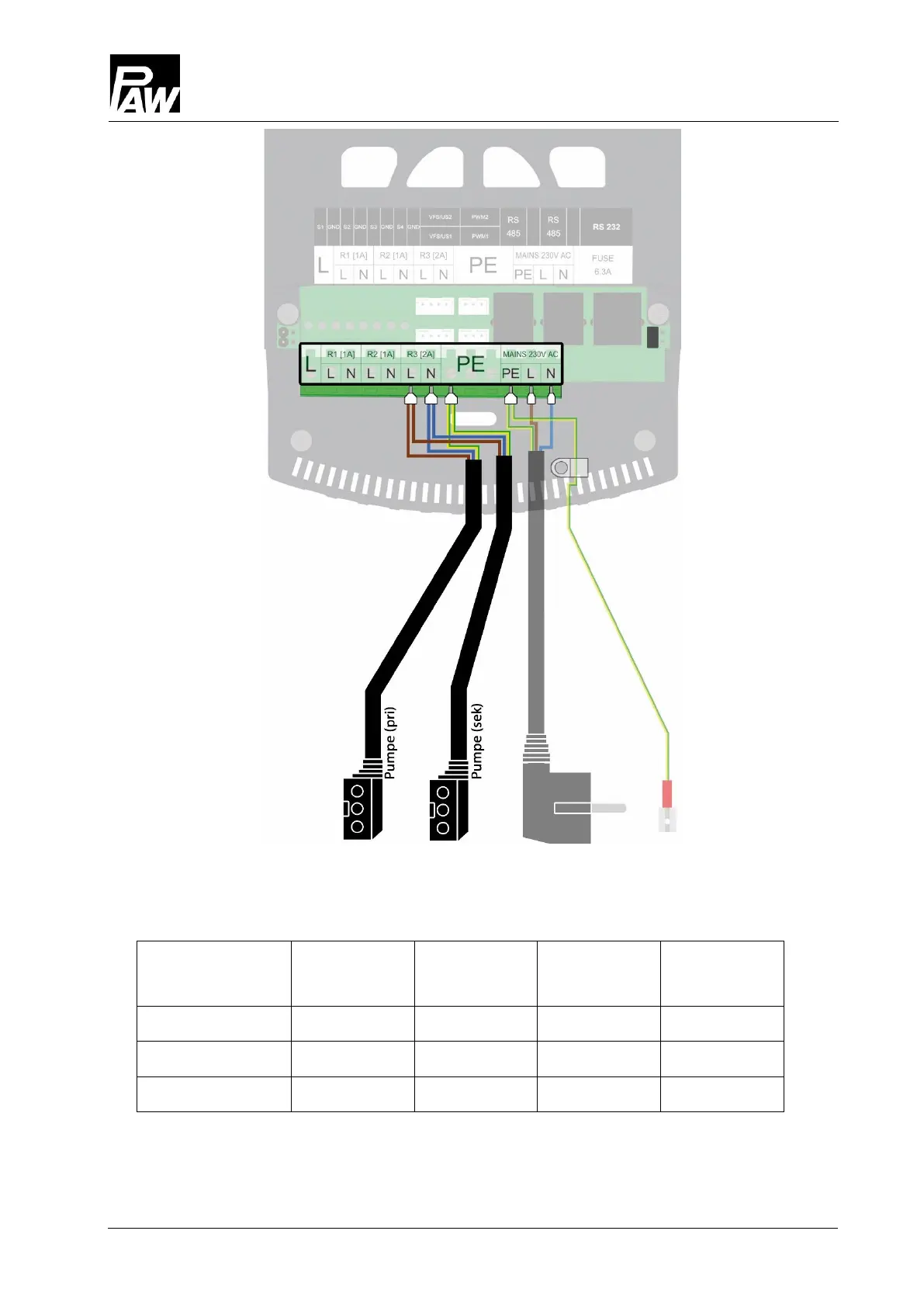

6. For the first and last participant of the Modbus communication, the jumpers must be placed
in position 2 (see upper illustration). Place the jumpers as follows:
Number of
cascade modules
Client
Server 1
Server 2
Server 3
2 Pos. 2 Pos. 2 - -
3 Pos. 2 Pos. 1 Pos. 2 -
4 Pos. 2 Pos. 1 Pos. 1 Pos. 2
Pos. 1
Pos. 2
