P550c Operation Manual
6 Operating the system
www.pearpoint.com | 142

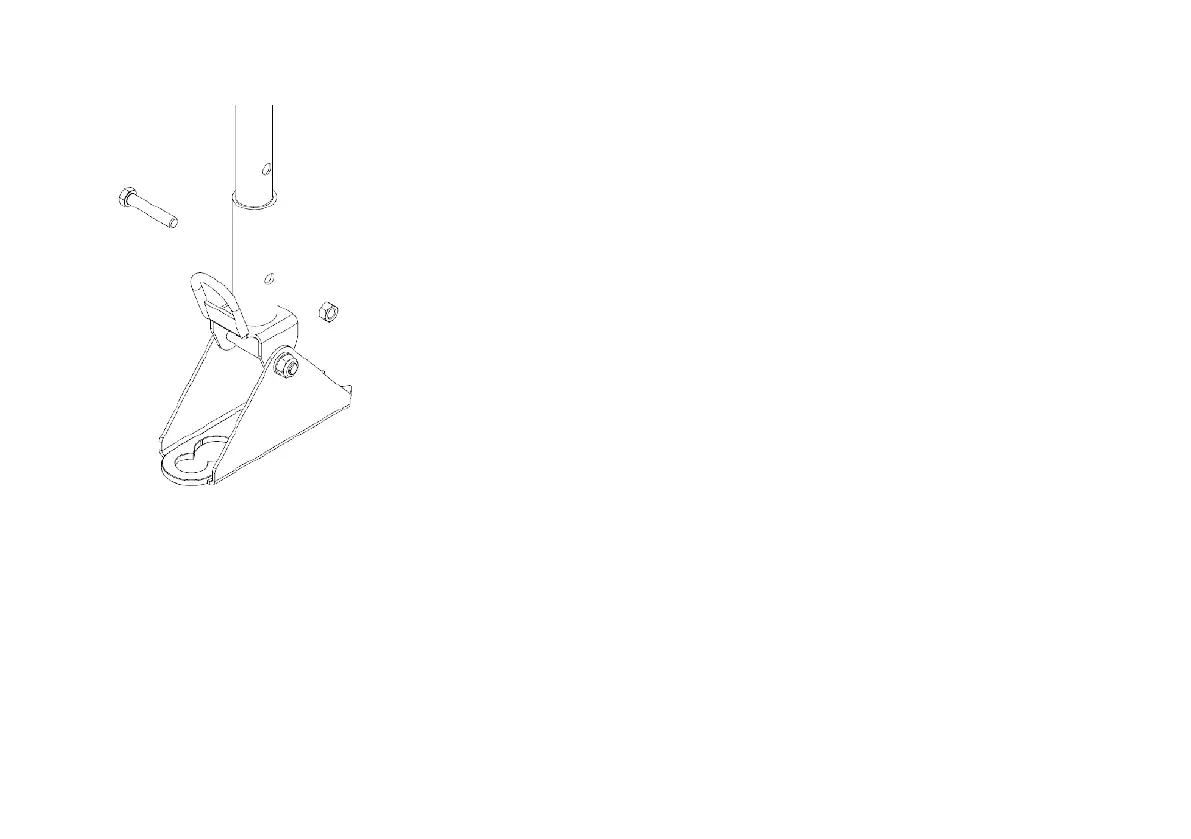

Fig. 6.6 Elevator cradle assembly
Attach the bracket to the large elevator assembly following these steps:
1 Remove the 4× M6x16 screws using a 4mm Allen key
2 Remove the 4× bushes and friction o rings from the linkage arms
3 Fit the new adaptor bushes and o rings and tighten firmly (recommended torque 8Nm / 70 in-lbs)
using a 15mm hex wrench.
