P550c Operation Manual
4 System assembly
www.pearpoint.com | 62

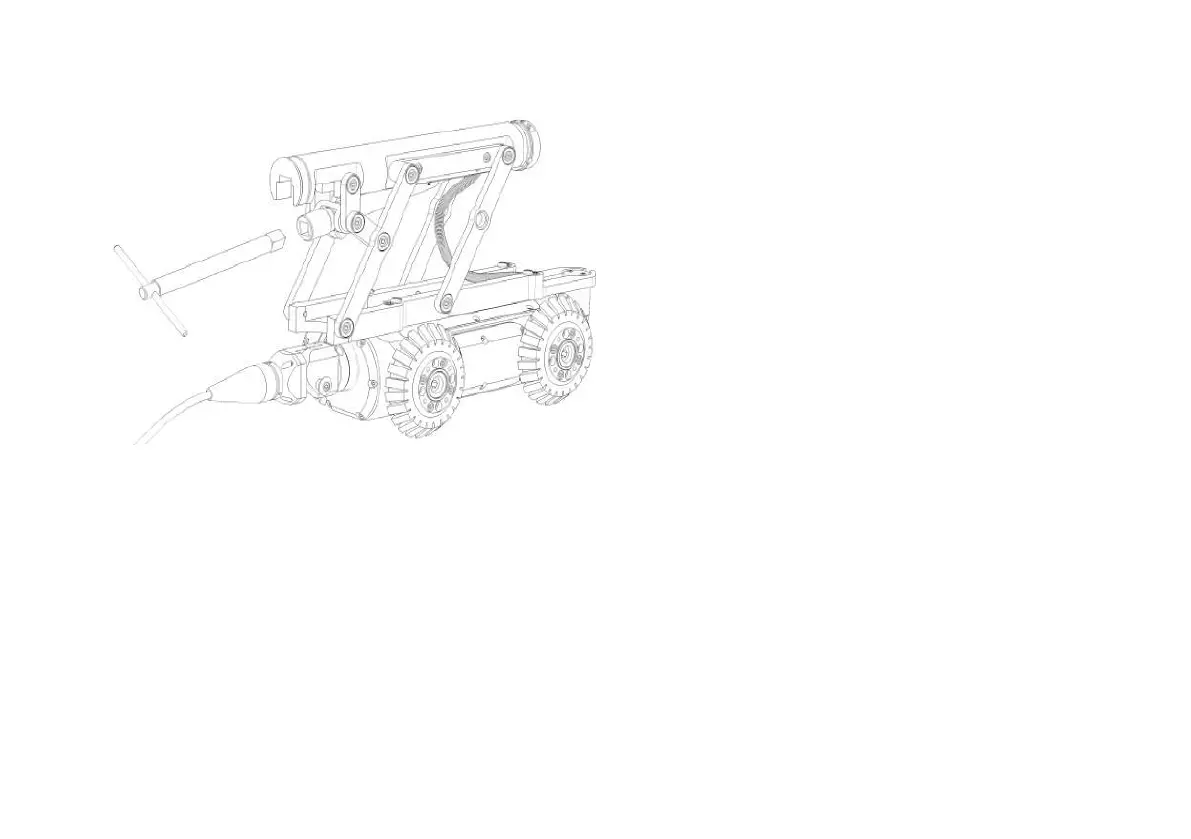

Fig. 4.13: Adjusting the large adjustable elevator
Powered elevator
Install the powered elevator using the following steps:
1 Fit the baseplate to the top of the P356 crawler using the four mounting screws provided
