P550c Operation Manual
4 System assembly
www.pearpoint.com | 63

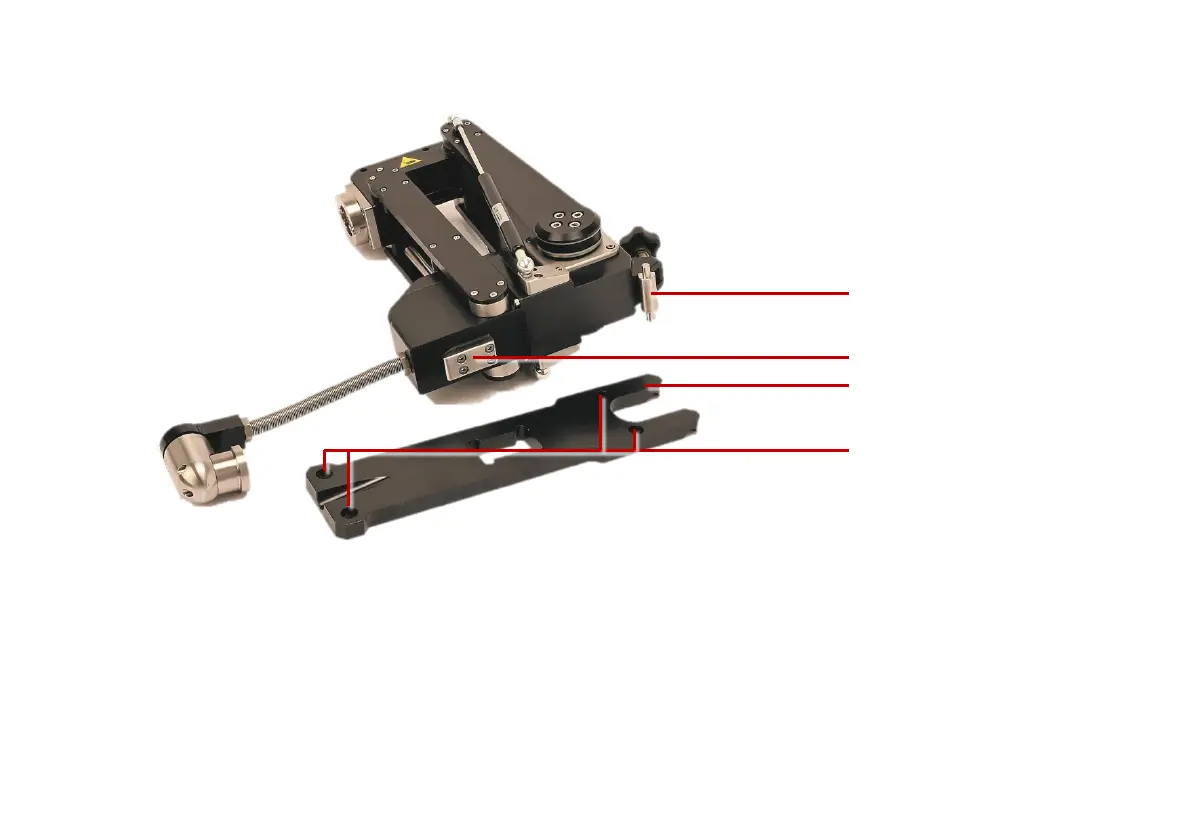

Fig. 4.14: Installing the powered elevator
2 Loosen off the thumbscrew at the rear of the elevator so that there is plenty of play in the mechanism
3 Line the elevator up with the P356 crawler, and slide the ‘shoe’ projecting from the bottom of the
elevator into the corresponding recess in the baseplate
‘Shoe’
Thumbscrew mechanism
Baseplate
Fitting points
