10
2018-05-30 #:180-9116-7 (2020-08-04)
___
---
___
---
S/PDIF
Optical
Audio
In
VGA
HDMI 1
Display
Port
USB 2.0
Data
Audio
Out
RS232C
LAN
Mini AV
Component
Antenna or
Cable
ALS
Extender
IR
Extender
HDMI 2
HDMI 3
Mini AV
12V 2500mA
USB Power
5V 2400mA

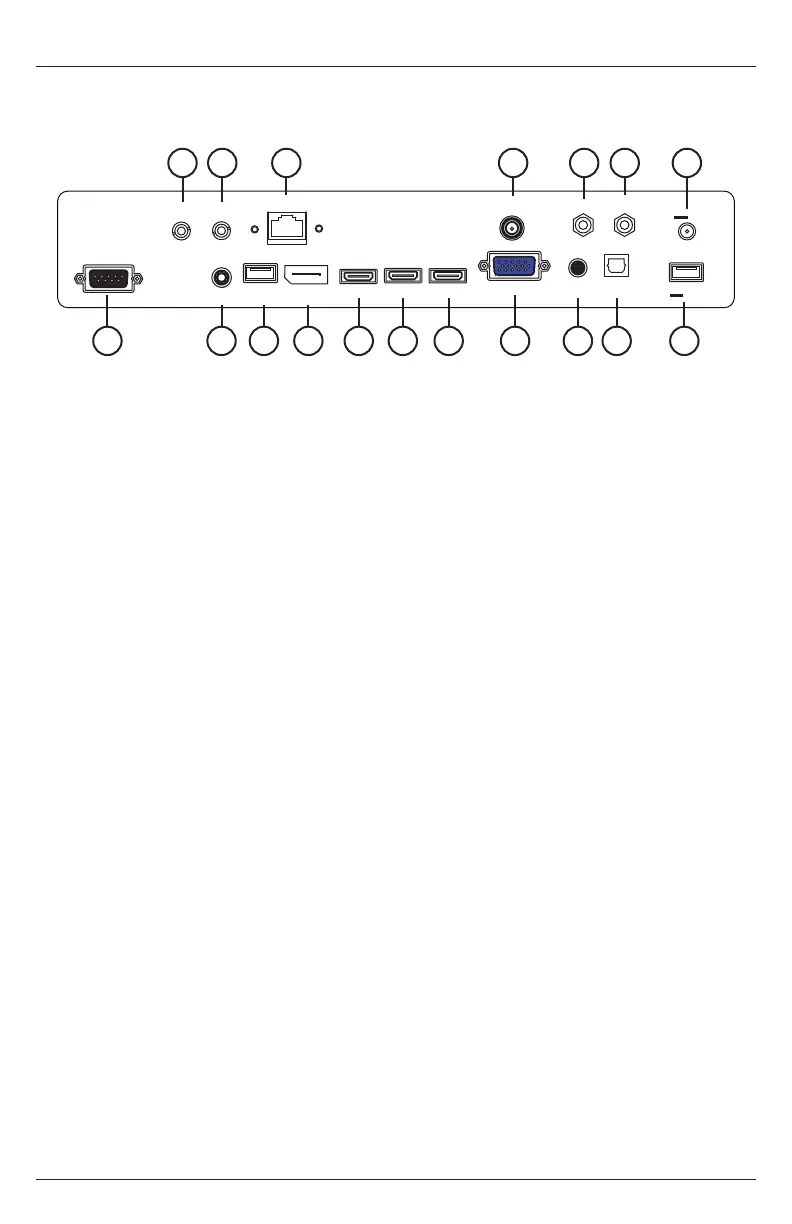

Connecting Cords
Connect source devices to appropriate display input. Make all connections prior to powering on the
display. The USB 2.0 Data port is for service and media only. For 5VDC power, use the 5VDC power
port.
43 5 6 71 2
8 12 13 14 15 16 17 1811109
1. 3.5mm Ambient Light Sensor (ALS) Extender – Automatically adjusts the brightness of the
display based on ambient lighting conditions. The ALS extender overrides the built-in ambient
have shadows being cast on it by surrounding structures or vegetation. The ALS extender can
be placed in a location that is more representative of the actual ambient light conditions. ALS
Extenders (ACCD-ALS) are sold separately from Peerless-AV by contacting Customer Care at
800-865-2112.
2.
can be used to position the IR receiver in a convenient position in the event the IR receiver on
the front of the display is obscured.
3.
4. Antenna/Cable Coaxial Input – Supports ATSC, NTSC and QAM256 signals. It can be used with
an over-the-air antenna or in a distributed coaxial network. This connection supports both analog
and digital signals.
5. 3.5mm Mini AV – Connects an analog source device with the display and allows for SD video
and analog stereo audio signals to be output to the display. This connection also supports the
audio portion of a connected component device. Requires a 3.5mm to RCA female composite
accessory dongle. Analog accessory kits (ACCD-ALG) are sold separately from Peerless-AV by
contacting Customer Care at 800-865-2112.
6. 3.5mm Mini Component – Connects an analog source device with the display and allows for
HD video and analog stereo audio signals to be output to the display. Requires a 3.5mm to
RCA female component accessory dongle for video signals. If audio is required when using the
component connection, the stereo audio signal will need to connect to the red and white female
RCA connectors on the composite accessory dongle. Analog accessory kits (ACCD-ALG) are
sold separately from Peerless-AV by contacting Customer Care at 800-865-2112.
7. 2.5mm DC Power Port – Provides 12 VDC @ 2.5 A for powering locally stored extenders and
source devices. 12 VDC accessory kits (ACCD-12K) are sold separately from Peerless-AV by
contacting Customer Care at 800-865-2112. Accessory DC outputs are only active when display
is on.
8. RS232C DB9 Port – Allows for control of the display using RS232 commands from a connected
PC or control system. Pin Out: Pin 2 (RX), Pin 3 (TX), Pin 5 (GROUND)
9. 3.5mm Analog Audio Out Port – Provides analog stereo audio for soundbars, headphones, and
10.
upgrades. This port should not be used for powering 5 VDC devices.
11. DisplayPort – Connects a digital source device with the display and allows for FHD video and
digital audio to be output on the display. DisplayPort is version 1.2 and is HDCP 1.3 compliant.
To Next Page
