SET UP INSTRUCTIONS

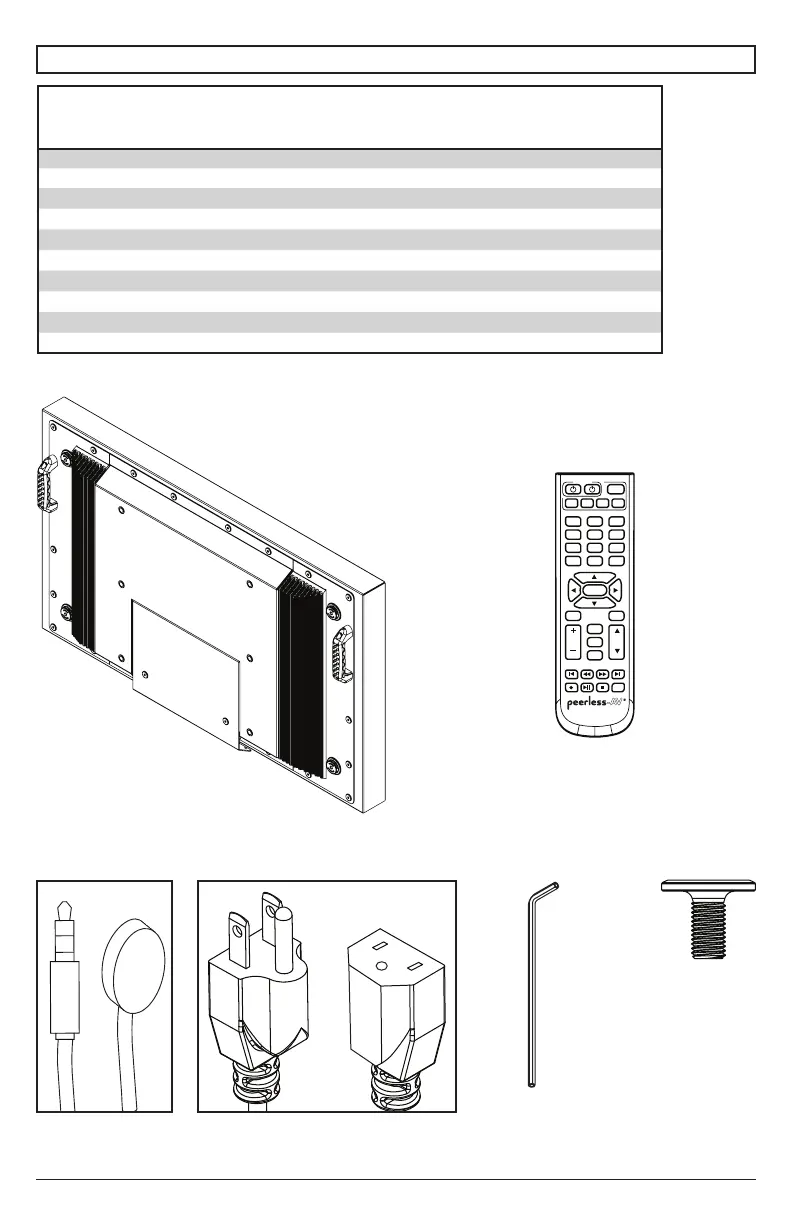

Parts List
Description Qty
XHB432
Part #
XHB492
Part #
XHB552
Part #
A display 1   
B remote 1 410-0332 410-0332 410-0332
C IR extender 1 600-0711 600-0711 600-0711
D power cord 1 410-0163-1 410-0163-1 410-0163-1
E 4mm allen wrench 1 560-9646 560-9646 560-9646
F M6 x 12mm 4 560-D1734 560-D1734 560-D1734
G user guide (not shown) 1 180-9116 180-9116 180-9116
H monitoring addendum (not shown) 1 180-9125 180-9125 180-9125
I technical support insert (not shown) 1 983-0721 983-0721 983-0721
J accessory insert (not shown) 1 983-0738 983-0738 983-0738
B
(
1
)
A
(
1
)
remotedisplay
C
(
1
)
D
(
1
)
F
(
4
)
IR extender power cord M6 x 12mm
IR
IN
E
(
1
)
4mm allen wrench
POWER
TV
TV/SPK
SPK
1 32
4 65
7
•
9
LAST
8
0
OK
AUX1 AUX2
MUTE
VOL
MENU
GUIDE
CH
INFO
INPUT
EXIT
