Préparer le A󰀩chage au Montage
Pièce A B C D E F
XHB432
39.50"
(1003mm)
23.28"
(591mm)
37.06"
(941mm)
20.84"
(529mm)
42.51"
(1080mm)
0.33"
(8mm)
XHB492
44.72"
(1136mm)
26.22"
(666mm)
42.27"
(1074mm)
23.78"
(604mm)
48.50"
(1232mm)
0.33"
(8mm)
XHB552
50.07"
(1272mm)
29.23"
(742mm)
47.62"
(1210mm)
26.79"
(680mm)
54.64"
(1388mm)
0.42"
(11mm)

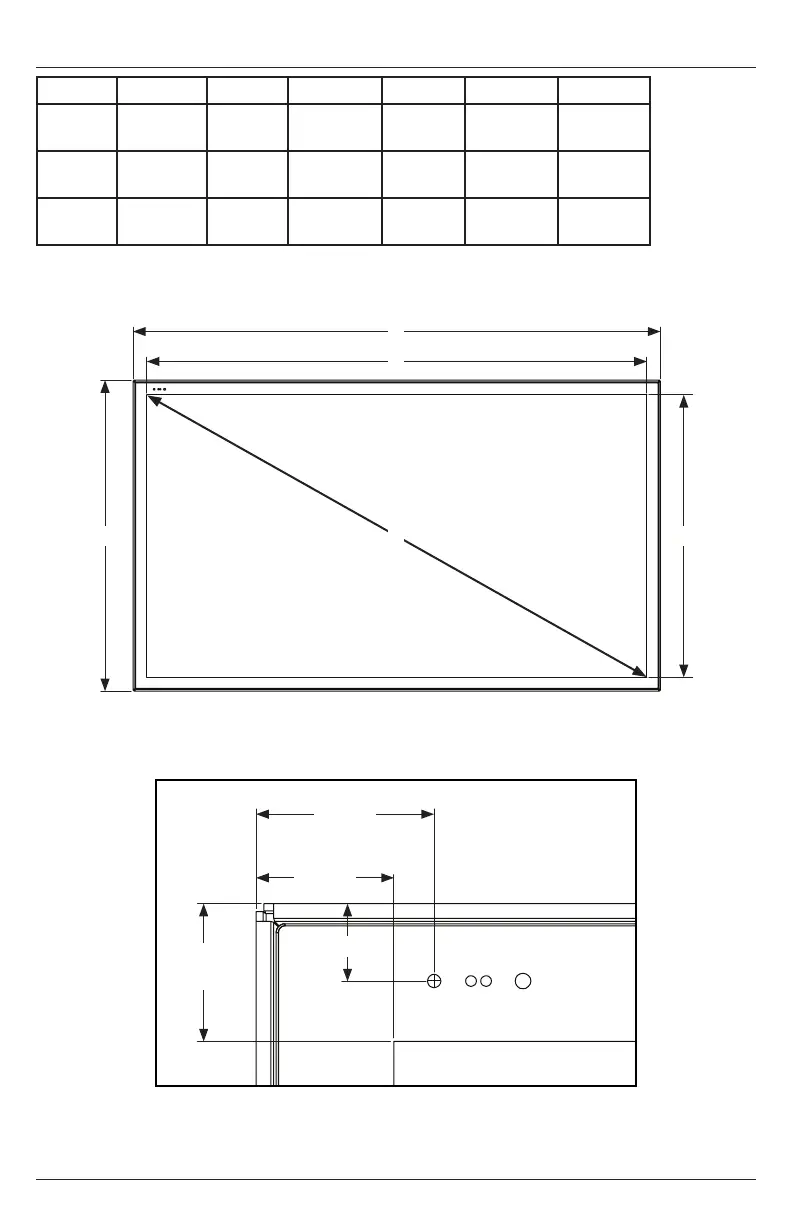

VUE DE FACE
VUE DÉTAILLÉE DU CADRE/IR
1.51"
(38mm)
1.22"
(31mm)
1.22"
(31mm)
C
A
B D
E
F
