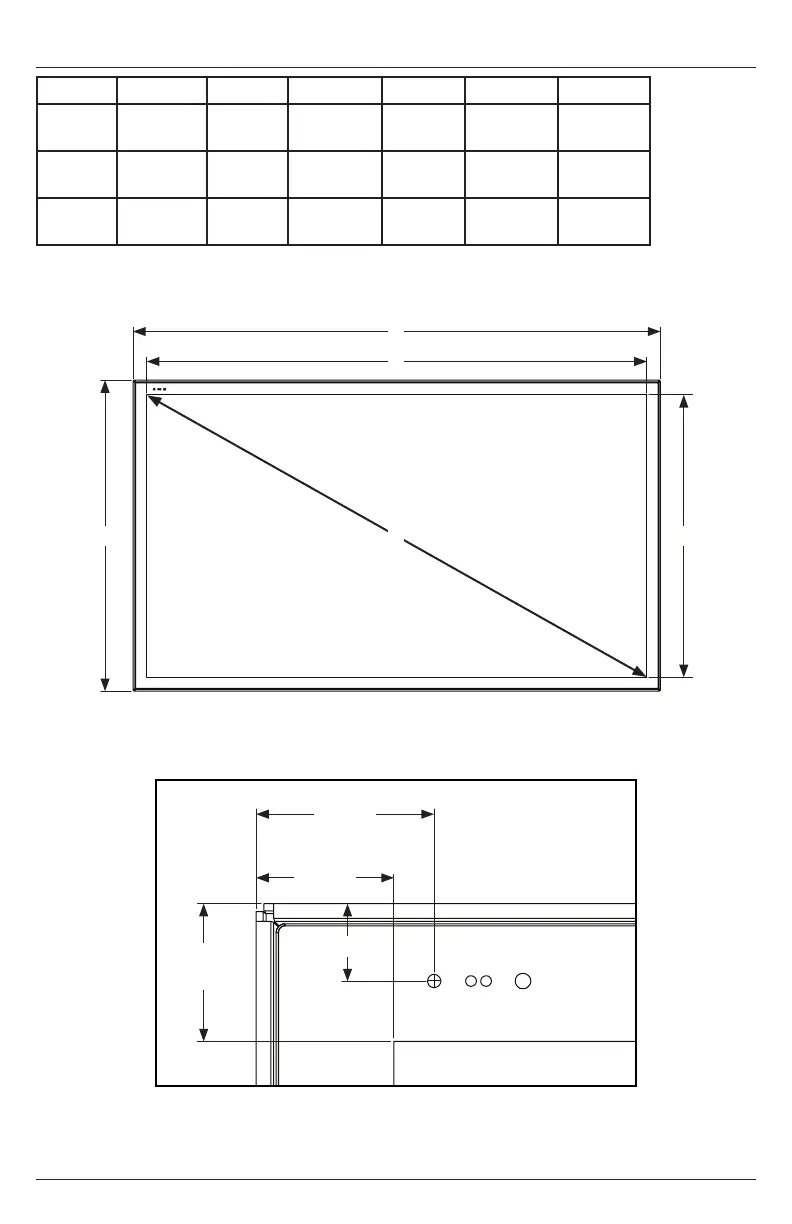

Preparar la pantalla para instalación
Pieza A B C D E F
XHB432
39.50"
(1003mm)
23.28"
(591mm)
37.06"
(941mm)
20.84"
(529mm)
42.51"
(1080mm)
0.33"
(8mm)
XHB492
44.72"
(1136mm)
26.22"
(666mm)
42.27"
(1074mm)
23.78"
(604mm)
48.50"
(1232mm)
0.33"
(8mm)
XHB552
50.07"
(1272mm)
29.23"
(742mm)
47.62"
(1210mm)
26.79"
(680mm)
54.64"
(1388mm)
0.42"
(11mm)
VISTA DELANTERA
MARCO / VISTA DETALLADA DEL
SENSOR INFRARROJO
1.51"
(38mm)
1.22"
(31mm)
1.22"
(31mm)
C
A
B D
E
F
