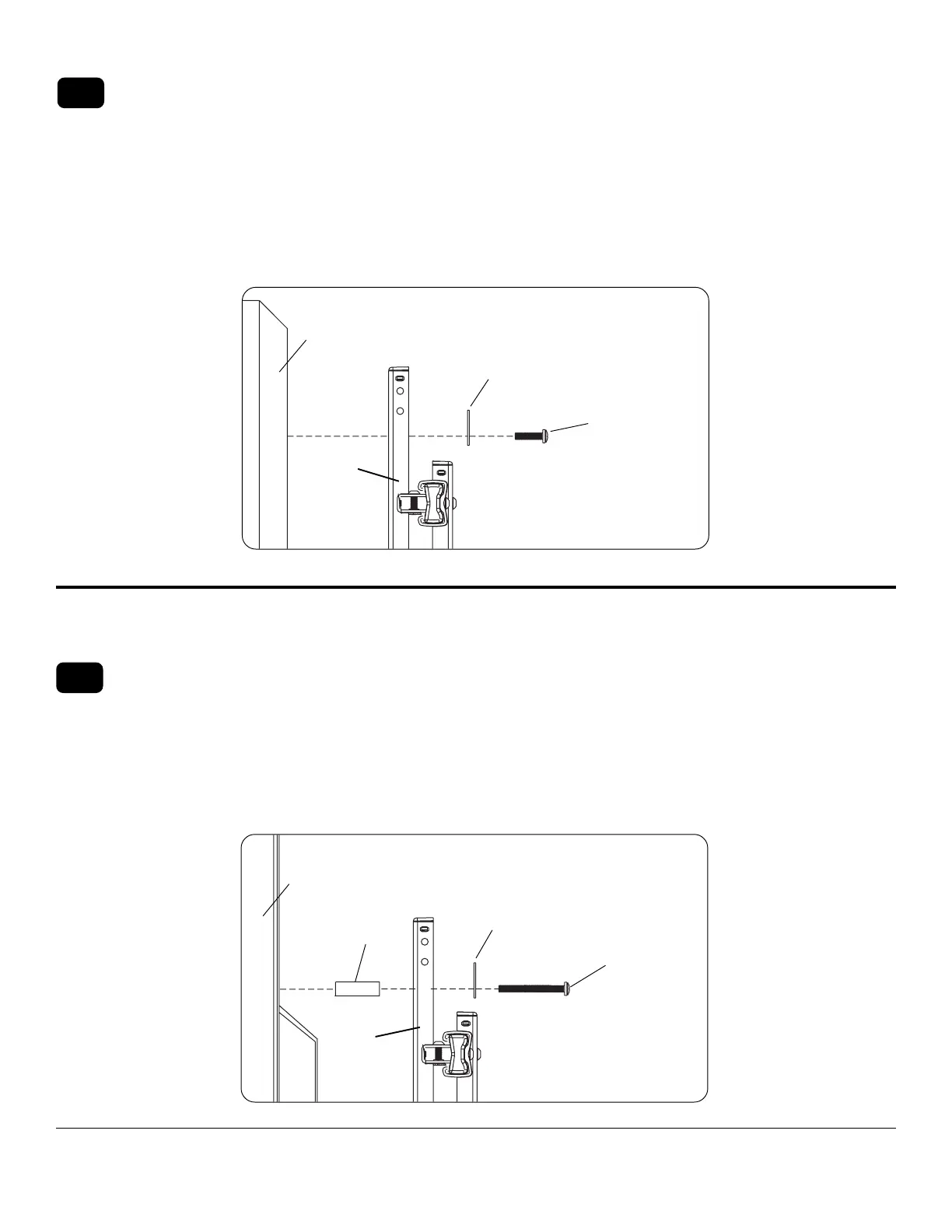

Begin with the shortest length screw, hand thread screw through multi-washer and screen brackets (C) into screen
as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not
over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled
fastener pack. Repeat for remaining mounting holes, level screen brackets and tighten screws. Snap bracket covers
into the back of screen brackets (C), refer to fig. 4.1 on page 8.
NOTE: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112. Visit our website at
www.peerlessmounts.com/unl to determine the correct fasteners to use for your particular screen.
Begin with longer length screw, hand thread screw through multi-washer, screen brackets (C) and spacer in that
order into screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into
place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from
the baffled fastener pack. Repeat for remaining mounting holes, level screen brackets and tighten screws. Snap
bracket covers into the back of screen brackets (C), refer to fig. 4.1 on page 8.
If you have any questions, please call Peerless customer care at 1-800-865-2112. Visit our website at
www.peerlessmounts.com/unl to determine the correct fasteners to use for your particular screen.
For Flat Back Screen
For Bump-out or Recessed Back Screen
SCREEN
MULTI-WASHER
SCREW
fig 4.6
SPACER
SCREEN
fig 4.5
MULTI-WASHER
SCREW
4-5
4-6
