8 of 42
ISSUED: 03-08-07 SHEET #: 095-9264-1

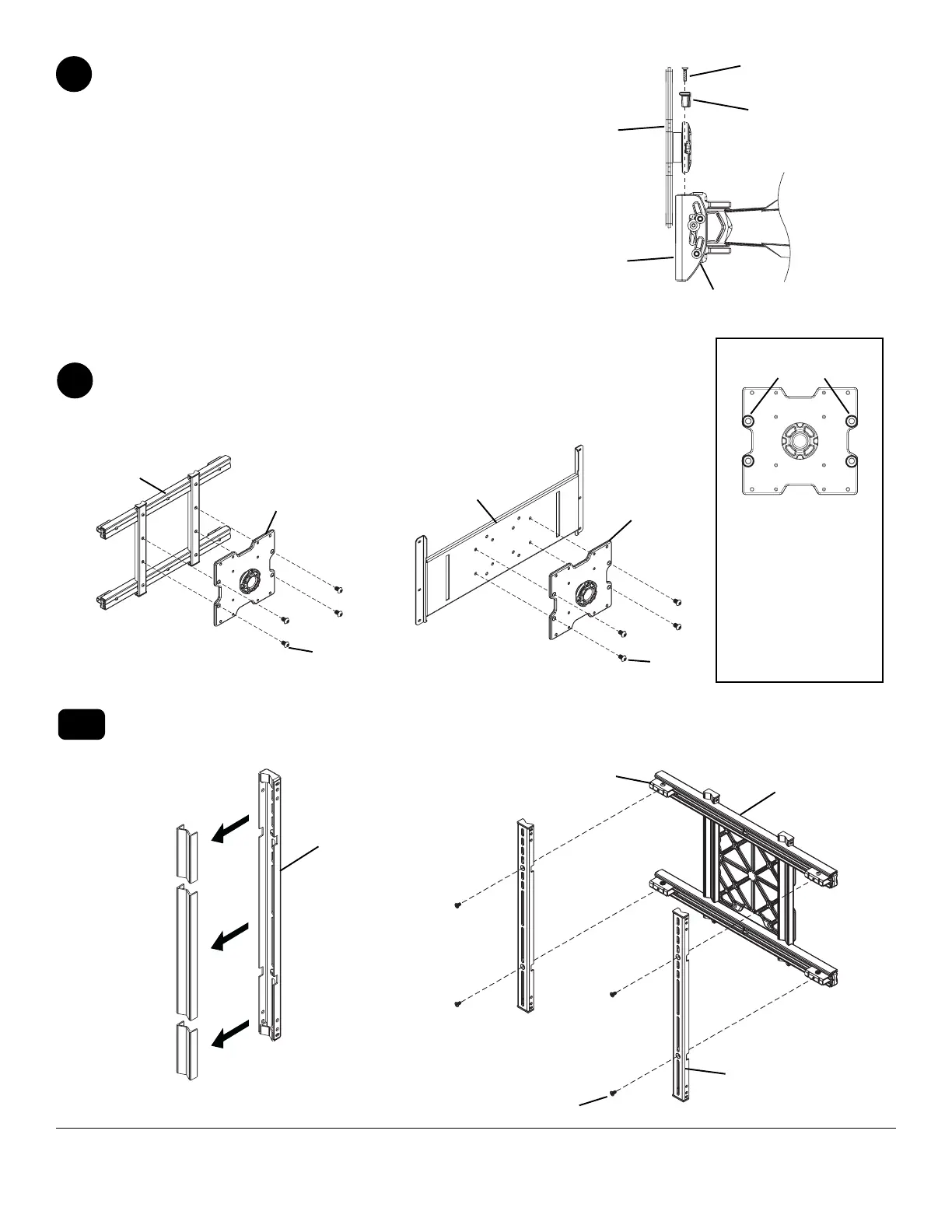

Remove two M5 x 20 mm screws from the rollbrake. Lift
adapter plate out from tilt bracket as shown.
NOTE: M5 X 25 mm screw may need to be loosened a
few turns to allow adapter bracket to be removed using
4 mm allen wrench (N).
3
Remove bracket covers from screen brackets (C) as shown in fig. 4.1. Fasten two screen brackets (C) to the
gliders on universal adapter bracket (B) using four M5 x 10 mm flat head phillips screws (H) as shown in fig. 4.1.2.
4-1
C
BRACKET
COVER
C
B
GLIDERS
H
fig. 4.1.2
NOTE: If your screen has a VESA hole pattern skip to page 12.
Using the hole pattern shown in detail 2, attach the adapter plate to universal adapter
bracket (B) or dedicated adapter plate with four M10 x 15 mm screws (G) as shown.
Tighten screws using 6 mm allen wrench (K).
4
Installing Universal Adapter Bracket to Screen
ADAPTER
PLATE
ROLL BRAKE
TILT
BRACKET
M5 X 20 MM
SCREW
A
M5 X 25 MM
SCREW
HOLE PATTERN
FOR USE WITH
UNIVERSAL
ADAPTER
BRACKET OR
DEDICATED
ADAPTER PLATE
DETAIL 2
LARGE
HOLES
ADAPTER PLATE
DEDICATED
ADAPTER PLATE
G
ADAPTER PLATE
B
G
fig. 4.1
To Next Page
