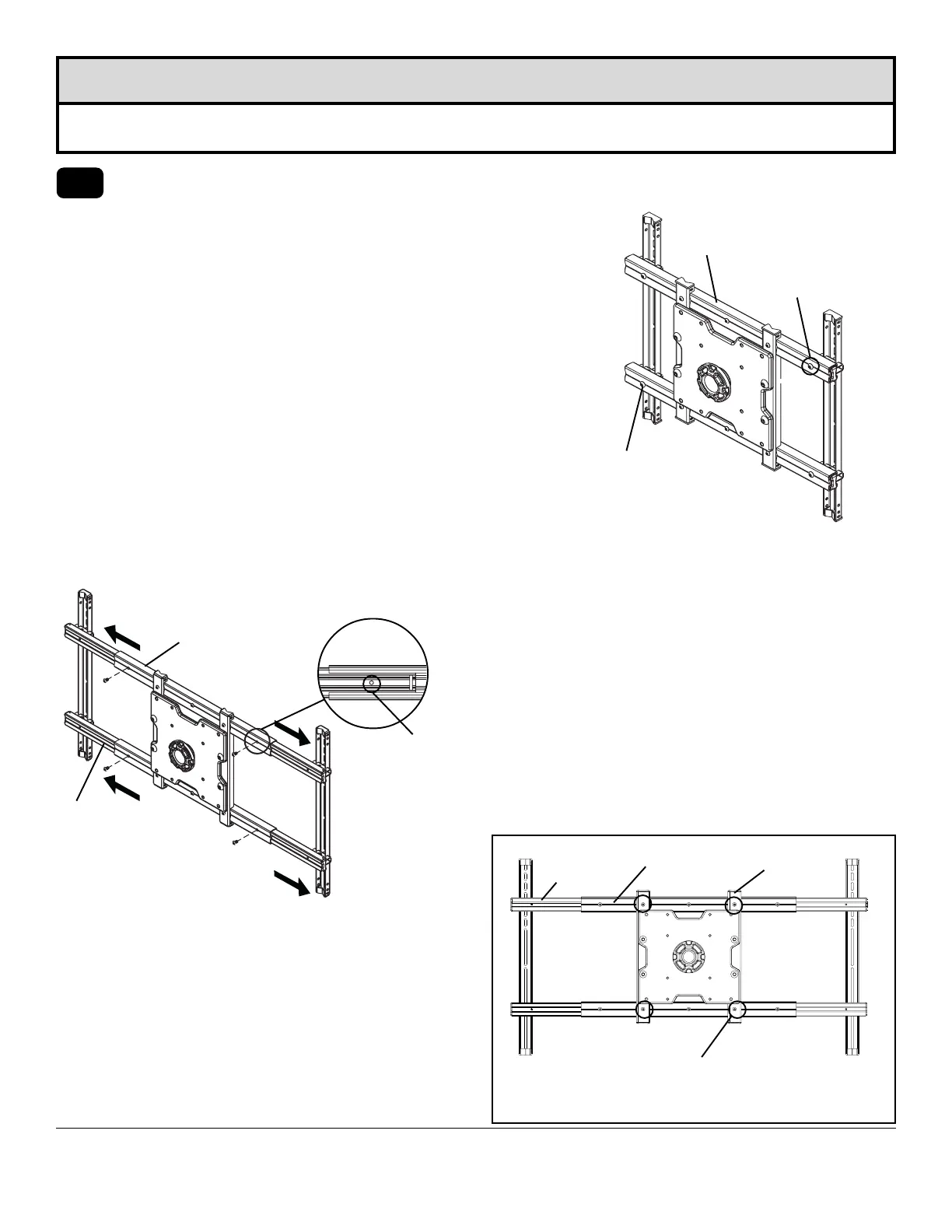

The universal adapter bracket has two fixed stop positions
which lock the extension brackets in the retracted position
(shown right) or extended position (shown below) using the
M5 x 9mm screws.
If the distance between mounting holes on the back of your screen
measure 17.5” (445 mm) wide or less keep universal adapter
bracket in the retracted position. Skip to step 4-3.
If the distance between mounting holes on the back of your screen
measure wider than 17.5” (445 mm), remove four M5 x 9 mm
socket button head screws from universal adapter bracket using
3 mm allen wrench (M), as shown below. NOTE: You may need to
loosen four M5 x 9 mm vertical support screws, as shown in
detail 3, one full turn to adjust extension brackets. Extend both
extension brackets out to the fixed stop positions (threaded hole
shown in reverse view below). Secure extension bracket to the
horizontal support by fully tightening M5 x 9 mm socket button
head screws into the fixed stop positions of the extension brackets
using 3 mm allen wrench (M) as shown in the reverse view.
Retighten M5 x 9 mm vertical support screws as shown in detail 3.
• Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten M5 x 9 mm vertical
support screws and M5 x 9mm socket button head screws to 35 in. • lb (3.95 N.M.) maximum torque.
CAUTION
DETAIL 3
LOOSEN VERTICAL SUPPORT
SCREWS FOR EXTENSION
BRACKET ADJUSTMENT
THEN TIGHTEN
VERTICAL
SUPPORT
HORIZONTAL
SUPPORT
EXTENSION
BRACKET
REVERSE
VIEW
EXTENSION
BRACKET
HORIZONTAL
SUPPORT
EXTENDED
POSITION
FIXED STOP POSITION
(THREADED HOLE)
M5 X 9 MM BUTTON
SOCKET HEAD SCREW
HORIZONTAL
SUPPORT
RETRACTED
POSITION
RETRACTED
FIXED STOP
POSITION
