ECP300 EXPERT
Pag. 42
USE AND MAINTENANCE MANUAL
Rev. 0
1
-
12

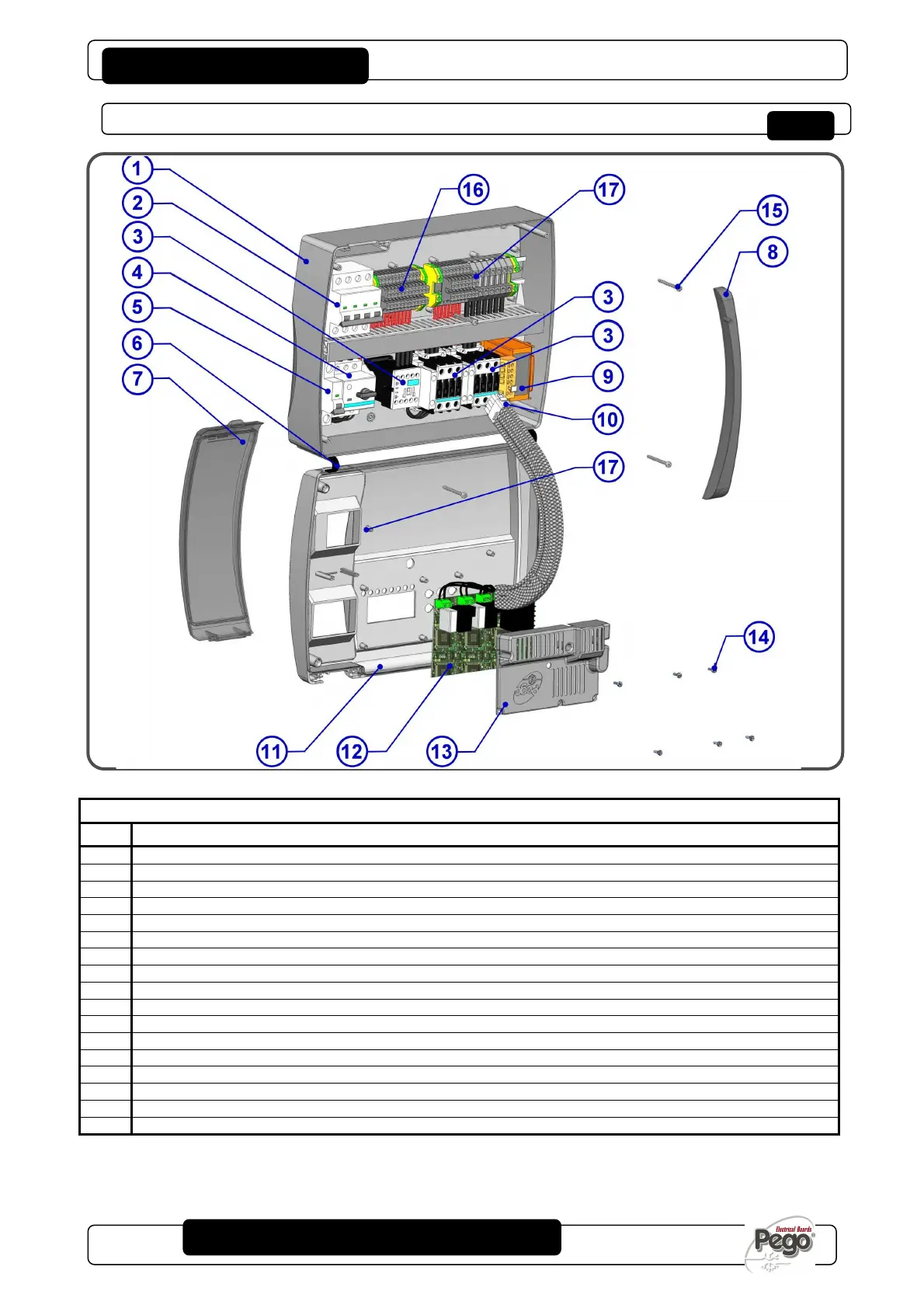

PART LIST
LEGENDA
RIF.
DESCRIZIONE
1 Box rear in ABS
2 4 poles magnetothermic circuit breaker con finzione di Interruttore generale / protezione generale
3 Contactors for units control
4 Compressor protection motor circuit breaker
5 Auxiliary protection 1-pole magnetothermic circuit breaker
6 Box front opening hinges
7 Front cover in transparent polycarbonate
8 Transparent polycarbonate screw cover
9 Auxiliary circuits transformer (N.B. with inside a glass fuse 10X20 F250mA 250V)
10 Connector for linking panel and the electronic card
11 Front panel
12 Electronic card
13 Electronic card cover
14 Electronic card fixing screws
15 Box closure screws
16 Auxiliary terminal block X1
17 Power terminal block X2
Attenzione:
This part list is purely indicative and refers to the ECP300VD7 model. Components on the
various panels may be different.
Allegati / Appendices
6.2
