Pego ECP300 EXPERT VD Series User Manual

ECP300 EXPERT
Pag. 6
USE AND MAINTENANCE MANUAL
Rev. 0
1
-
12

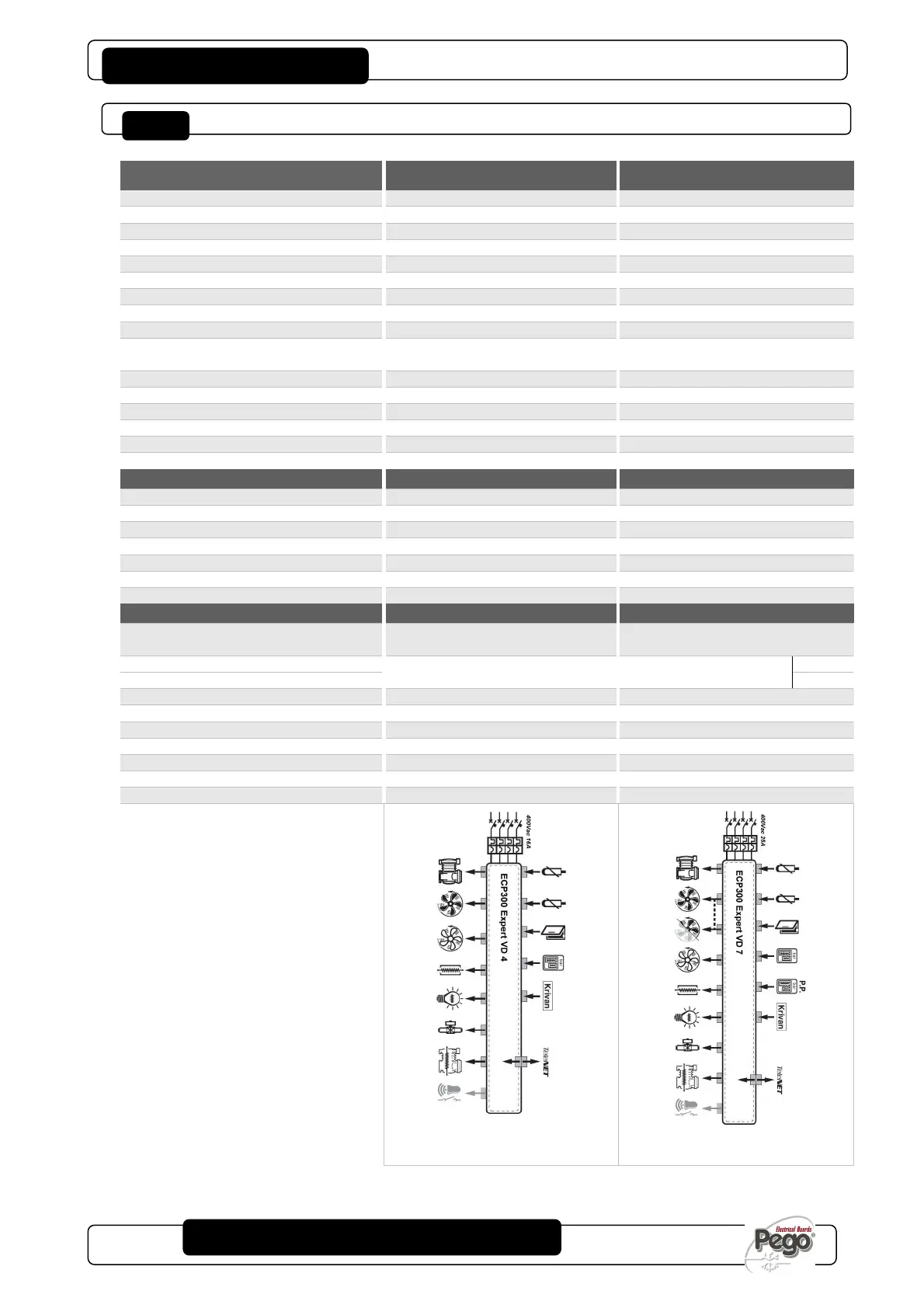

PRODUCT SERIES – TECHNICAL CHARACTERISTICS
Technical characteristics ECP300 Expert VD 4 ECP300 Expert VD 7
Box dim
ensions
400x300x135 mm
400x300x135 mm
Weight
9 Kg
10 Kg
Protection rating
IP65
IP65
Power supply
(3F+N+T)
400Vac ±10% 50/60Hz
400Vac ±10% 50/60Hz
Load type
3
-
phase
3
-
phase
Working temperature
-
5 ÷ + 40 °C
-
5 ÷ + 40 °C
Storage temperature
-
25 ÷ +55
°C
-
25 ÷ +55 °C
Relative ambient humidity
From 30% to 95% RH w/out condensate
From 30% to 95% RH w/out condensate
Altitude
< 1.000 m
< 1.000 m
Main switch / general protection
Interruption power
4 poles magnetothermic
16A
“D”
Icn=6kA / Ics=8kA / Icu=15kA
4 poles magnetothermic
25A
“D”
Icn=6kA / Ics=8kA / Icu=15kA
Compressor protection
Adjustable motor circuit breaker
Adjustable motor circuit breaker
Control
PEGO PEGO
Defrosting
Electrical
Electrical
Status indicators
LED + display
LED +
display
Alarm signals
LED + Buzzer
LED + Buzzer
Inputs
Ambient probe
NTC 10K 1%
NTC 10K 1%
Evaporator probe
NTC 10K 1%
NTC 10K 1%
Door switch
Present
Present
High/low pressure switch
Present
Present
Kriwan
®
connection
Present
Present
Compre
ssor functioning mode selection
Pump
-
down / Thermostat
Pump
-
down / Thermostat
Outputs
Compressor
See motor circuit breaker thermal range
relative to PEGO panel ID code
See motor circuit breaker thermal range
relative to PEGO panel ID code
Condense
r fans output 1
800W (1ph)
800W
(1ph)
Condenser fans output 2
(separated)
total
(1ph)
Evaporator fans
500W (1ph)
2000W (1ph / 3ph)
Defrosting heaters
6000W (AC1) eq. resistive load
9000W (AC1) eq. resistive load
Room light
800W (AC1) resistive load
800W (AC1) resistive load
Solenoid valve
Present
Present
Compressor oil heater
Present
Present
Alarm relay
100W
100W
Supervision system
Tele
NET
Tele
NET
Connection diagrams :
2.2
CAP. 2 - Caratteristiche tecniche
