Pentair FLECK NXT Service Manual

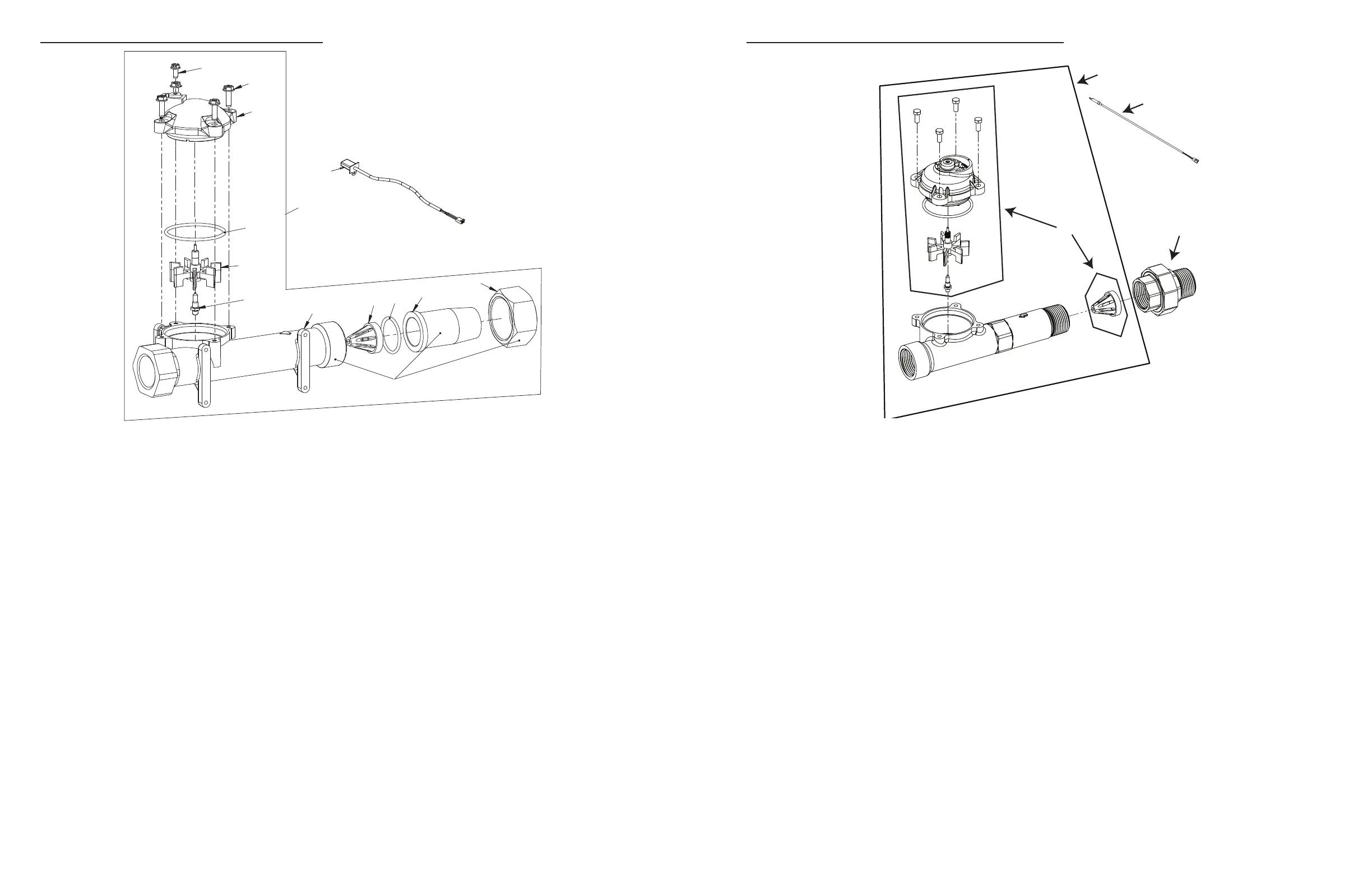

1-INCH BRASS METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 14716 .................Meter Cap Assy, Elec, Plastic
Paddlewheel
2.................1 ........ 13847 .................O-ring, -137
3.................1 ........ 17798 .................Screw, Slot Hex WSH HD
4.................4 ........ 12473 .................Screw, Hex WSH, 10-24 x 5/8
5.................1 ........ 14959-20 ............Body, Meter, 1", BSP, Metric,
Brass
6.................1 ........ 13882 .................Post, Meter Impeller
7.................1 ........ 13509 .................Impeller, Meter
8.................1 ........ 14960 .................Flow Straightener, 1"
9.................1 ........ 13287 .................O-ring, 123
10 ...............1 ........ 14961-10 ............Fitting, 1" Quick Connector, BSP
11 ...............1 ........ 14962 .................Nut, Quick Connect NPT
12 ...............1 ........ 60613 .................Meter Assy, 1" Inline, NPT,
Electronic, Brass, PDL
......... 60613NP ............Meter Assy, 1" Inline, NPT,
Electronic, Nickel, PDL
......... 60613-20 ............Meter Assy, 1" Inline, BSP,
Electronic, Brass, PDL
13 ...............1 ........ 19121 .................Meter Cable Assembly,
......... 19121-08 ............Meter Cable Assembly,
35 inch long with connector
......... 19121-09 ............Meter Cable Assembly,
100 inch long with connector
......... 19121-10 ............Meter Cable Assembly
304 inch long with connector
6
7
1
3
4
2
10
9
11
12
8
5
5
13
1-INCH STAINLESS STEEL METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 62049-01 ............Service Kit,
1 inch & 1-1/2 inch Meter,
Standard Range
1 ........ 62049-02 ............Service Kit,
1 inch & 1-1/2 inch Meter,
Extended Range
2.................1 ........ 61932-10 ............Meter Assy, 1 inch, Inline,
Stainless Steel, NPT,
Standard Range
1 ........ 61932-11 ............Meter Assy, 1 inch, Inline,
Stainless Steel, NPT,
Extended Range
1 ........ 61932-20 ............Meter Assy, 1 inch, Inline,
Stainless Steel, BSP,
Standard Range
1 ........ 61932-21 ............Meter Assy, 1 inch, Inline,
Stainless Steel, BSP,
Extended Range
3.................1 ........ 44022 .................Union, 1 inch, NPT
(Optional on models with
electronic controls)
1 ........ 44023 .................Union, 1 inch, BSP
(Optional on models with
electronic controls)
4.................1 ........ 19791 .................Meter Cable Assembly,
......... 19791-02 ............Meter Cable Assembly,
28 inch long with connector
......... 19791-04 ............Meter Cable Assembly,
100 inch long with connector
......... 19791-05 ............Meter Cable Assembly
304 inch long with connector
1
3
2
4
18 • Fleck 3200 NXT Fleck 3200 NXT • 19
