Pentair FLECK NXT Service Manual

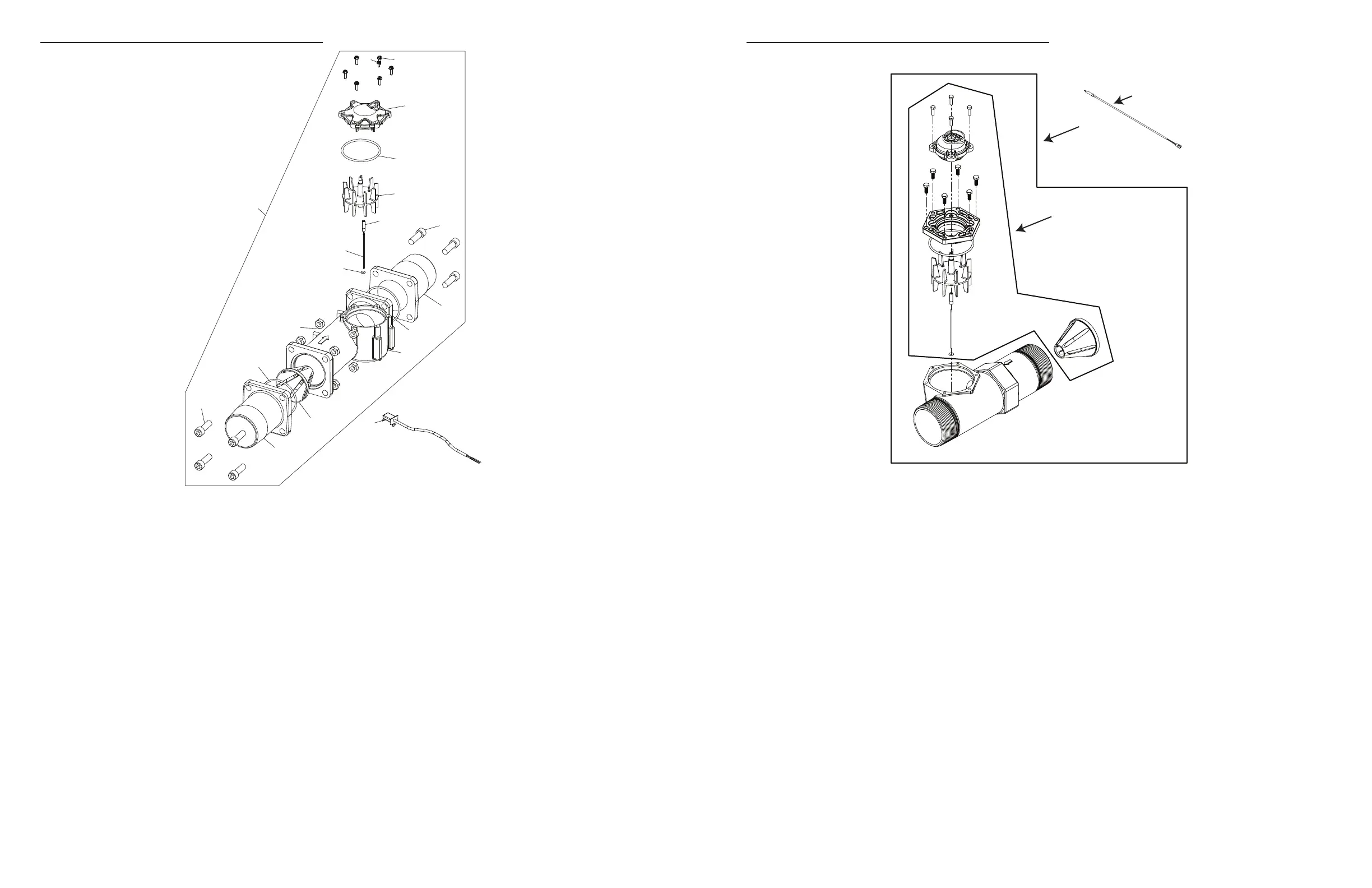

3 INCH BRASS METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 14716-01 ............Meter Cap Assy, 3" ELEC, Plastic,
Paddlewheel
2.................1 ........ 17798 .................Screw, Hex Washer Head, #8-16
x 0.38
3.................3 ........ 15707 .................O-ring, -236
4.................1 ........ 16254-20 ............Body Meter, 3900, BSP
5.................1 ........ 16279 .................Shaft, Impeller, SS
6.................1 ........ 16574 .................Washer, Plain, SS
7.................1 ........ 16252 .................Impeller, 3900
8.................1 ........ 15381 .................Plug, Impeller, 2" Meter
9.................2 ........ 16328-10 ............Adapter, Flange, 3" BSP
10 ...............1 ........ 16280 .................Flow Straightener
11 ...............8 ........ 40118 .................Screw, SCKT HD, 1/2-13 UN
12 ...............8 ........ 16386 .................Nut, Hex, Jam, 1/2-13, 18-8 S.S.
13 ...............6 ........ 12473 .................Screw, Hex Washer Head, #10-24
x 0.625
14 ......................... 60617 .................Meter Assy, 3" INLN, NPT,
Electronic, BRS BDY,
Paddlewheel
......... 60617-10 ............Meter Assy, 3" INLN, BSP,
Electronic, BRS BDY,
Paddlewheel
13
2
1
7
11
8
9
5
6
4
10
12
3
3
3
9
11
14
15
15 ...............1 ........ 19121 .................Meter Cable Assembly,
......... 19121-08 ............Meter Cable Assembly,
35 inch long with connector
......... 19121-09 ............Meter Cable Assembly,
100 inch long with connector
......... 19121-10 ............Meter Cable Assembly
304 inch long with connector
Item No. QTY Part No. Description
3 INCH STAINLESS STEEL METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 62078-01 ............Service Kit, 3 Inch Meter,
Standard Range
1 ........ 62078-02 ............Service Kit, 3 Inch Meter,
Extended Range
2.................1 ........ 61935-10 ............Meter Assy, 3 Inch, Inline,
Stainless Steel, NPT,
Standard Range
......... 61935-11 ............Meter Assy, 3 Inch, Inline,
Stainless Steel, NPT,
Extended Range
......... 61935-20 ............Meter Assy, 3 Inch, Inline,
Stainless Steel, BSP,
Standard Range
......... 61935-21 ............Meter Assy, 3 Inch, Inline,
Stainless Steel, BSP,
Extended Range
3.................1 ........ 19791 .................Meter Cable Assembly,
......... 19791-02 ............Meter Cable Assembly,
28 inch long with connector
......... 19791-04 ............Meter Cable Assembly,
100 inch long with connector
......... 19791-05 ............Meter Cable Assembly
304 inch long with connector
2
1
3
24 • Fleck 3200 NXT Fleck 3200 NXT • 25
