Pentair FLECK NXT Service Manual

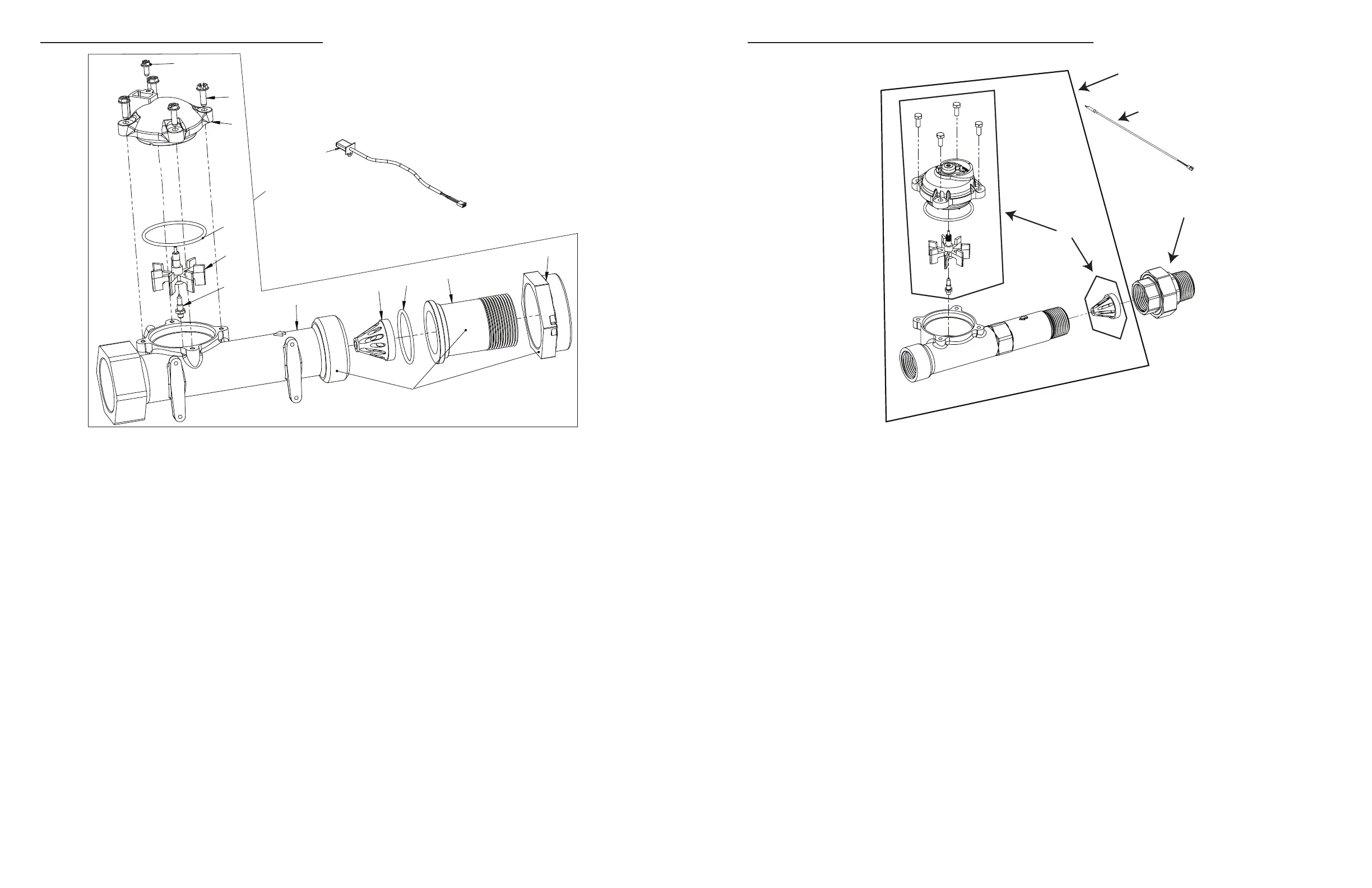

1-1/2 INCH BRASS METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 14716 .................Meter Cap Assy, Elec, Plastic
Paddlewheel
2.................1 ........ 13847 .................O-ring, -137
3.................1 ........ 17798 .................Screw, Slot Hex WSH HD
4.................4 ........ 12473 .................Screw, Hex WSH, 10-24 x 5/8
5.................1 ........ 17569-20 ............Body, Meter, BSP, 1-1/2" Quick
Connector Brass
6.................1 ........ 13882 .................Post, Meter Impeller
7.................1 ........ 13509 .................Impeller, Meter
8.................1 ........ 17542 .................Flow Straightener, 1-1/2"
9.................1 ........ 12733 .................O-ring, -132
10 ...............1 ........ 17544-10 ............Fitting, 1-1/2" Quick Connector,
BSP
11 ...............1 ........ 17543 .................Nut, Quick Connect 1-1/2"
12 ...............1 ........ 60614 .................Meter Assy, 1-1/2" Inline, NPT,
Electronic, Brass Body, PDL
......... 60614NP ............Meter Assy, 1-1/2" INLN, NPT,
ELEC, BRS BDY, NP, PDL
......... 60614-01 ............Meter Assy, 1-1/2" INLN, NPT,
ELEC, BRS BDY, PDL, 1" SLV
......... 60614-01NP .......Meter Assy, 1-1/2" INLN, NPT,
ELEC, BRS BDY, NP, PDL, 1" SLV
......... 60614-20 ............Meter Assy, 1-1/2" INLN, BSP,
ELEC, BRS BDY, PDL, 1" SLV
......... 60614-20NP .......Meter Assy, 1-1/2" INLN, BSP,
ELEC, BRS BDY, NP, PDL, 1" SLV
5
6
1
12
11
8
9
10
5
4
3
7
2
13
13 ...............1 ........ 19121 .................Meter Cable Assembly,
......... 19121-08 ............Meter Cable Assembly,
35 inch long with connector
......... 19121-09 ............Meter Cable Assembly,
100 inch long with connector
......... 19121-10 ............Meter Cable Assembly
304 inch long with connector
Item No. QTY Part No. Description
1-1/2 INCH STAINLESS STEEL METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 62049-01 ............Service Kit,
1 inch & 1-1/2 inch Meter,
Standard Range
1 ........ 62049-02 ............Service Kit,
1 inch & 1-1/2 inch Meter,
Extended Range
2.................1 ........ 61933-10 ............Meter Assy, 1-1/2 inch, Inline,
Stainless Steel, NPT, Standard
Range
1 ........ 61933-11 ............Meter Assy, 1-1/2 inch, Inline,
Stainless Steel, NPT, Extended
Range
1 ........ 61933-20 ............Meter Assy, 1-1/2 inch, Inline,
Stainless Steel, BSP, Standard
Range
1 ........ 61933-21 ............Meter Assy, 1-1/2 inch, Inline,
Stainless Steel, BSP, Extended
Range
3.................1 ........ 44024 .................Union, 1-1/2 inch, NPT
Optional on models with
electronic controls)
1 ........ 44025 .................Union, 1-1/2 inch, BSP
(Optional on models with
electronic controls)
4.................1 ........ 19791 .................Meter Cable Assembly,
......... 19791-02 ............Meter Cable Assembly,
28 inch long with connector
......... 19791-04 ............Meter Cable Assembly,
100 inch long with connector
......... 19791-05 ............Meter Cable Assembly
304 inch long with connector
1
3
2
4
20 • Fleck 3200 NXT Fleck 3200 NXT • 21
