Pentair FLECK NXT Service Manual

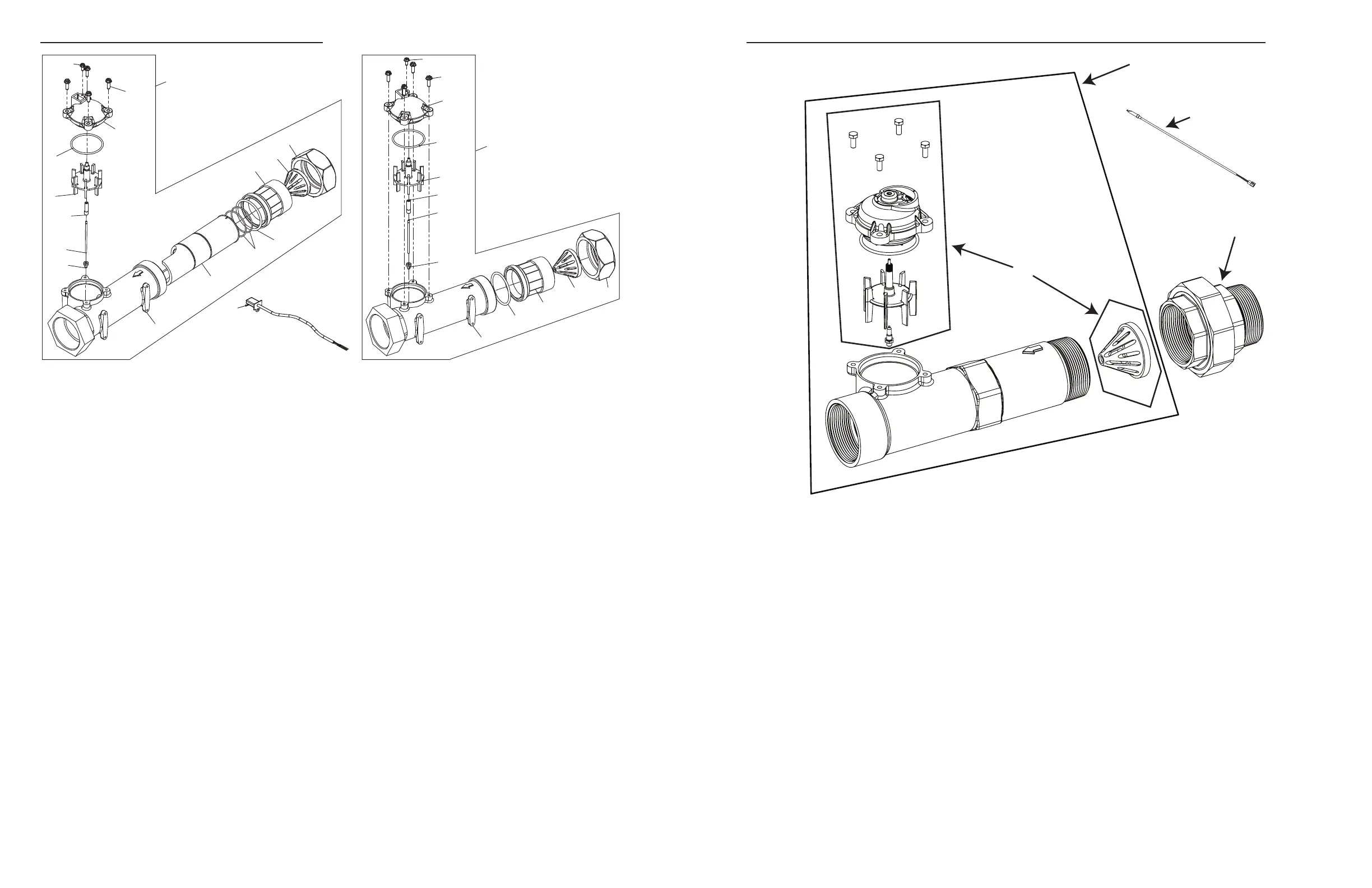

2 INCH BRASS METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 14456 .................Body, Meter 2"
1 ........ 14456-20 ............Body, Meter, 2", BSP,Metric
1 ........ 14456-20NP .......Body, Meter, 2", BSP,Metric, NP
2.................1 ........ 15432 .................Shaft, Impeller, SS
3.................1 ........ 15532 .................Seat, Impeller Shaft, Hex
4.................1 ........ 15374-01 ............Impeller, 2" Meter
5.................1 ........ 15381 .................Plug, Impeller 2" Meter
6.................1 ........ 17798 .................Screw, Slot Hex WSH HD
7.................1 ........ 13847 .................O-ring, -137
8........................... 14716 .................Meter Cap Assy, ELEC, Plastic,
Paddlewheel
9.................4 ........ 12473 .................Screw, Hex WSH, 10-24 x 5/8
4 ........ 21716 .................Screw, Hex Head, M5 x 16
10 ......................... 61439 .................Meter Sleeve w/O-ring, MACHD
11 ...............2 ........ 16080 .................O-ring, -032
12 ...............1 ........ 14680 .................Flow Straightener
13 ...............1 ........ 14568 .................Fitting, Nipple, 2"
1 ........ 14568-10 ............Fitting, Nipple, 2", BSP, Brass
1 ........ 14568-10NP .......Fitting, Nipple, 2", BSP, Brass,
NP
14 ...............1 ........ 14679 .................O-ring, -227
15 ...............1 ........ 14569 .................Nut, Quick Connect
16 ......................... 60615 .................Meter Assy, 2" INLN, NPT, ELEC,
BRS, PDL, 1.5" SLV
......... 60615NP ............Meter Assy, 2" INLN, NPT, ELEC,
NP, PDL, 1.5" SLV
......... 60615-20 ............Meter Assy, 2" INLN, BSP/MET,
ELEC, BRS, PDL, 1.5" SLV
......... 60615-20NP .......Meter Assy, 2" INLN, BSP/MET,
ELEC, NP, PDL, 1.5" SLV
1
7
15
16
13
3
2
5
4
6
8
11
12
9
10
14
12
16
13
14
1
3
2
5
4
6
8
9
7
17
18
17 ......................... 60616 .................Meter Assy, 2" INLN, NPT, ELEC,
BRS, PDL
......... 60616NP ............Meter Assy, 2" INLN, NPT, ELEC,
NP, PDL
......... 60616-20 ............Meter Assy, 2" INLN, BSP/MET,
ELEC, BRS, PDL
......... 60616-20NP .......Meter Assy, 2" INLN, BSP/MET,
ELEC, NP, PDL
18 ...............1 ........ 19121 .................Meter Cable Assembly,
......... 19121-08 ............Meter Cable Assembly,
35 inch long with connector
......... 19121-09 ............Meter Cable Assembly,
100 inch long with connector
......... 19121-10 ............Meter Cable Assembly
304 inch long with connector
Item No. QTY Part No. Description
2 INCH STAINLESS STEEL METER ASSEMBLY
Item No. QTY Part No. Description
1.................1 ........ 62048-01 ............Service Kit, 2 inch Meter,
Standard Range
1 ........ 62048-02 ............Service Kit, 2 inch Meter,
Extended Range
2.................1 ........ 61934-10 ............Meter Assy, 2 inch, Inline,
Stainless Steel, NPT,
Standard Range
1 ........ 61934-11 ............Meter Assy, 2 inch, Inline,
Stainless Steel, NPT,
Extended Range
1 ........ 61934-20 ............Meter Assy, 2 inch, Inline,
Stainless Steel, BSP,
Standard Range
1 ........ 61934-21 ............Meter Assy, 2 inch, Inline,
Stainless Steel, BSP,
Extended Range
3.................1 ........ 44026 .................Union, 2 inch, NPT (Optional on
models with electronic controls)
1 ........ 44027 .................Union, 2 inch, BSP (Optional on
models with electronic controls)
1
3
2
4
4.................1 ........ 19791 .................Meter Cable Assembly,
......... 19791-02 ............Meter Cable Assembly,
28 inch long with connector
......... 19791-04 ............Meter Cable Assembly,
100 inch long with connector
......... 19791-05 ............Meter Cable Assembly
304 inch long with connector
Item No. QTY Part No. Description
22 • Fleck 3200 NXT Fleck 3200 NXT • 23
