TAURUS™ VS Variable Speed Pump Installation and User’s Guide
Custom Schedules
To customize the run schedule for your Taurus™ VS
Variable Speed Pump, the pump must be stopped. Be
sure that the Start/Stop button LED is not illuminated.
Programming a Custom Schedule:
Note: When programming, the LED light next to the
parameter (“Speed”, “Time” and “Duration”) you are
setting will blink.
1. Stop the pump if it is running by pressing the
Start/Stop button.
2. Press the “1” button. The LED above the selected
SPEED will begin to blink and the “Speed”
parameter LED will blink while editing.
See Figure 7.
3. Use the “+” and “-” arrows to adjust the speed in
RPM for SPEED 1.
Note: Speed is adjusted up or down by increments
of 10 RPM.
4. Press the “1” button again and the display will
change to SPEED 1 start time. The “Time”
parameter LED will begin to blink. See Figure 8.
5. Use the “+” and “-” arrows to adjust the daily start
time for SPEED 1.
3000

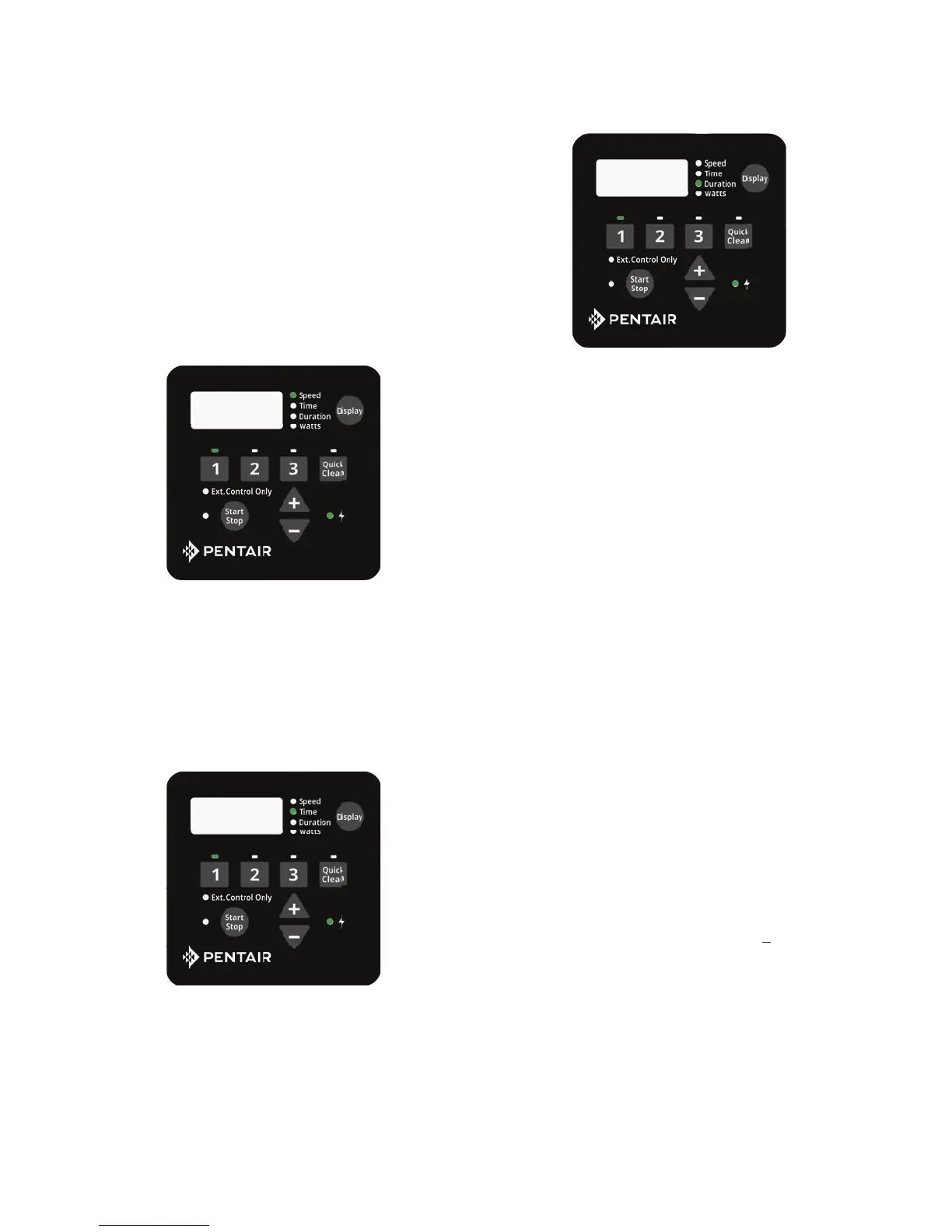

Figure 7: Setting Speed
8
:
00AM
Figure 8: Setting Start Time
6. Press the “1” button again and the display will
change to SPEED 1 duration. The “Duration”
parameter LED will begin to blink. See Figure 9.
7. Use the “+” and “-” arrows to adjust the duration for
SPEED 1 in hours and minutes.
Note: The duration parameter is adjusted in 15
minute increments.
8. Pressing the “1” button will continue to cycle
through these parameters, but the changes are
immediately saved as they are adjusted.
9. Press the “2” button. The LED above SPEED 2 will
begin to flash and the corresponding parameter
LED will flash while editing.
10. Use the “+” and “-” arrows to adjust the speed in
RPM for SPEED 2.
11. Press the “2” button again and the display will
change to SPEED 2 duration.
Note: SPEEDs 2 and 3 do not have a start time,
as they begin their duration immediately after the
previous SPEED finishes.
12. Use the “+” and “-” arrows to adjust the duration for
SPEED 2 in hours and minutes.
13. Repeat steps 9-12 to program SPEED 3 and
QUICK CLEAN.
Note: Remember that the duration allowed for
SPEED 3 will be limited to the remaining time in
a 24 hour day. Any time in the 24 hour day not
programmed into SPEEDs 1-3, the pump will
remain in a stationary state.
[ SPEED 1 + SPEED 2 + SPEED 3
<
24 Hours ]
14. Press the Start/Stop button and ensure the LED
is lit. The pump is now on and will run the custom
user-programmed schedule.
Note: If the pump has been stopped via the Start/
Stop button, the pump will not run until the pump
is turned back on by the Start/Stop button. If the
Start/Stop LED is illuminated then the pump is on
and will run the programmed schedule.
2
:
00
Figure 9: Setting Duration
