TAURUS™ VS Variable Speed Pump Installation and User’s Guide
Overall Ratings
Input Voltage 115-230 Vrms nominal
Input Current 13.2/12.0-11.5 A
Input Frequency Single phase, 50 or 60 Hz
Control Terminals 18-30V AC (24V AC+/- 20%) or
9-30V DC (12/24V DC +/- 20%)
Maximum Continuous Load 2.0 THP (Total Horse Power)
Speed Range 300 - 3450 RPM
Environmental Rating NEMA Type 3
Ambient Conditions
Storage -40ºC to +85ºC (-40ºF to +185°)
Operating 0ºC to +50ºC (+32°F to +122°F)
Humidity Relative 0 to 95 % non-condensing
10.62
269.7
12.52
318
9.33
237
7.74
196.6
6.32
160.5
9.00
228.7
14.26
362.3
10.07
255.7
8.73
221.7
7.71
195.9
Pump Specifications
0
10
20
30
40
50
60
70
80
90
100
0102030405060708090100 110120
Total Dynamic Head in Ft of Water
Volumetric Flow Rate in Gallons Per Minute

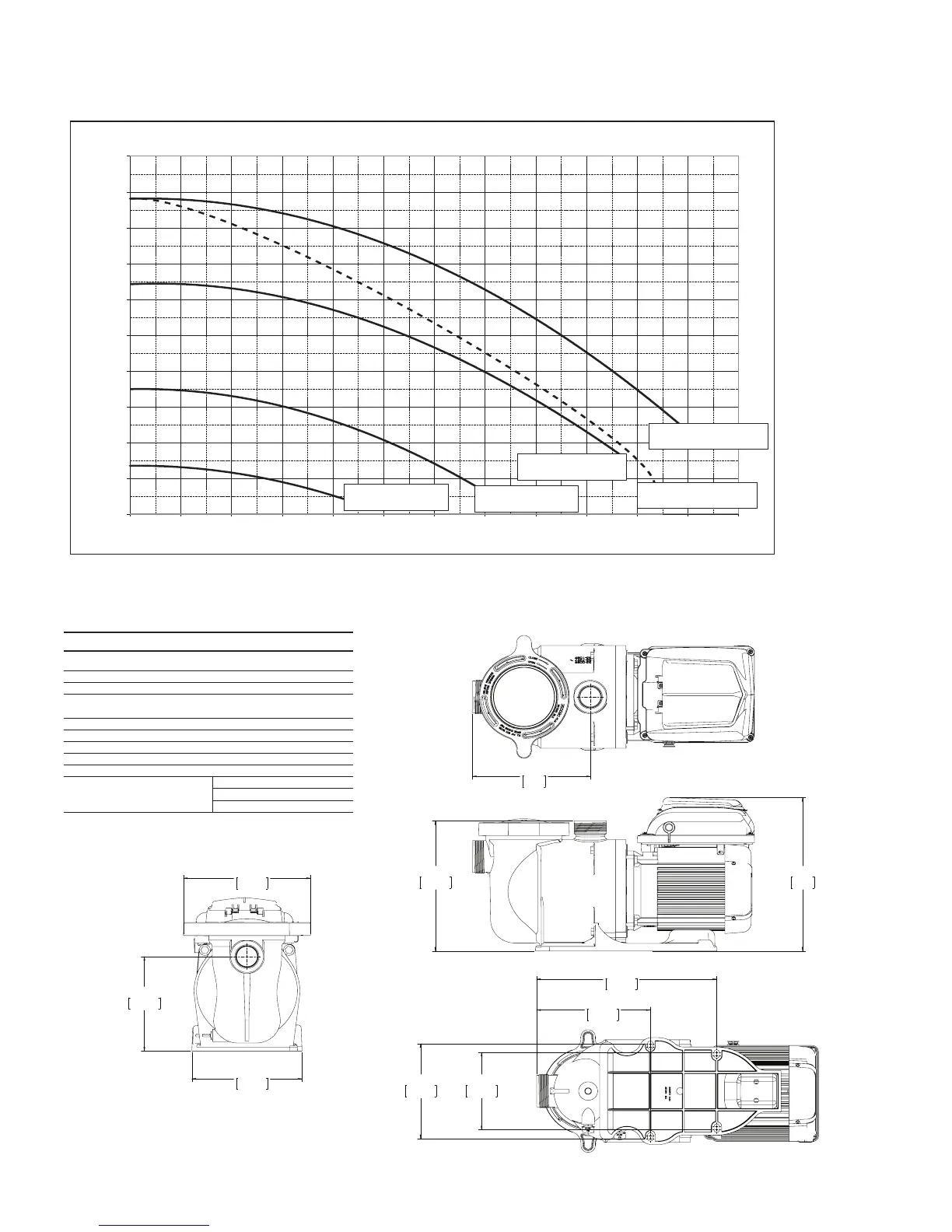

Taurus™ VS Performance Curves for Preset Speeds
Speed 1 / 3000 RPM
(110/230V)
Quick Clean / 3450 RPM
(230V Only)
Speed 3 / 2200 RPM
(110/230V)
Quick Clean / 3450 RPM
(110V Only)
Speed 2 / 1400 RPM
(110/230V)
Pump Dimensions
Pump Performance Curves

Pentair TAURUS VS Specifications
