TAURUS™ VS Variable Speed Pump Installation and User’s Guide
If power is connected to the Taurus™ VS Variable Speed Pump motor, pressing any of the following
buttons referred to in this section could result in the motor starting. Failure to recognize this could
result in personal injury or damage to equipment.

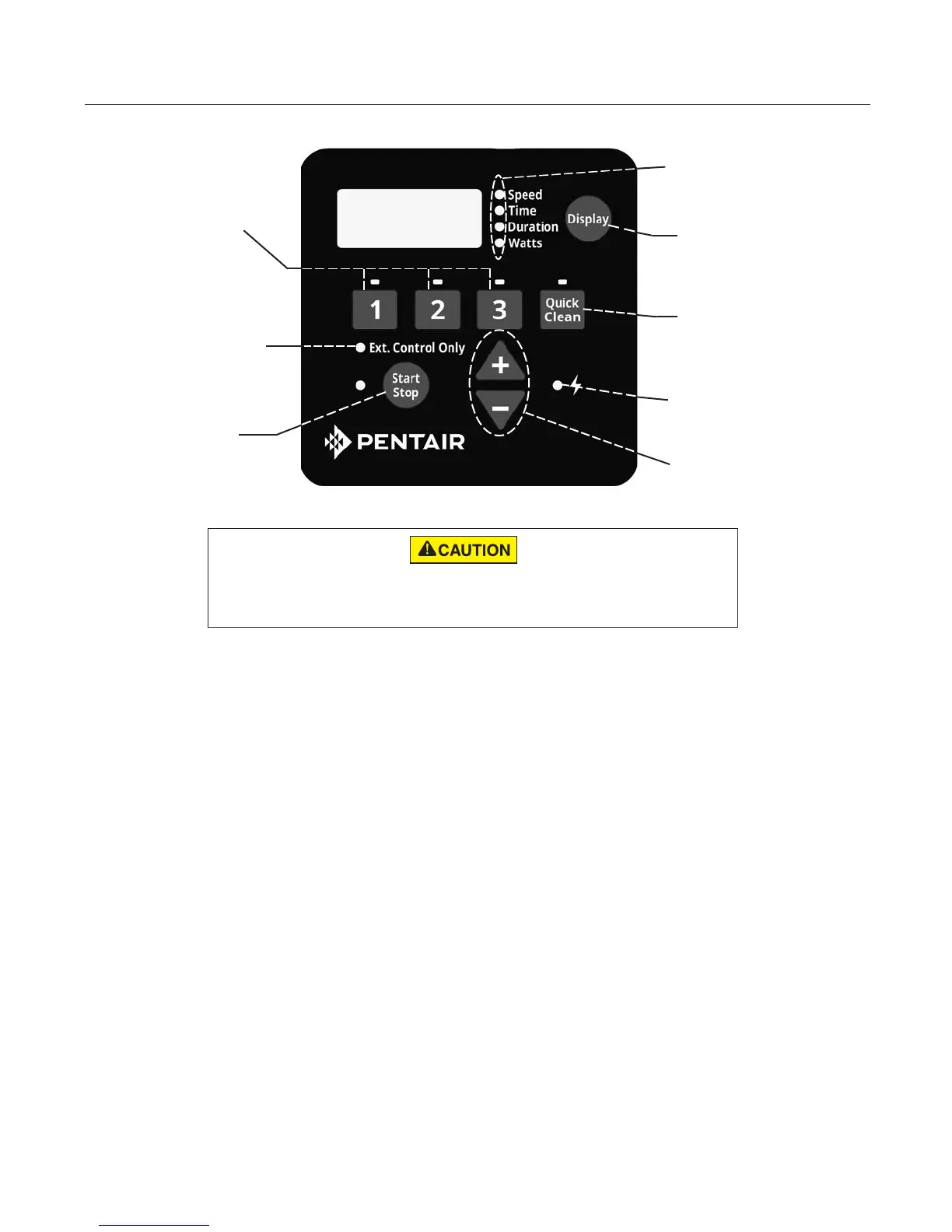

CONTROL PANEL OVERVIEW
Keypad Navigation
1. Speed Buttons - Used to select the run speed desired. The LED above the Speed Buttons will illuminate
when that speed is selected or is currently running. A flashing LED indicates that an External Control is
active on that speeds channel.
2. External Control Only LED Indicator - Indicates that the pump is operating in External Control Only
mode. When LED is illuminated the schedule is disabled and the only input is from the low voltage external
controls.
3. Start/Stop Button - Used to Start and Stop the pump. When the pump is stopped and the LED is not
illuminated, the pump is unable to run from any type of input.
4. Display Mode LED Indicators - An illuminated LED indicates the information being displayed on the screen
at any specific point. A flashing LED indicates that the parameter is currently being edited.
5. Display Button - Used to toggle between the different available display modes. This button is also used to
set the 24-hour clock and screen resolution.
6. Quick Clean Button - Used to run a selected speed and duration programmed for Quick Clean. When the
LED is illuminated the Quick Clean schedule is active.
7. Power LED Indicator - An illuminated LED indicates that there is live power being supplied to the pump.
8. “+” and “-” Arrows - Used to make on screen adjustments to the pump settings. The “+” arrow increases
the value of a given setting, while “-” decreases the value of a given setting. Pressing and holding down
either arrow button will increase or decrease the incremental changes faster.
(1) Speed Buttons
(2) External
Control Only
LED Indicator
(3) Start/Stop
Button
(7) Power LED
Indicator
(4) Display Mode
LED Indicators
(5) Display Button
(6) Quick Clean
Button
(8) “+” and “-”
Arrows
