178

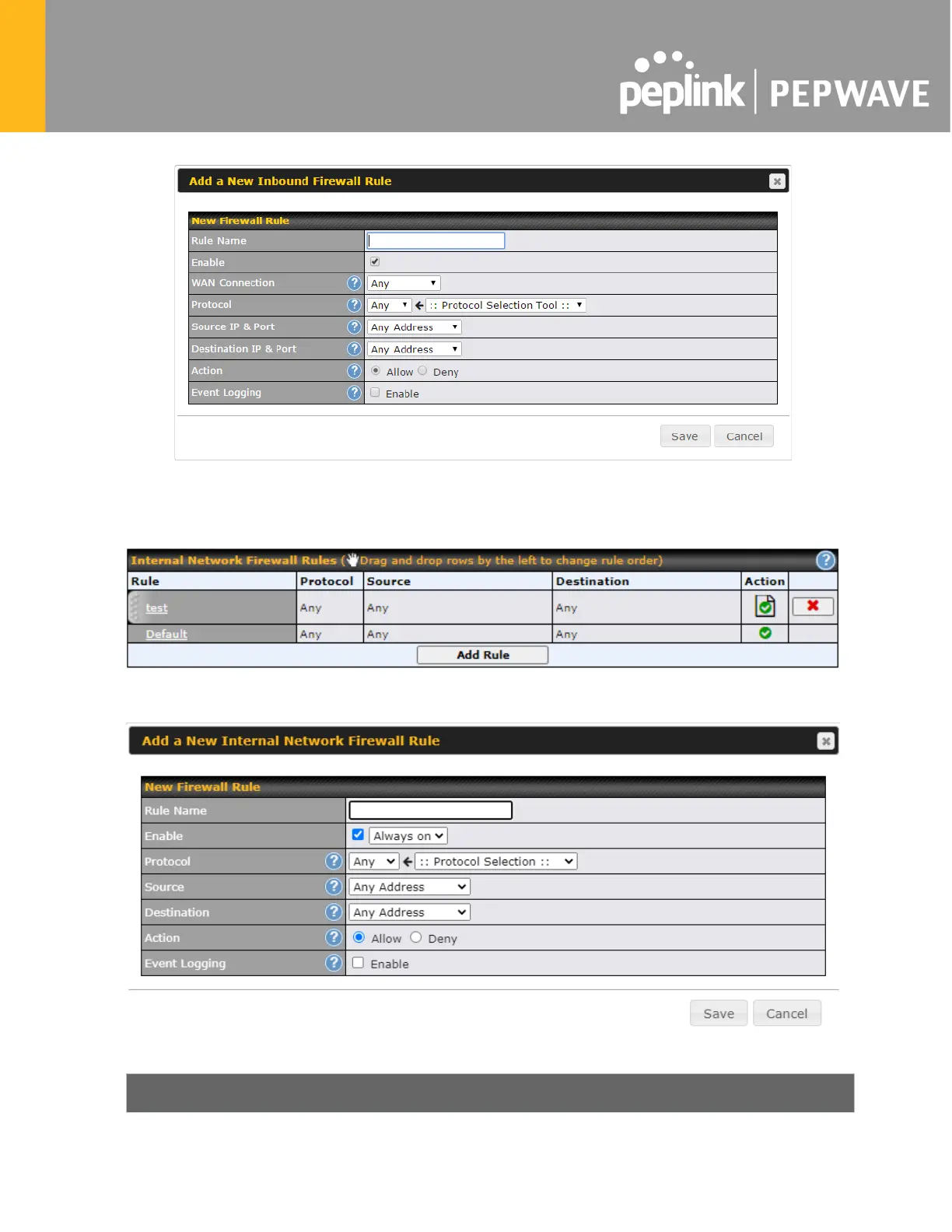

Internal Network firewall settings are located at Advanced>Firewall>Access Rules>Internal

Network Firewall Rules.

Click Add Rule to display the following window:

Inbound / Outbound / Internal Network Firewall Settings
