29 WAN Quality

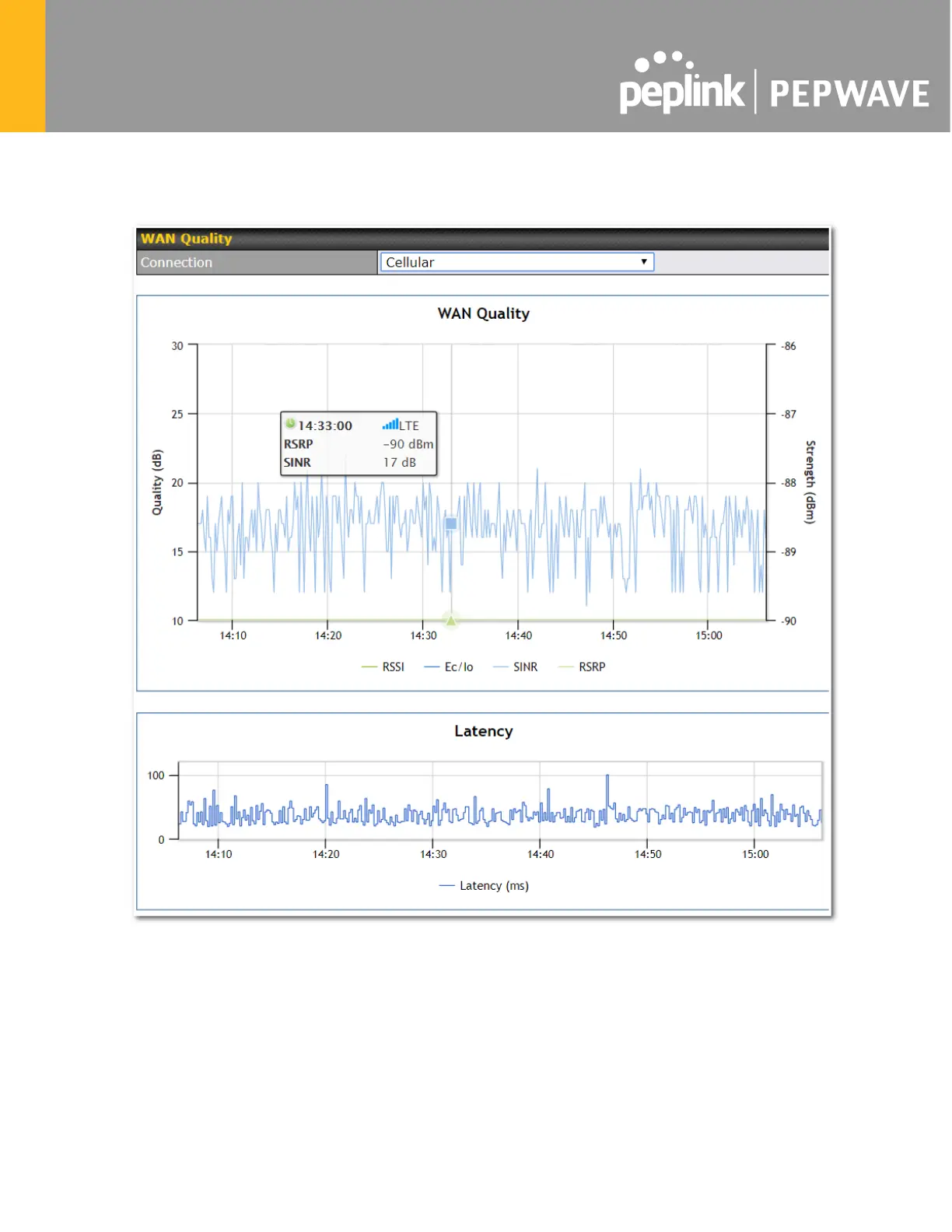

The Status > WAN Quality allow to show detailed information about each connected WAN

connection.

For cellular connections it shows signal strength, quality, throughput and latency for the past

hour.
