192

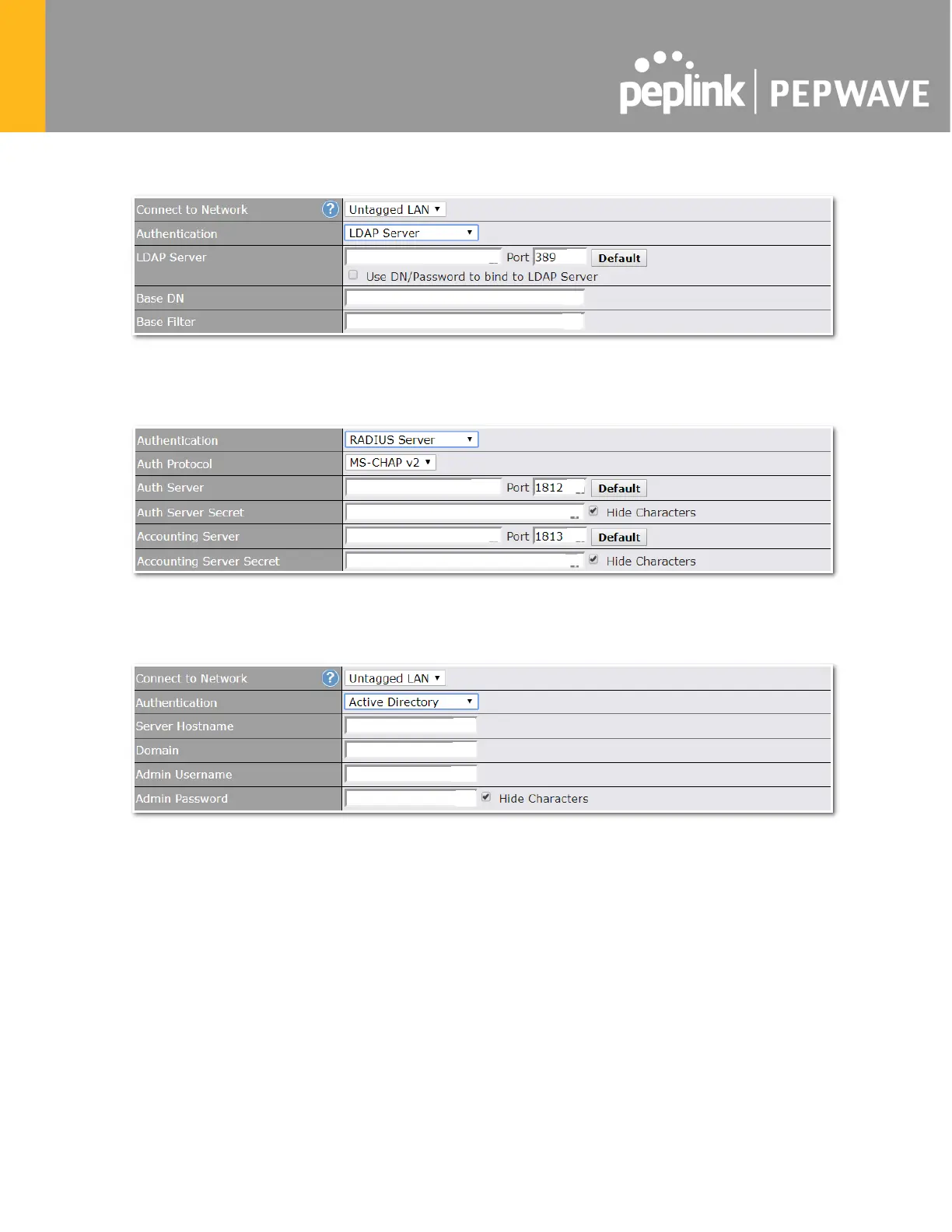

LDAP Server:

Enter the matching LDAP server details to allow for LDAP server authentication.

Radius Server:

Enter the matching Radius server details to allow for Radius server authentication.

Active Directory:

Enter the matching Active Directory details to allow for Active Directory server authentication.
