PerkinElmer Lambda 365 - Page 65

Accessories . 65

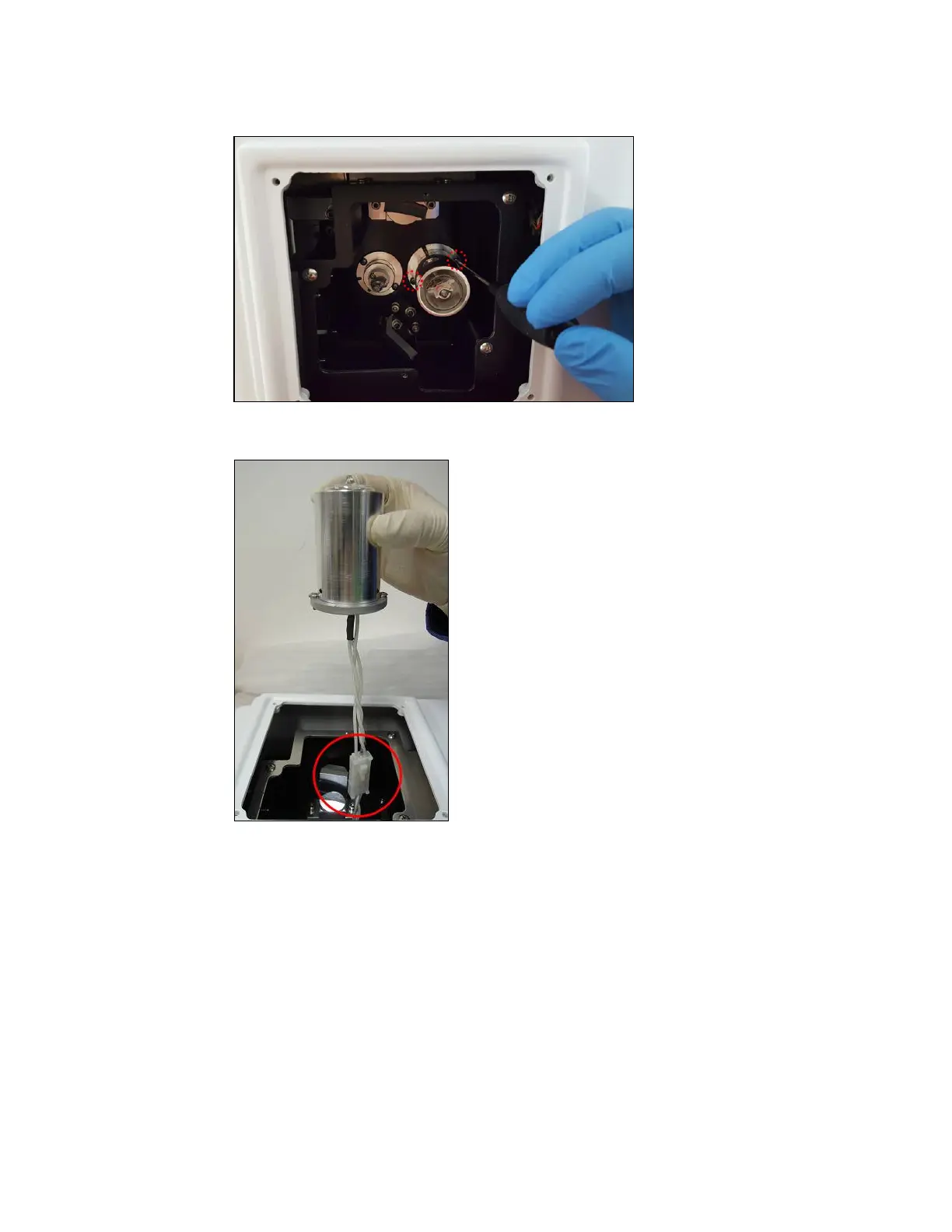

4. Loosen the two screws using a Phillips screwdriver. Note that there is no need to
take the screws out from the lamp module.
5. Carefully lift up the D2 lamp module and disconnect the D2 lamp cable connector.
6. Replace the D2 lamp module with a new one and reassemble the parts in reverse
order.
