PerkinElmer Lambda 365 - Page 69

Accessories . 69

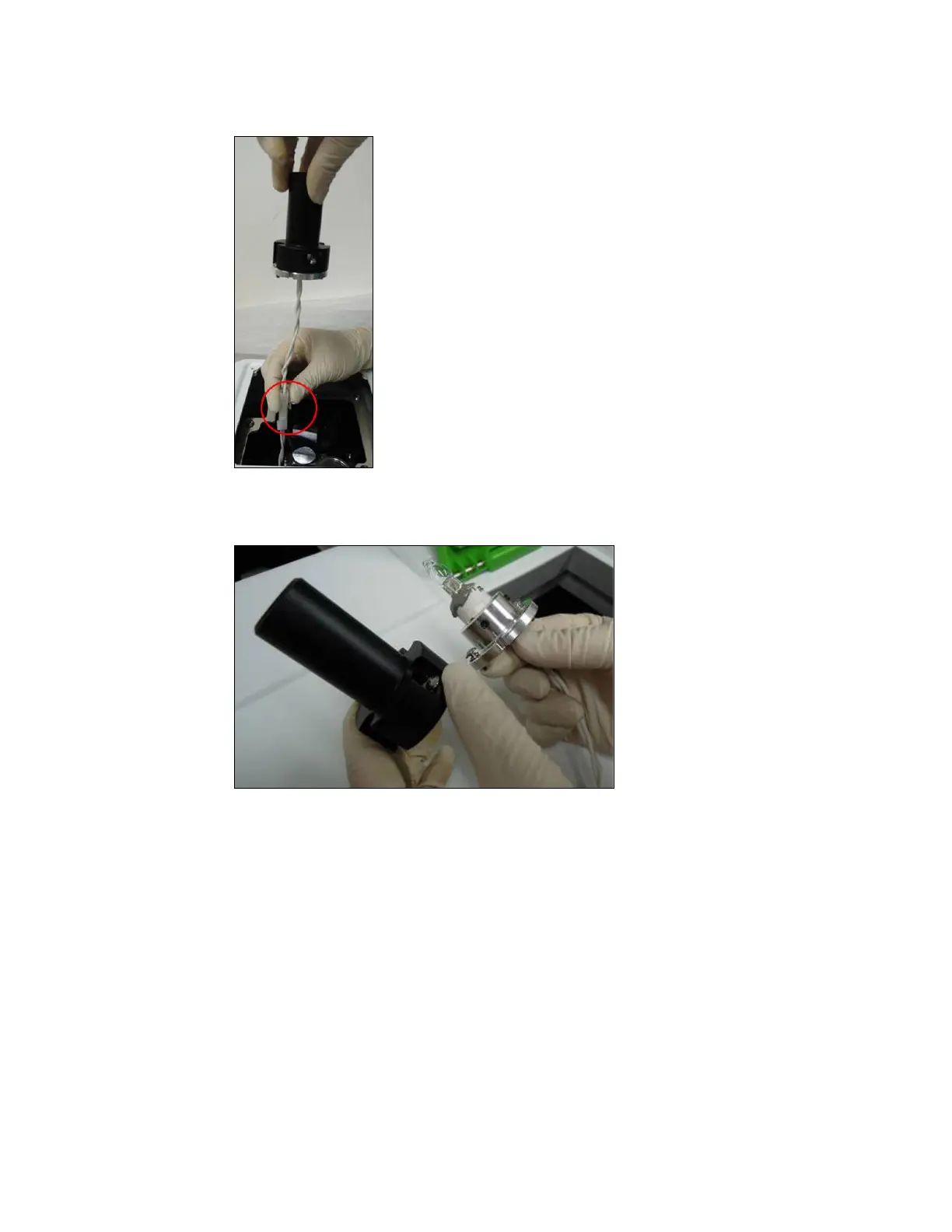

7. Carefully lift up the tungsten lamp changing tool which holds the tungsten lamp
module and disconnect the tungsten lamp cable connector.
8. Loosen the cap screw on the tungsten lamp changing tool (Part No. N4102048) and
separate the tungsten lamp from the tool.
9. Replace the tungsten lamp with a new one and reassemble the parts in reverse order.
