8. Connect the coolant inlet/outlet and N
2
gas tube between the Peltier Controller and the Peltier
Control Single Cell.
NOTE:
N
2
gas is not always required, so the gas and inlet hose are not supplied.

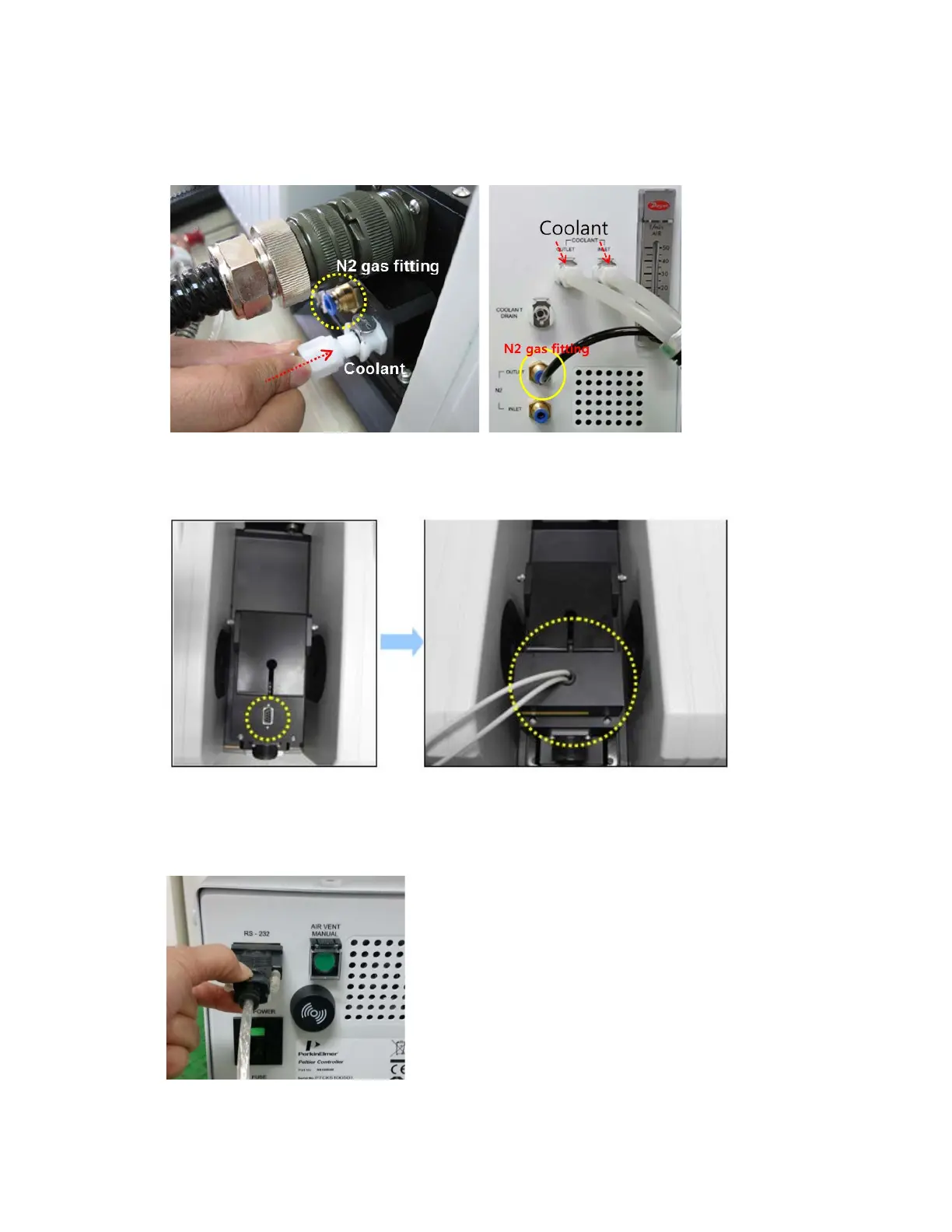

Figure 13 Connecting the coolant inlet/outlet and N
2
gas tube
9. Connect the temperature probe to the interface slot of the Peltier Control Single Cell.
Figure 14 Connecting the temperature probe
10. Connect the Peltier Controller with the PC via the RS-232 or USB to RS-232 cable. See Installing
the USB to RS-232 driver on page 15 when you use the USB to RS-232 cable.
Figure 15 Connecting the Peltier Controller
