4. Install a new filter element into the breather body
(3). Ensure the correct position of the element,
refer to illustration 80 . Align position (A) on the top
cap to position (B) on the filter element.

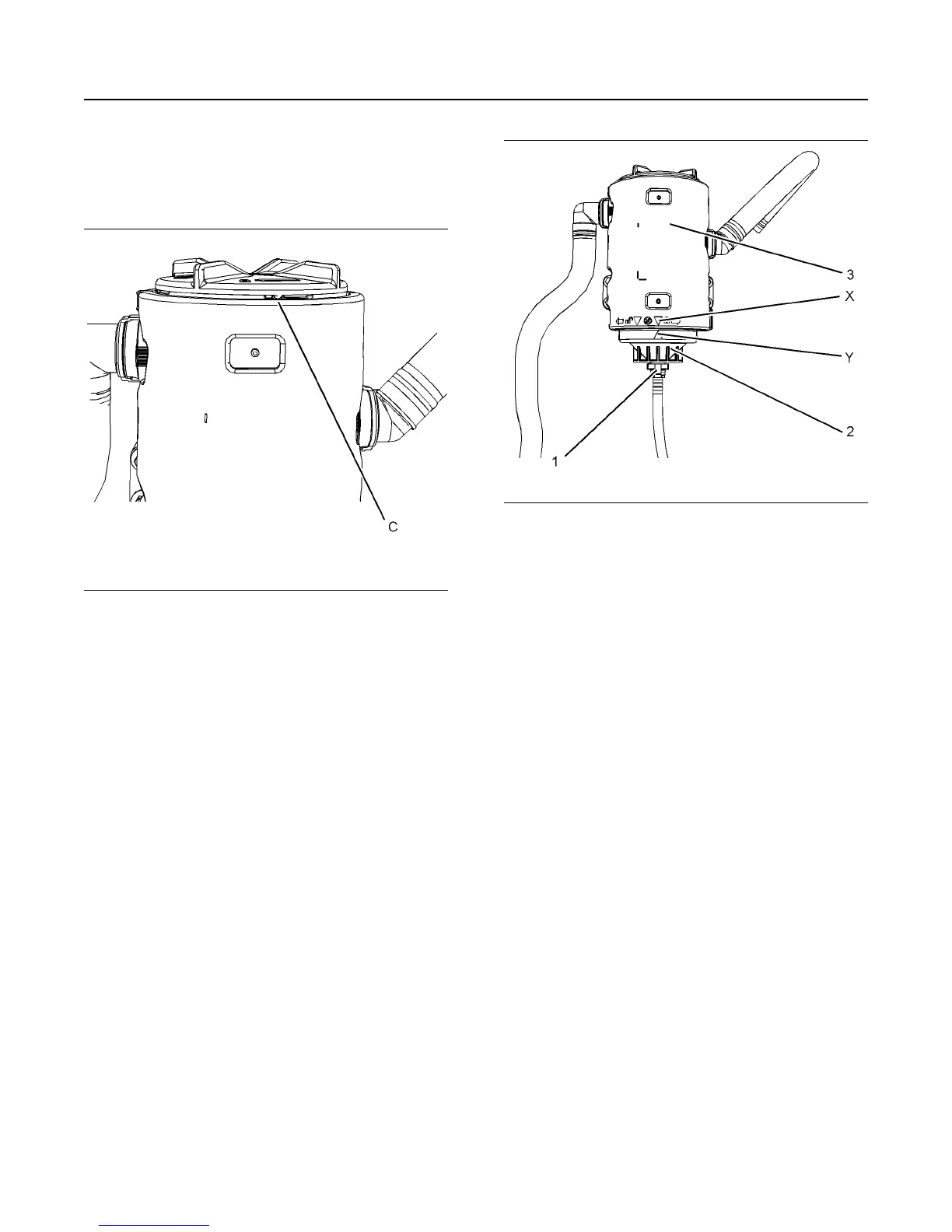

Illustration 81 g02346577
Typical example
5. Install the top cap (1). Rotate the top cap by hand
clockwise until the top cap locks into the locked
position (C) on the breather body.
6. Remove the container.
Bottom Service
Ensure that dirt cannot enter the breather assembly.
Illustration 82 g02346498
Typical example
(X) Alignment mark
(Y) Alignment mark
1. Ensure that the outside body of the breather
assembly is clean and free from damage. Place a
container under the breather.
2. Remove the tube connection (1). Ensure that dirt
cannot enter the tube connection. Note the position
of the alignment marks (X and Y). Rotate the
bottom cap (2) counterclockwise in order to
release the cap and the filter element (4) from the
breather body (3).
108 SEBU8732
Maintenance Recommendations
Engine Crankcase Breather Element - Replace
