Fan Clearance - Check
There are different types of cooling systems that can
be installed. Refer to the Original Equipment
Manufactory (OEM) for your application for more
information.
Ensure that the engine is stopped and allow 2
minutes before the battery disconnect switch is
turned off. This procedure will allow the Diesel
Exhaust Fluid (DEF) system to purged.
Ensure that the cooling system is full before checking
the fan tip clearance. The fan tip clearance is the
distance between the tip of the fan blade (2) and the
edge of the cover (1).

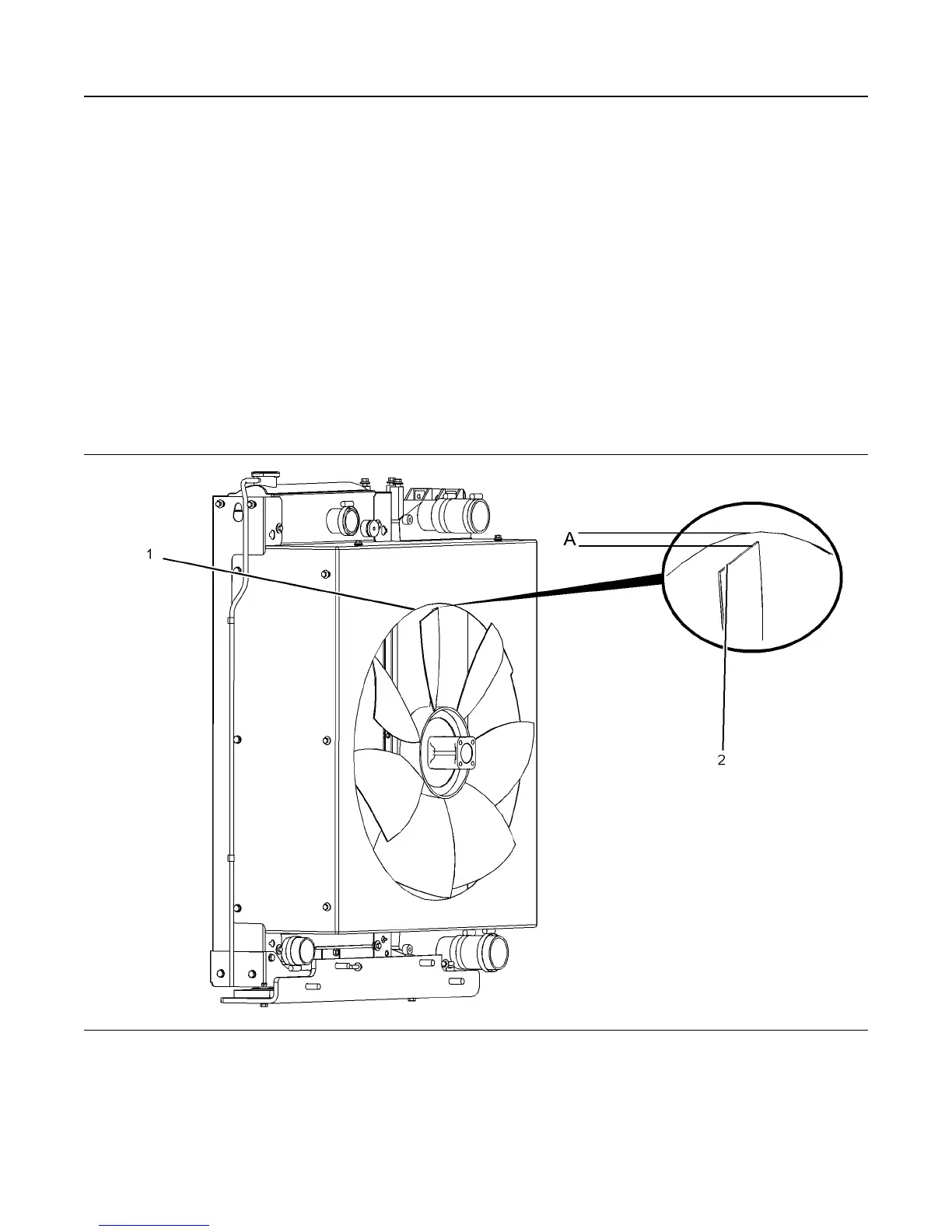

Illustration 89 g03414037
Typical example
The gap (A) must be checked in the vertical position
and in the horizontal position.
In the vertical position the gap can be checked at the
vertically top position or at the vertically bottom
position.
