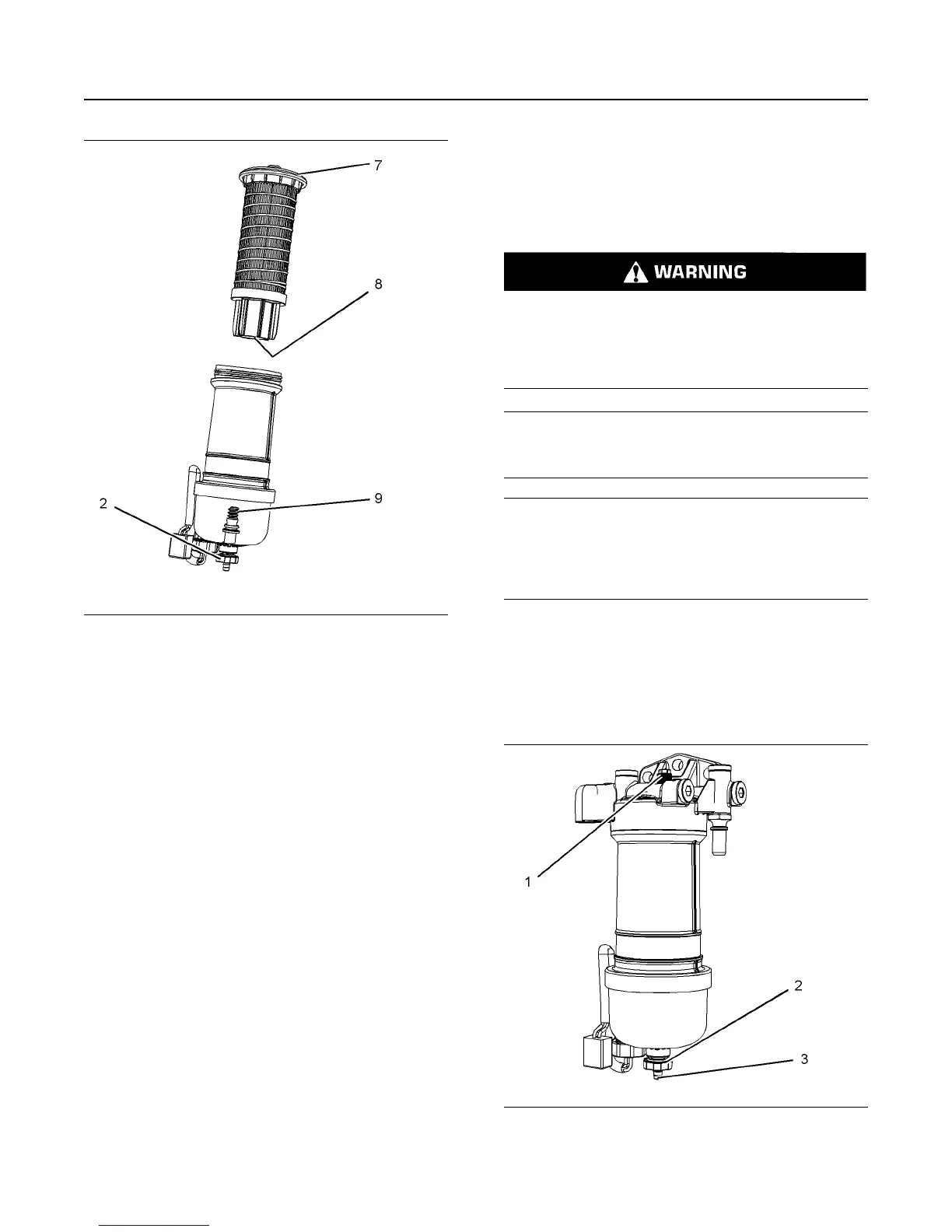

Illustration 93 g03086798
Typical example
1. Locate the thread in the new filter element (8) onto
the threads (9). Spin on the filter element and
tighten the drain valve (2) securely.
2. Lubricate the O ring seal (7) with clean engine oil.
Do NOT fill the bowl with fuel before the assembly
is installed.
3. Do not use a tool in order to install the filter
assembly. Tighten the filter bowl (6) by hand.
Install the filter bowl (6). Turn the filter bowl
clockwise until the filter bowl locks into position
against the stops.
4. Remove the container and dispose of the fuel in a
safe place.
5. The secondary filter element must be replaced at
the same time as the primary filter element. Also,
the in-line filter must be changed. Refer to the
Operation and Maintenance Manual, “Fuel System
Filter - Replace”.
i04925799
Fuel System Primary Filter/
Water Separator - Drain
Fuel leaked or spilled onto hot surfaces or electri-
cal components can cause a fire. To help prevent
possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
Ensure that the engine is stopped before any servic-
ing or repair is performed.
NOTICE
The water separator can be under suction during nor-
mal engine operation. Ensure that the drain valve is
tightened securely to help prevent air from entering
the fuel system.
1. Place a suitable container under the water
separator in order to catch any fluid that might spill.
Clean up any spilled fluid.
2. Ensure that the outer body of the filter assembly is
clean and free from dirt.
Illustration 94 g02148370
Typical example
SEBU8732 117
Maintenance Recommendations
Fuel System Primary Filter/Water Separator - Drain
