3. Install a suitable tube onto drain (3). Open the drain
valve (2). Rotate the drain valve counterclockwise.
Two full turns are required. Loosen vent screw (1).
4. Allow the fluid to drain into the container.
5. Tighten the drain valve clockwise by hand pressure
only. Remove the tube and remove the container.
6. Tighten the vent screw securely.
i05207493
Fuel System Secondary Filter -
Replace
Fuel leaked or spilled onto hot surfaces or electri-
cal components can cause a fire. To help prevent
possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
Ensure that the engine is stopped before any servic-
ing or repair is performed.
Refer to Systems Operation, Testing, and
Adjusting, “Cleanliness of Fuel System
Components” for detailed information on the
standards of cleanliness that must be observed
during ALL work on the fuel system.
Remove the Element
1. Turn the fuel supply valve (if equipped) to the OFF
position before performing this maintenance.
2. Place a suitable container under the fuel filter in
order to catch any fuel that might spill. Clean up
any spilled fuel. Clean the outside body of the filter
assembly.

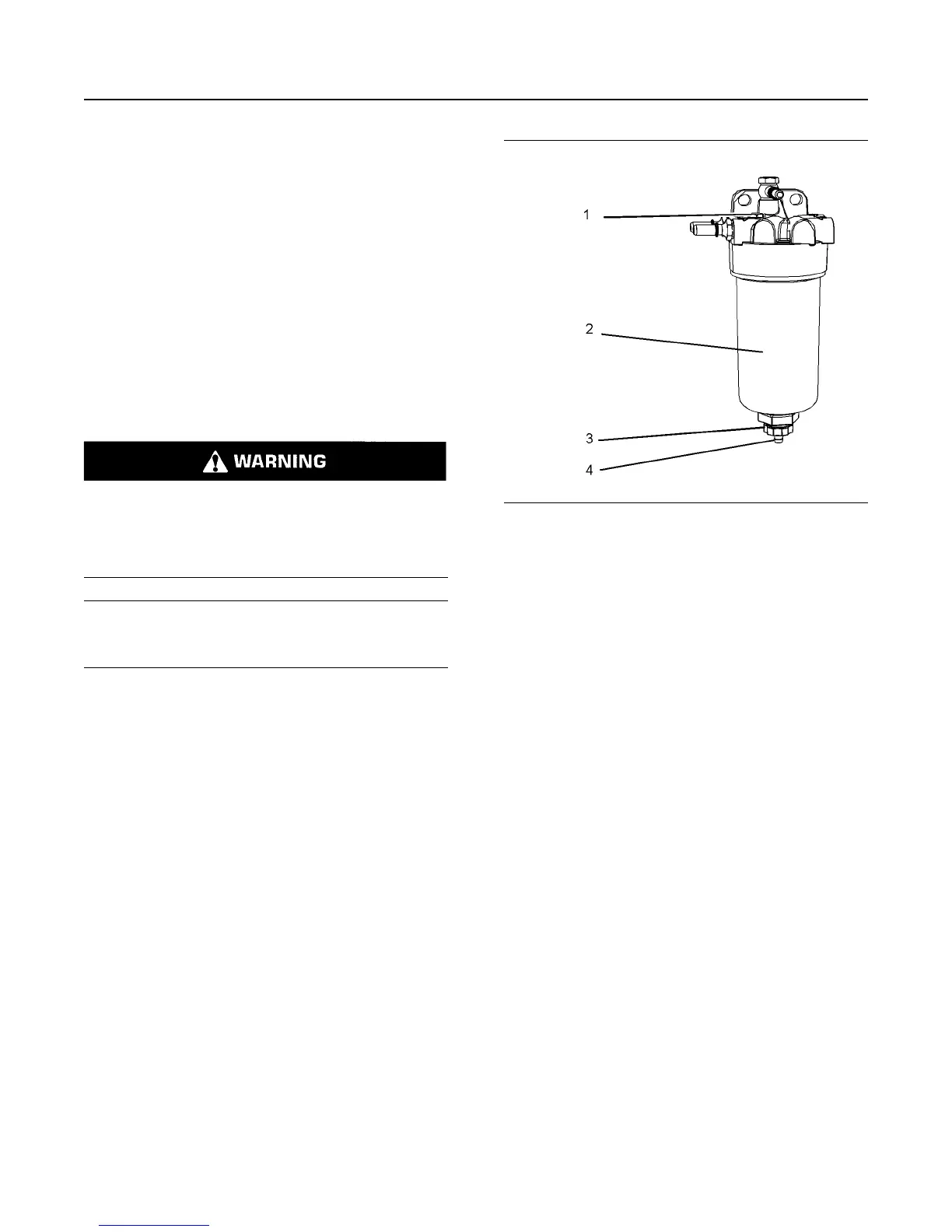

Illustration 95 g03088718
3. Install a suitable tube onto drain (4). Open the drain
valve (3). Rotate the drain valve counterclockwise.
Two full turns are required. Loosen vent screw (1).
4. Allow the fuel to drain into the container and
remove the tube.
5. Tighten the vent screw (1) securely.
6. Remove the filter bowl (2). Rotate the filter
assembly counterclockwise in order to remove the
assembly.
118 SEBU8732
Maintenance Recommendations
Fuel System Secondary Filter - Replace
