Engine Components

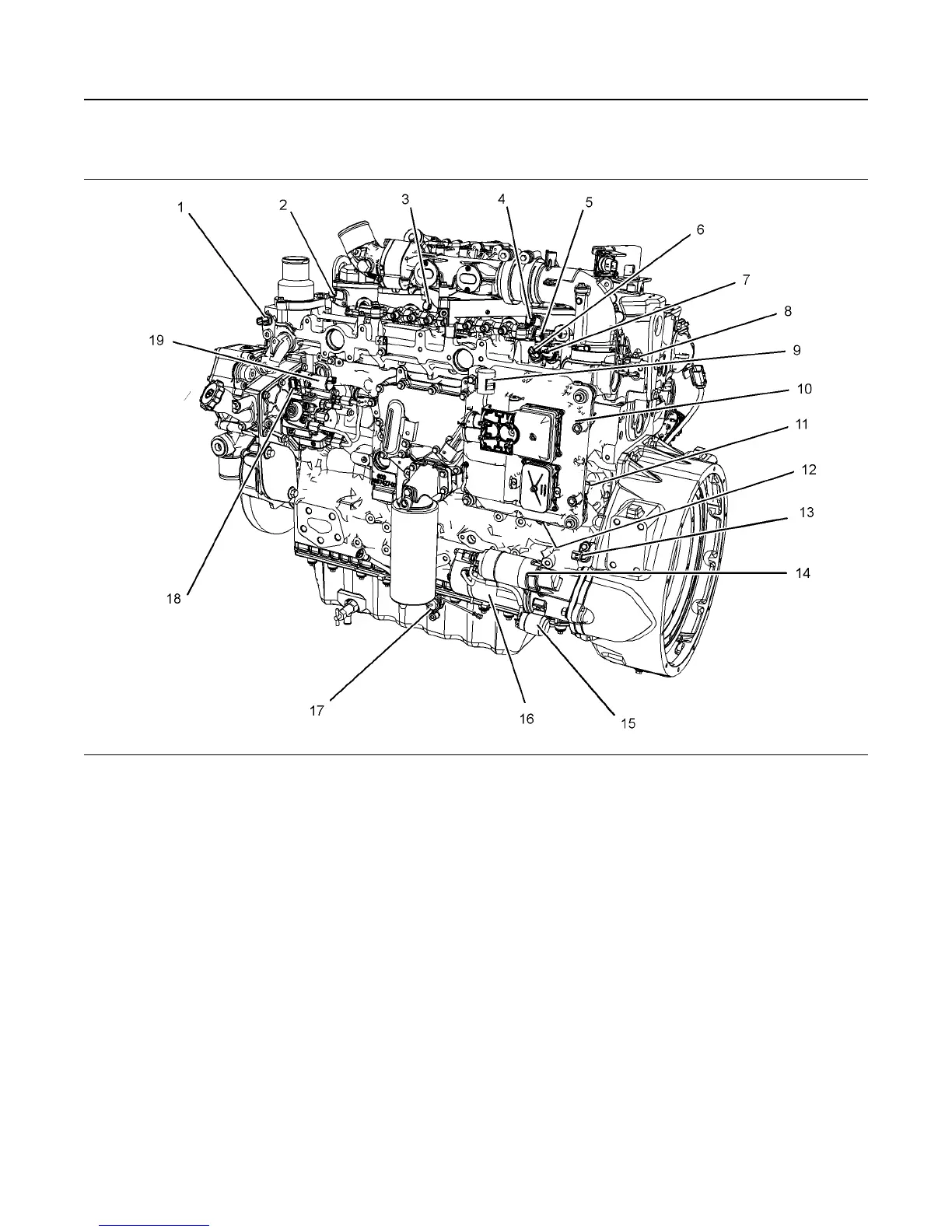

Illustration 37 g03389319
Typical example
(1) Coolant Temperature Sensor
(2) Injector Connector for Number One and
Two Injectors
(3) Injector Connector for Number three and
Four Injectors
(4) Injector Connector for Number Five and
Six Injectors
(5) Fuel Pressure Sensor
(6) Inlet Manifold Air Temperature Sensor
(7) Inlet Manifold Air Pressure Sensor
(8) Glow Plug Connection
(9) Diagnostic Connector
(10) Electronic Control Module
(11) Atmospheric Pressure Sensor
(Barometric Pressure sensor)
(12) Oil Pressure Sensor
(13) Primary Speed/Timing Sensor
(14) Starter Solenoid
(15) Starter relay
(16) Starting Motor
(17) Oil Level Switch
(18) Fuel Temperature Sensor
(19) Solenoid for High Pressure Fuel Pump
44
SEBU8732
Features and Controls
Sensors and Electrical Components
