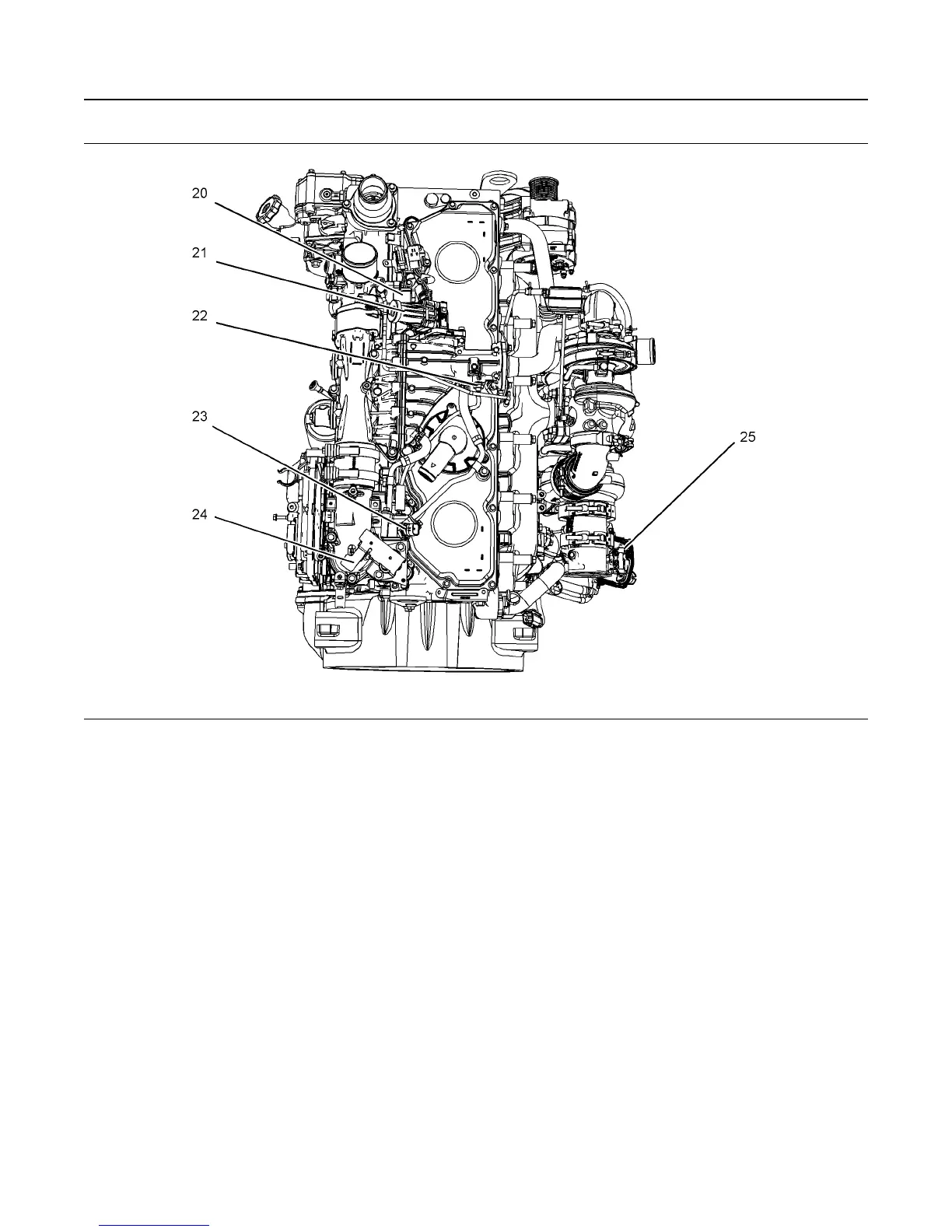

Illustration 38 g03389322
Typical example
(20) Wastegate Regulator
(21) Control Valve for the NOx Reduction
System (NRS)
(22) Temperature Sensor for the NRS
(23) Intake Pressure for the NRS
(24) Differential Pressure for the NRS
(25) Back Pressure Valve
SEBU8732
45
Features and Controls
Sensors and Electrical Components
