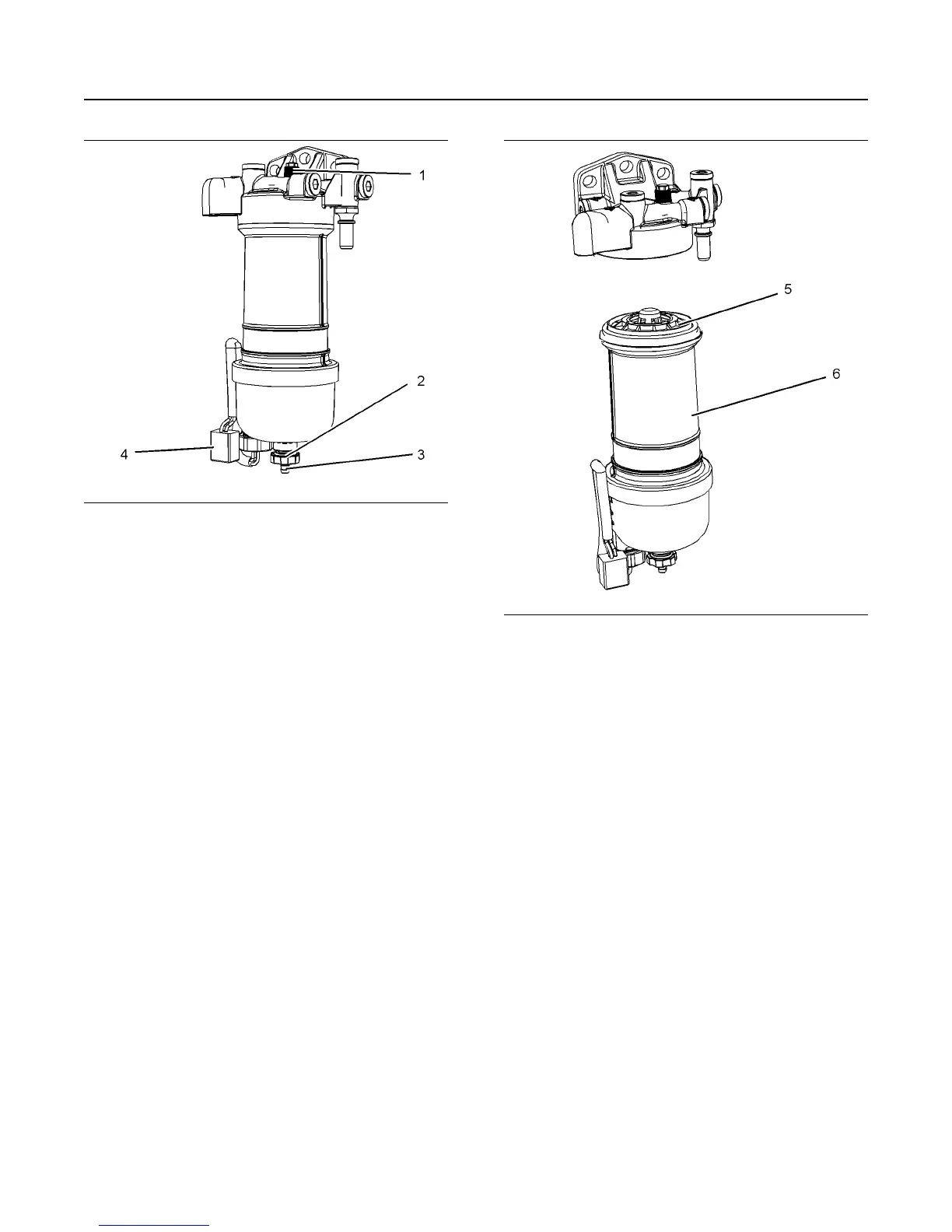

Illustration 91 g03086757
Typical example
3. Install a suitable tube onto drain (3). Open the drain
valve (2). Rotate the drain valve counterclockwise.
Two full turns are required.
4. Loosen the vent screw (1).
5. Allow the fuel to drain into the container. Remove
the tube from the drain valve.
6. Tighten the vent screw (1) securely . Remove the
wiring harness from connection (4).
7. Rotate filter bowl (6) counterclockwise and remove
the filter bowl from assembly.
Illustration 92 g02148402
Typical example
8. Rotate the filter element (5) counterclockwise and
remove the filter element . Clean the filter bowl.
Install the New Filter Element
116 SEBU8732
Maintenance Recommendations
Fuel System Primary Filter (Water Separator) Element - Replace
