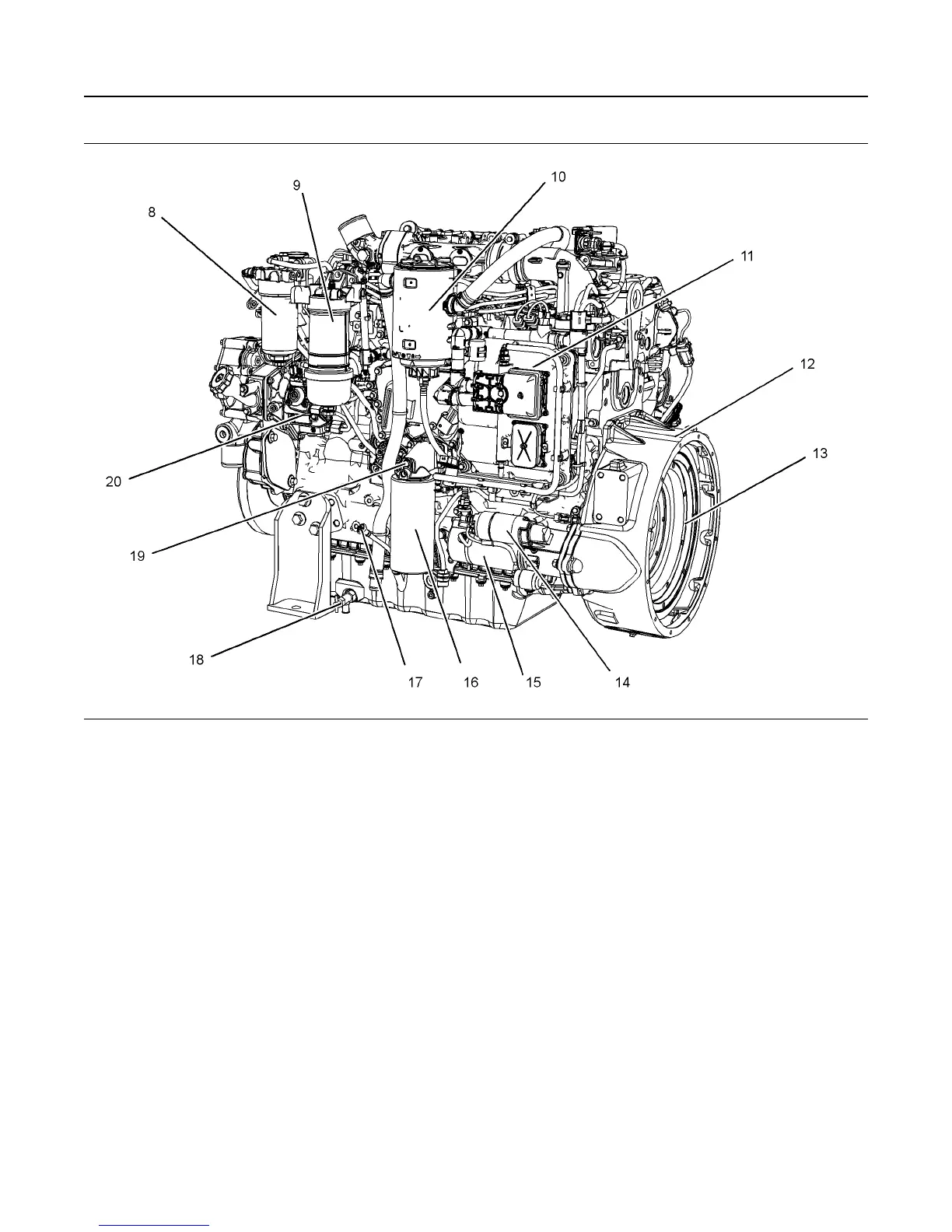

Illustration 17 g03387666
Typical example
(8) Secondary fuel filter
(9) Primary fuel filter
(10) Crankcase breather
(11) Engine Electronic Control Module
(ECM)
(12) Flywheel housing
(13) Flywheel
(14) Solenoid for starting motor
(15) Starting motor
(16) Oil filter
(17) Oil level gauge (Dipstick)
(18) Oil drain tap
(19) location for the oil sampling valve
(20) High-pressure fuel pump
22 SEBU8732
General Information
