94 Workshop Manual, TPD 1458E, issue 3 - Perkins Confidential: Green

400 Series

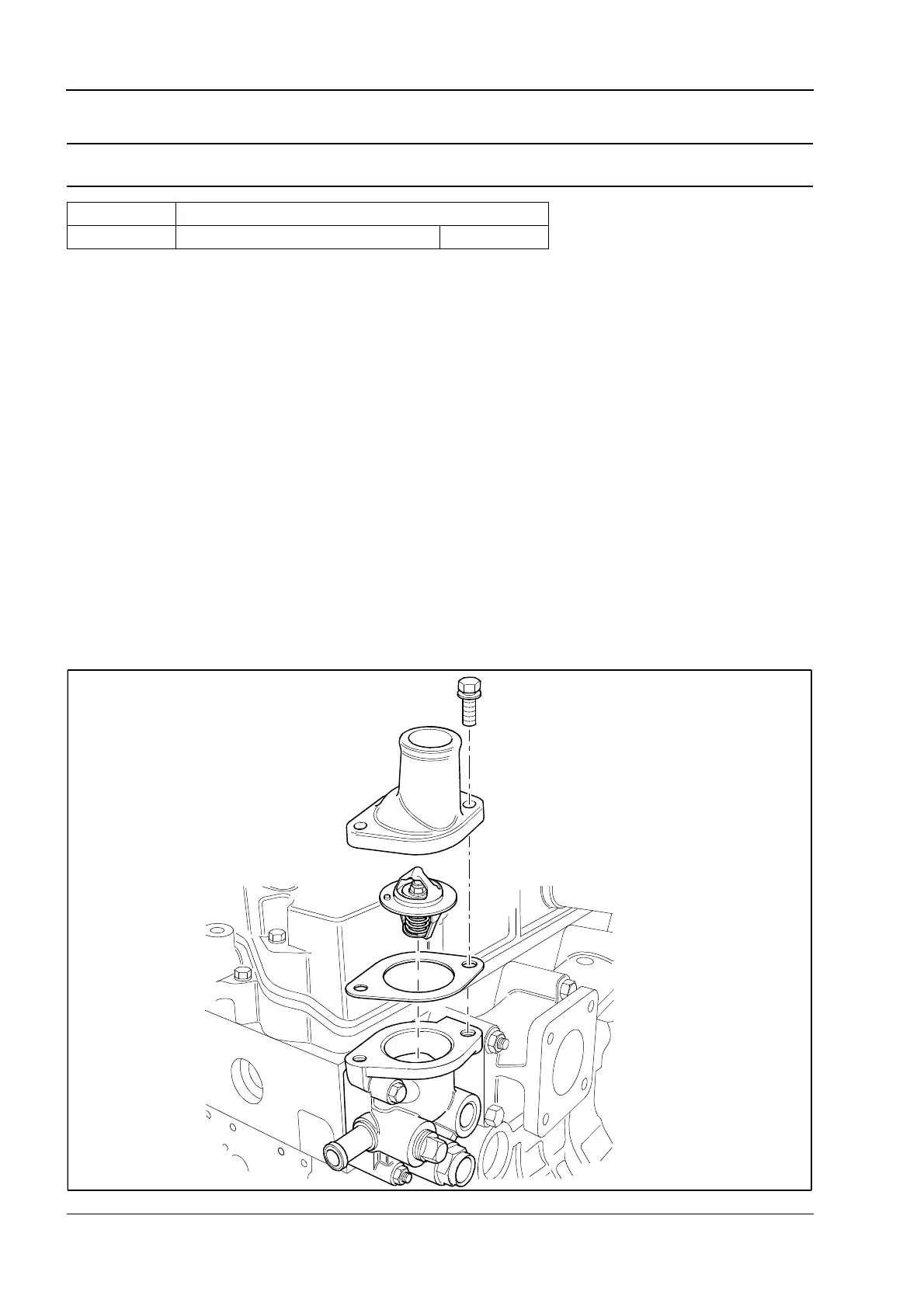

Thermostat

To remove and to fit Operation 12-4

Caution: Ensure that the thermostat is correctly seated in the thermostat housing.

Engine Torque Nm (lbf ft) kgf m

All models Setscrew 14 (10.3) 1,4

H1105
