46 Workshop Manual, TPD 1458E, issue 3 - Perkins Confidential: Green
400 Series
Crankshaft retaining bolts and crankshaft
To remove and to fit Operation 5-2
Cautions:
l Ensure that the lubricating oil pressure relief valve has been removed before the crankshaft is removed or
fitted.
l Ensure that the oil ways in the bearings align with the oil ways in the cylinder block.

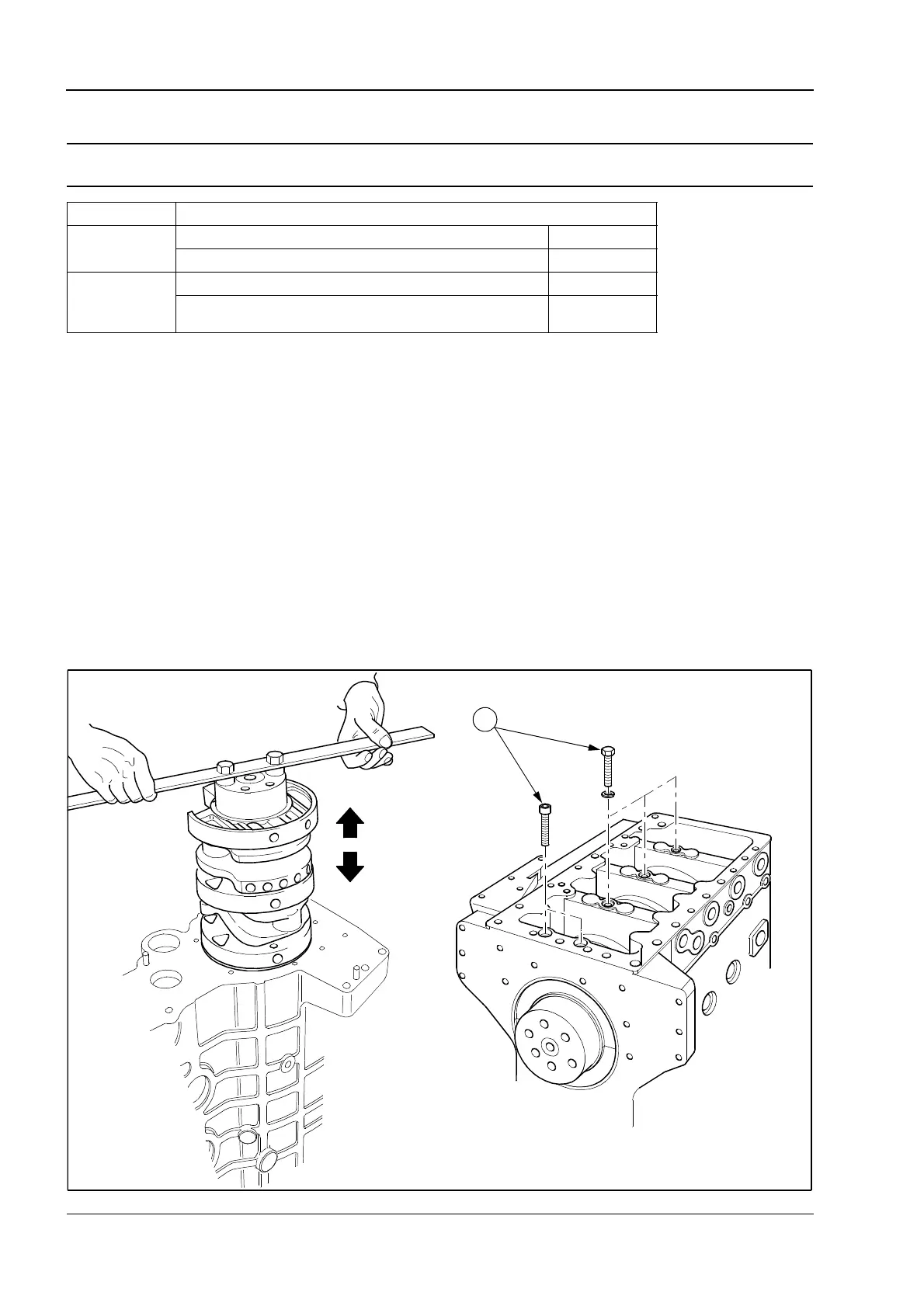

Remove the bearing holder setscrews (1) and lift the crankshaft assembly out vertically.
Note: If the crankshaft or crankshaft bearings are replaced the fuel adjustment screw must not be altered from
the original setting. The maximum no load speed must be checked after assembly.
Engine Torque Nm (lbf ft) kgf m
403C-11
Crankshaft bearing holder setscrew 27 (19.9) 2,7
Crankshaft bearing holder to block (allen screws) 27 (19.9) 2,7
403C-15
404C-22
404C-22T
Crankshaft bearing holder setscrew 52 (38.3) 5,2
Crankshaft bearing holder to block (allen screws) 27 (19.9) 2,7
