16 Workshop Manual, TPD 1458E, issue 3 - Perkins Confidential: Green
400 Series
s

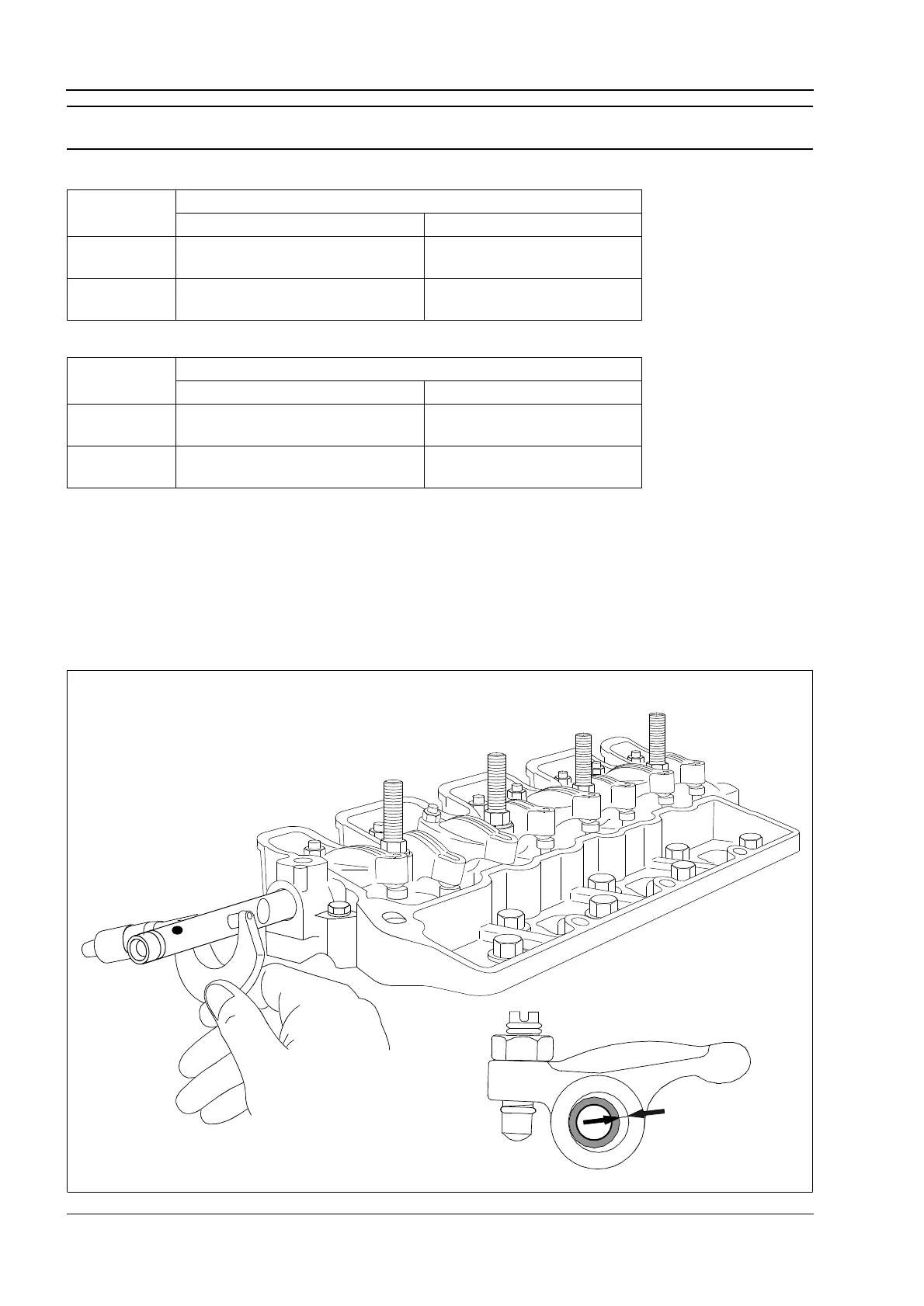

To inspect Operation 3-4
Rockershaft diameter
Rocker shaft to rocker lever clearance
Engine
Diameter mm (in)
Standard Service limit
403C-11
403C-15
11,65 - 11,67 (0.4587 - 0.4595) 11,57 (0.4555)
404C-22
404C-22T
14,95 - 14,97 (0.5886 - 0.5894) 14,87 (0.5854)
Engine
Clearance mm (in)
Standard Service limit
403C-11
403C-15
0,032 - 0,068 (0.00126 - 0.00268) 0,2 (0.008)
404C-22
404C-22T
0,030 - 0,093 (0.00120 - 0.00366) 0,2 (0.008)
H1037
