190 KENR9126
Troubleshooting Section
g01805334

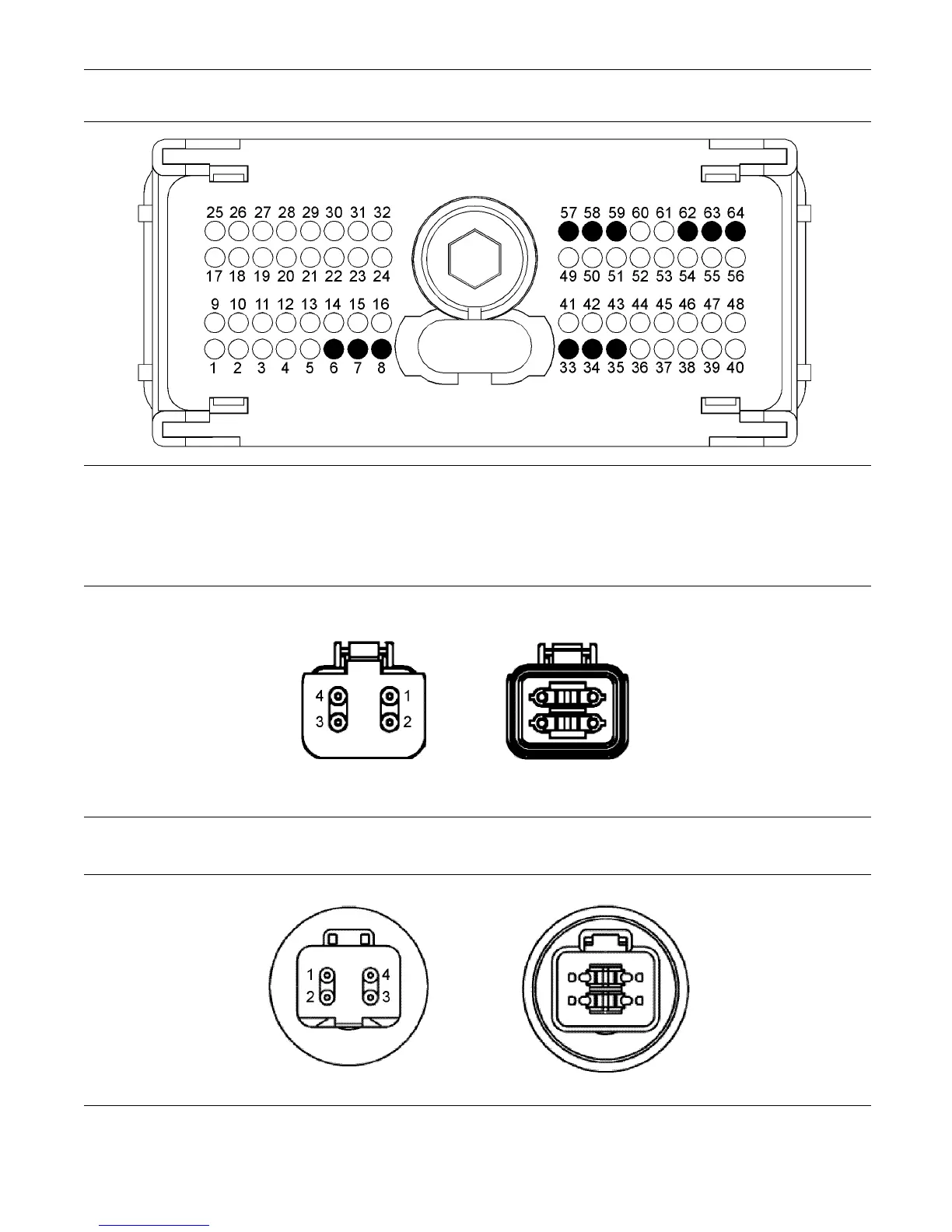

Illustration 78
P2 pin c onnections for the engine
(57) Injector Cylinder (Num ber 1)
(35) Injector C ylinder (Number 1 Return)
(58) Injector Cylinder (Num ber 2)
(34) Injector C ylinder (Number 2 Return)
(59) Injector Cylinder (Number 3)
(33) Injector Cylinder (Number 3 Return)
(64) Injector Cylinder (Number 4)
(8) Injector Cylinder (Number 4 Return)
(63) Injector Cy linder (Number 5)
(7) Injector Cylinder (Number 5 Return)
(62) Injector Cy linder (Number 6)
(6) Injector Cylinder (Number 6 Return)
g01245543
Illustration 79
Typical exam ple of the fuel injector harness connector
g01245544
Illustration 80
Typical exam ple of the connector on the va lve mech anism cover
