202 KENR9126
Troubleshooting Section
g02192011

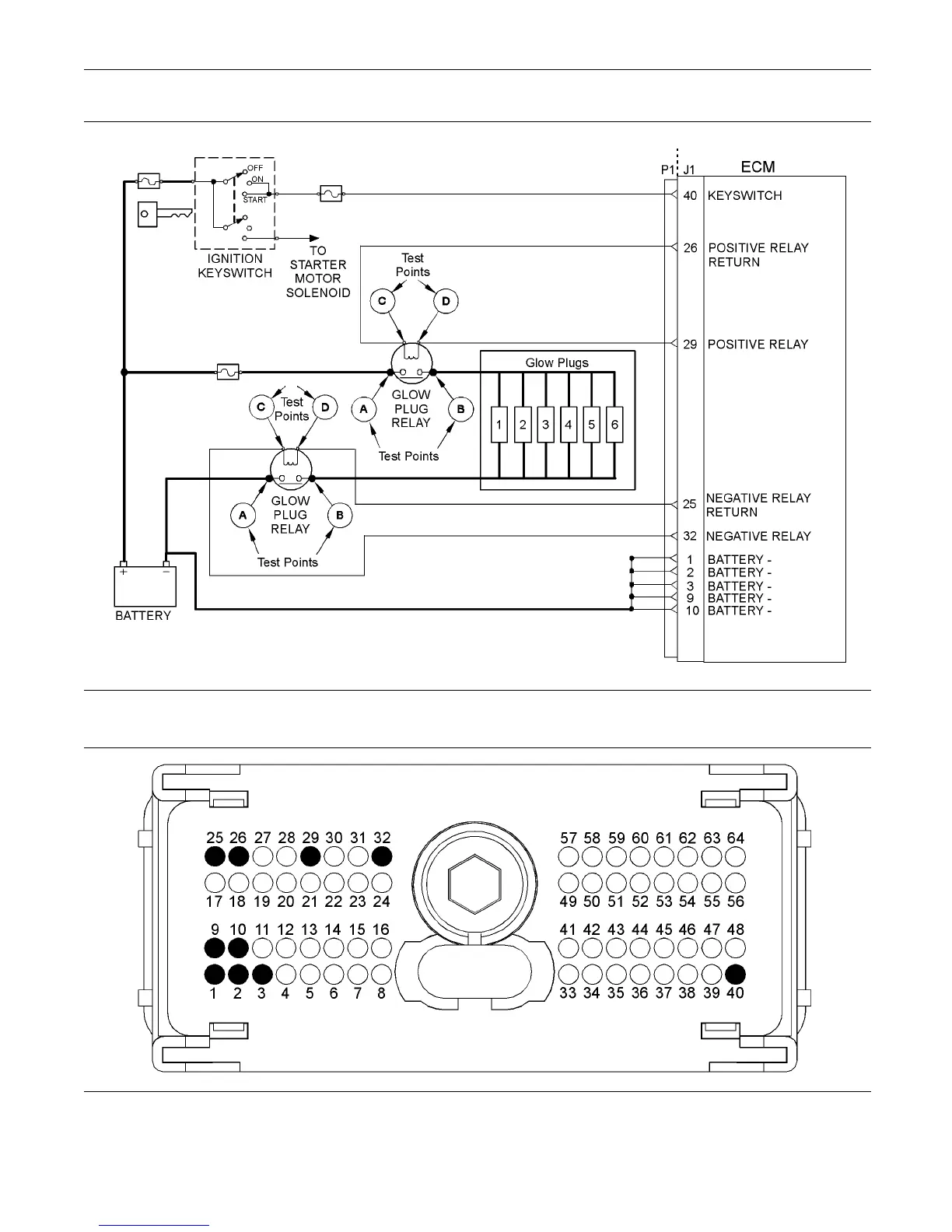

Illustration 85
Typical s chem atic for the starting aid switch
g02192012
Illustration 86
Ty
pical view of the pin locations on the P1 connector
(1) Ground (GND)
(2) Ground (GND)
(3) Ground (GND)
(9) Ground (GND)
(10) Ground (GND)
(25) Negative relay return
(26) Positive relay return
(29) P ositive relay
(32) Ne gative relay
(40) Keyswitch
