Pfaff 1193 - Adjusting the V-Belt Tension; Fitting the Upper V-Belt Guard

Installation and commissioning
8 - 2
8.01.02 Adjusting the V-belt tension
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
hangar 2.
● Tighten nuts 1.

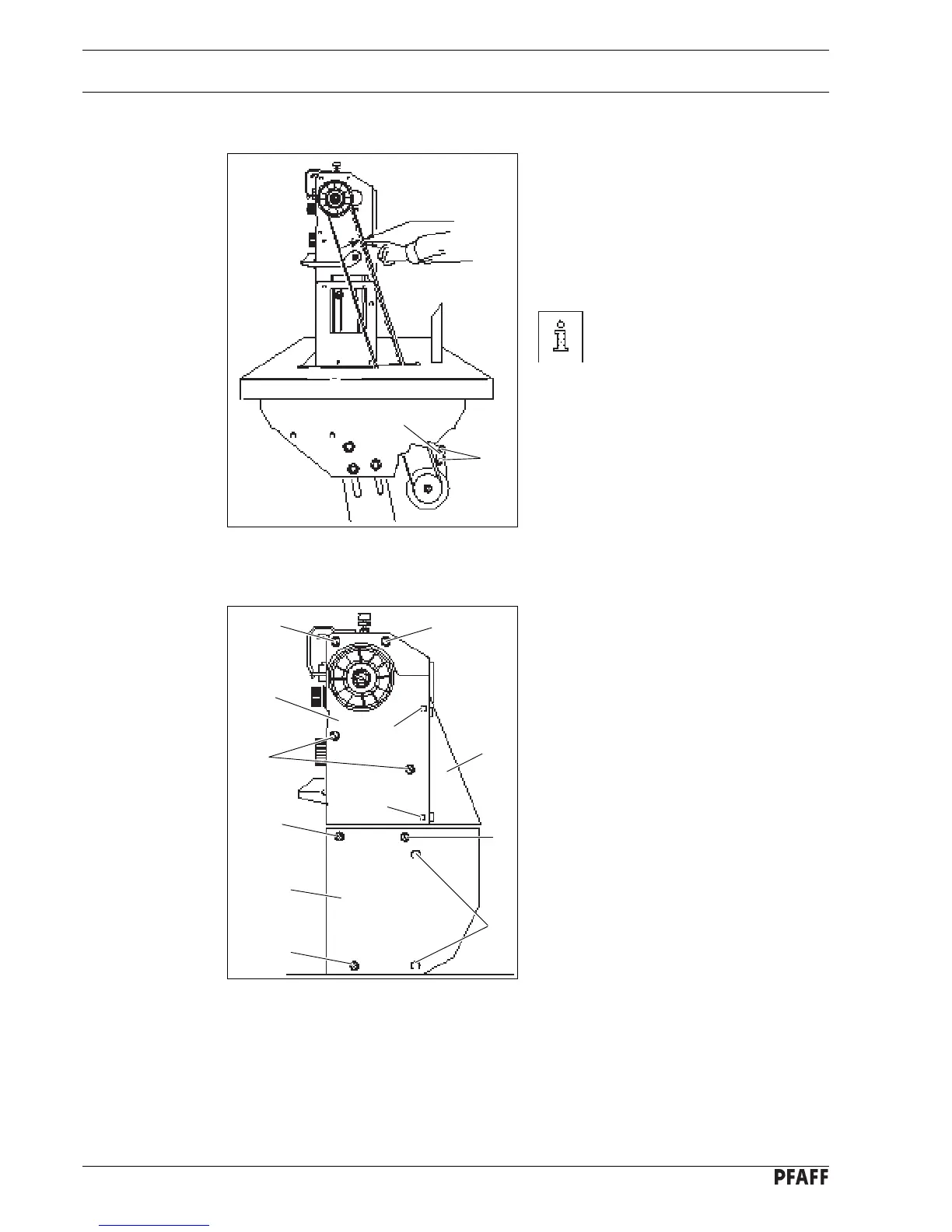

Fig. 8-02 shows an illustration
of a Quick motor. If another
motor is used, proceed as
described in the motor’s
instruction manual.
Fig. 8 - 02
8.01.03 Fitting the upper V-belt guard
● With screws 2 attach belt guard section
1 to belt guard section 3 from the inside.
● Attach belt guard section 3 to the
machine housing with the screws 4.
● Attach belt guard section 5 to the
machine housing with screws 6 and
screws 7 (accessible through the drill
holes).
Fig. 8 - 03
